2-46

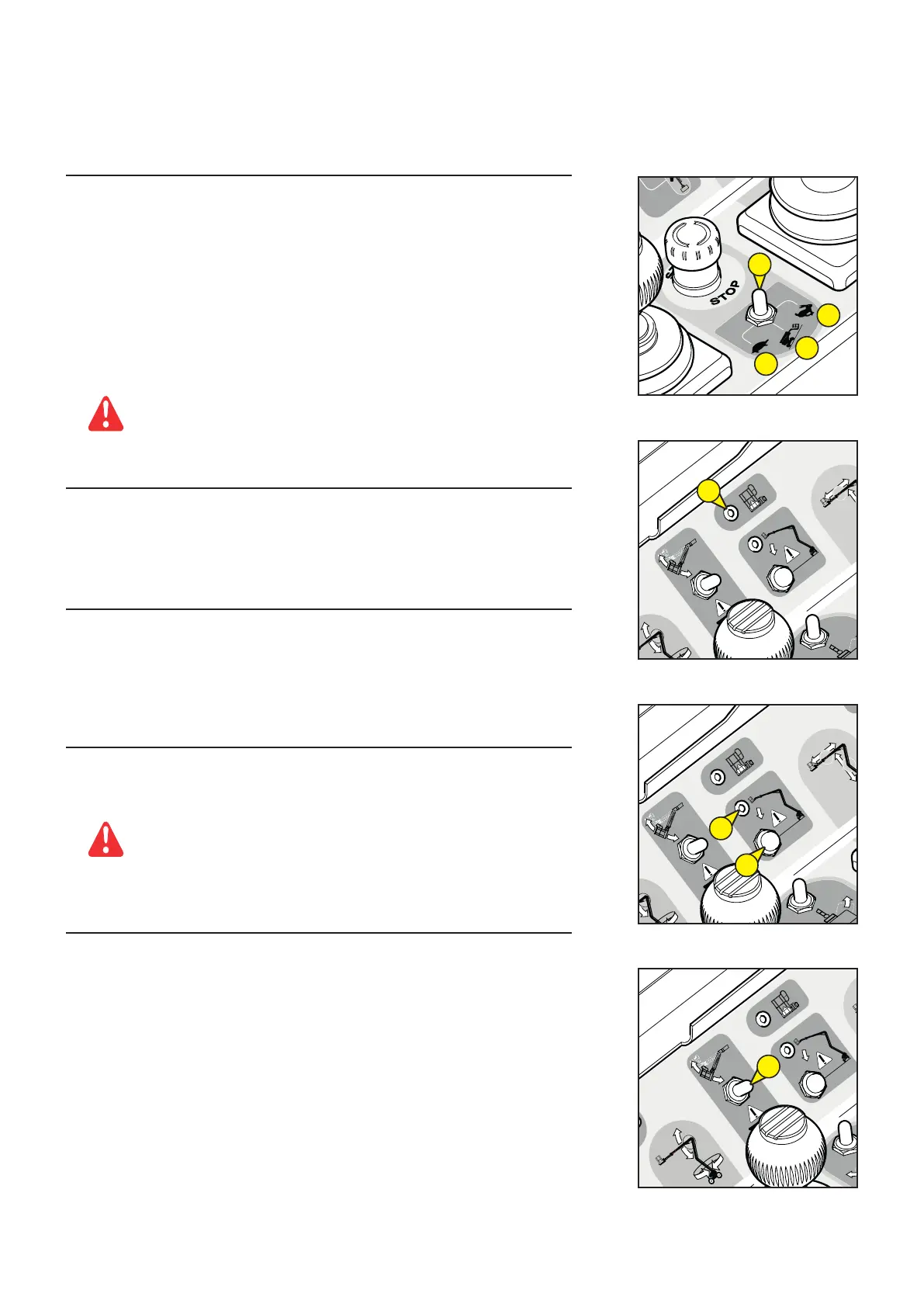

33 - TRANSLATION SPEED SELECTION CONTACTOR
- This contactor has 3 positions.
POSITION 1 : TORTOISE (SLOW SPEED)
POSITION 2 : RAMP (SLOW SPEED WITH FULL POWER) Only if crossing a very steep
ramp.
POSITION 3 : HARE (HIGH SPEED), only with the steering mode selector switch in
position 1 (28: Movement crabwise) or in position 2 (27: Movement in 2-wheel drive).
NB: When the selector switch is in position 3 (high speed) and the machine is in 4-wheel
drive, the switch moves automatically to position 2 (ramp speed).
While in Hare/high speed mode (position 3), the turret must be in the
machine’s axis
.
34 - “OVERLOAD” INDICATOR LIGHT
- This indicator light illuminates if the basket is overloaded and the buzzer sounds
continuously (see the SAFETY SYSTEMS section)
35 - “TILT” INDICATOR LIGHT
- When the lifting platform reaches the maximum authorised tilt, the LED lights up, any
movements to raise the arms are blocked and the buzzer sounds with intermittent
long beeps.
36 - “USE UNDER TILT” BUTTON
- This button enables you to utilise the prohibition on movements when the lifting
platform is tilting (see the SAFETY SYSTEMS section”).
When using the platform when it is tilting, there is a risk of loss of
stability.
The basket overload safety system still remains active.
37 - BASKET INCLINATION CONTACTOR
- This contactor enables you to correct the baskets horizontality or to fold the basket
back completely in Transport position.
CORRECTING THE BASKET UPWARDS
- Push the contactor up.
CORRECTING THE BASKET DOWNWARDS
- Pull the contactor down.
33
1
2
3
34
35
36
37
647414 EN (27/05/2015)
