2-47

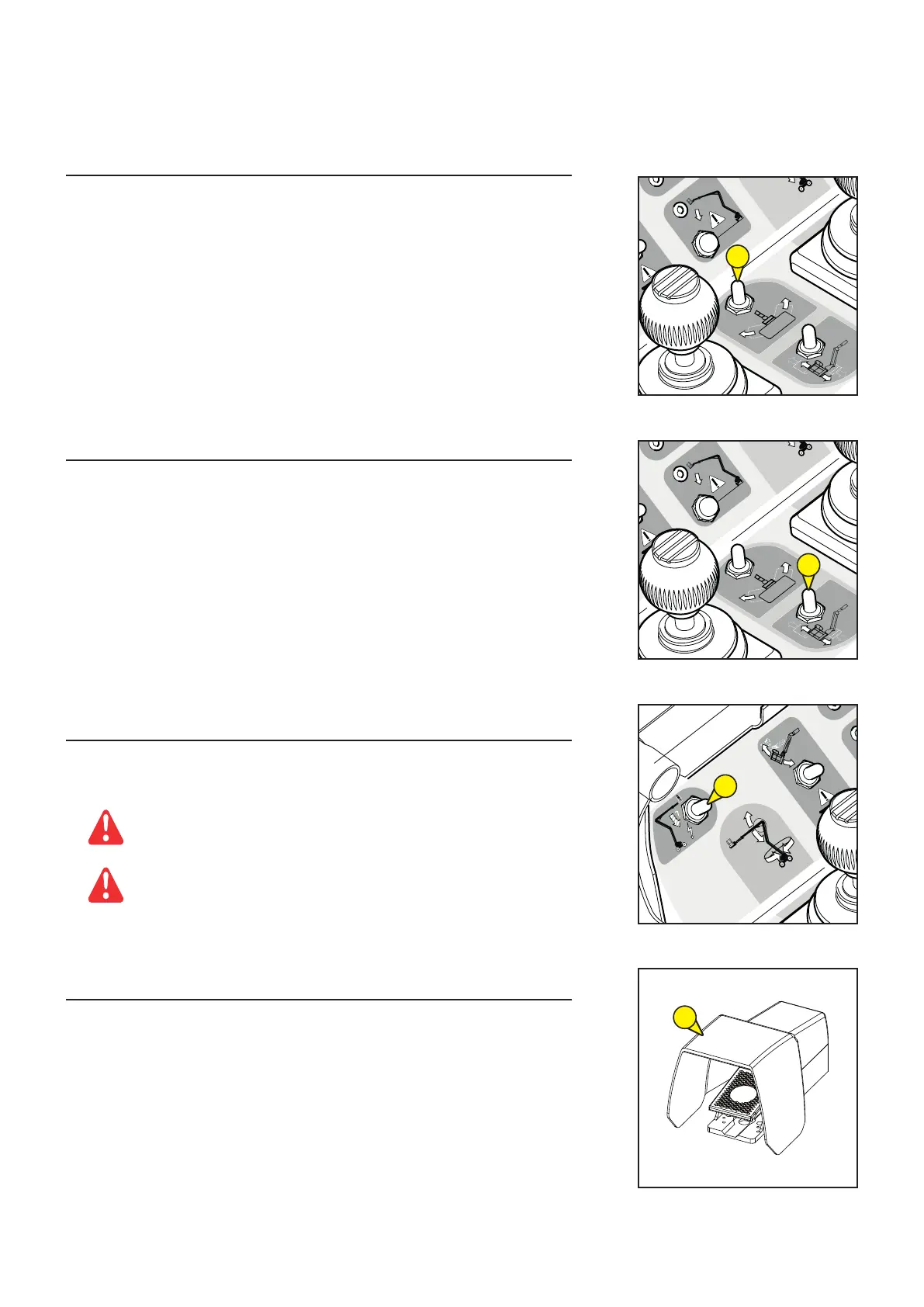

38 - BASKET ROTATION CONTACTOR
- This contactor enables you to rotate the basket left and right
RIGHT ROTATION
- Push the contactor to the right.
LEFT ROTATION
- Push the contactor to the left.
39 - BASKET PENDULAR ARM CONTACTOR
- This contactor enables you to raise and lower the pendular arm.
RAISING THE PENDULAR ARM
- Push the contactor forwards.
LOWERING THE PENDULAR ARM
- Pull the contactor backwards.
40 - “EMERGENCY PUMP” BUTTON
- This button enables you to make all the basket’s movements to bring it back to the
ground in the event of a breakdown (see the RESCUE PROCEDURE section).
Only to be used if the engine or electrical system breaks down.
Check the engine battery
’s charge; this must be charged, otherwise
the emergency pump cannot be operated.
41 - “DEAD MAN’S” PEDAL
- This pedal is fixed to the lifting platform’s floor.
- You must push this pedal to perform movements from the basket console.
- When the pedal is released, no commands can be issued.
38
39
40
41
647414 EN (27/05/2015)
