MARA PIGGYBACK SERVICE MANUAL
10
11
12

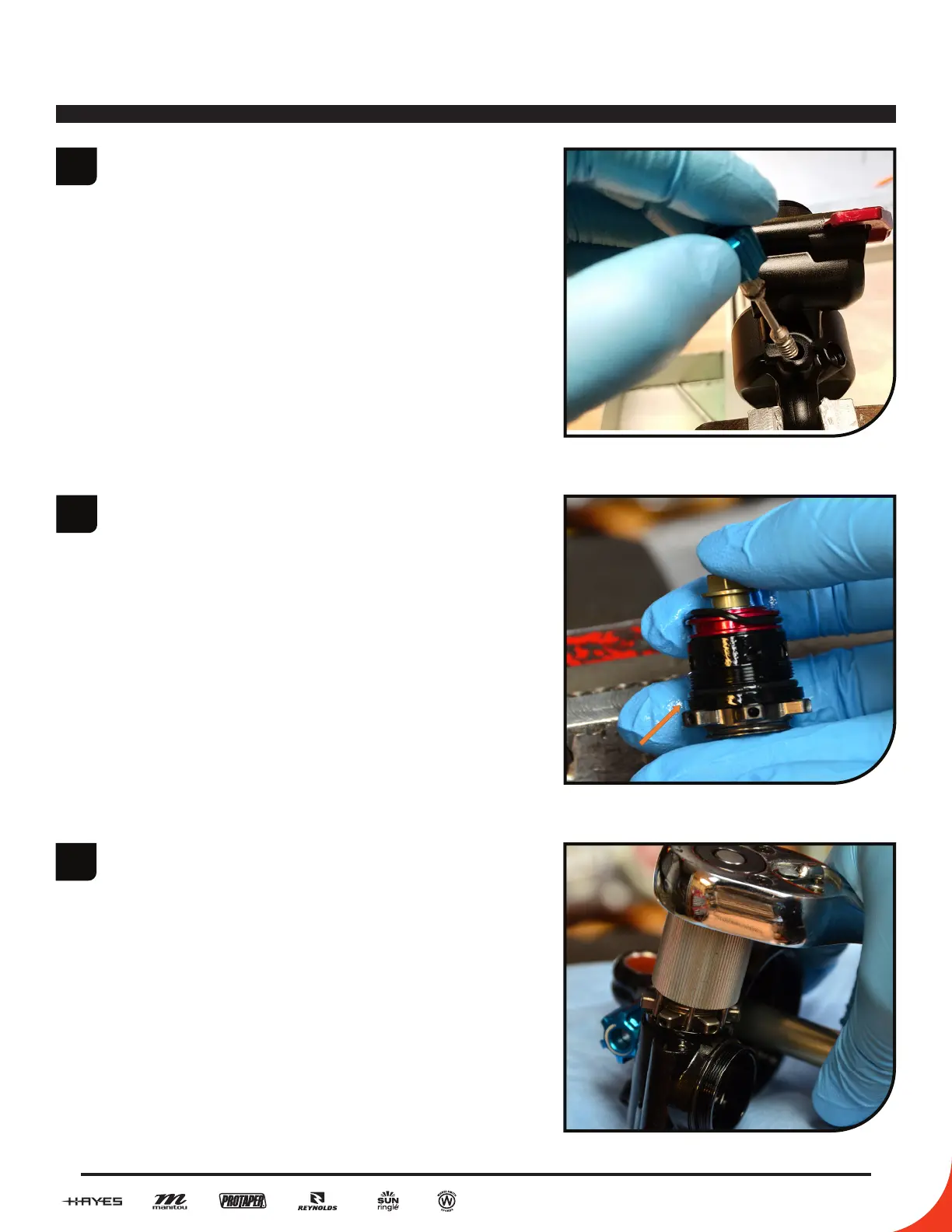

Apply a dab of grease to
the O-ring, ramped surface
and thread on the rebound
adjuster. Insert into top cap,
rotate counter-clockwise to
engage the left handed thread.
Turn until it lightly bottoms.
Reinstall spring and detent
ball.
top cap service
Replace the O-Ring (101-
1600-0180) on the HSC
Piston. Replace the O-Ring
(100-018) on the compression
cartridge body (above threads
at the ange). Grease both
O-Rings.
Install the compression
assembly into the top cap.
Use the compression assembly
Pin spanner tool (142-37512-
K031) and torque to 5.7Nm
(50 in-lb).
