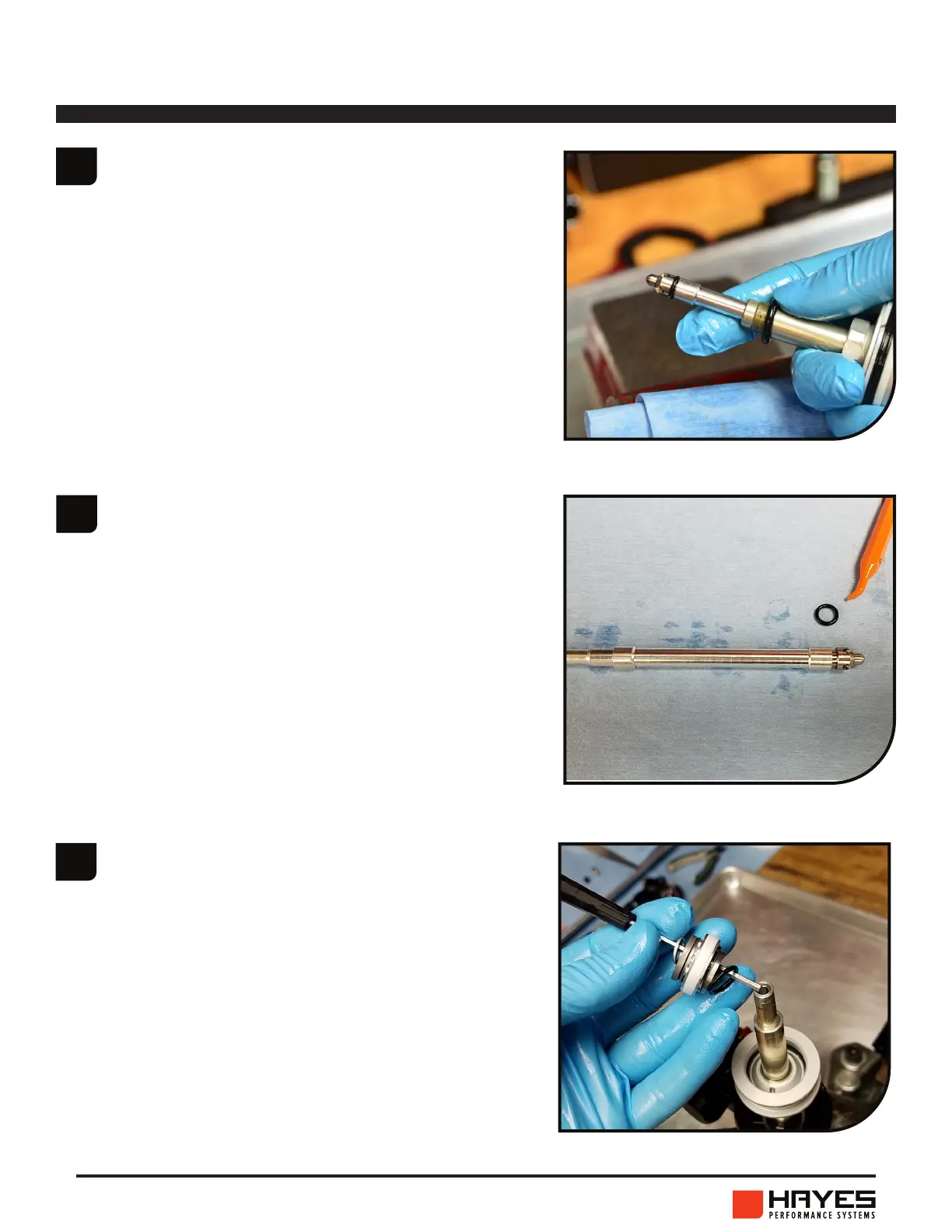

18
MARA PIGGYBACK SERVICE MANUAL
Clamp the main shaft in the
12mm Manitou Clamp Block
(PN 172-31464) Remove
the piston nut from the shaft
with a 16mm socket wrench.
Carefully slide the shims and
piston onto a small tool like
an O-ring pick or screw driver
to preserve the sequence of
components. Carefully set
aside.
1
Remove the rebound needle
(inner piece with rounded
head) from the main shaft by
gentle pulling it up. Be aware
of the spring and two small
washers at the bottom of the
rebound needle.
Remove O-ring (101-600)
from the rebound needle.
Clean needle with Isopropyl
alchohol. Replace the O-ring
(101-600) on the rebound
shaft. DO NOT grease this
O-ring! Function and assembly
is better without grease.
2
3
Shaft service
