MARA PIGGYBACK SERVICE MANUAL
16

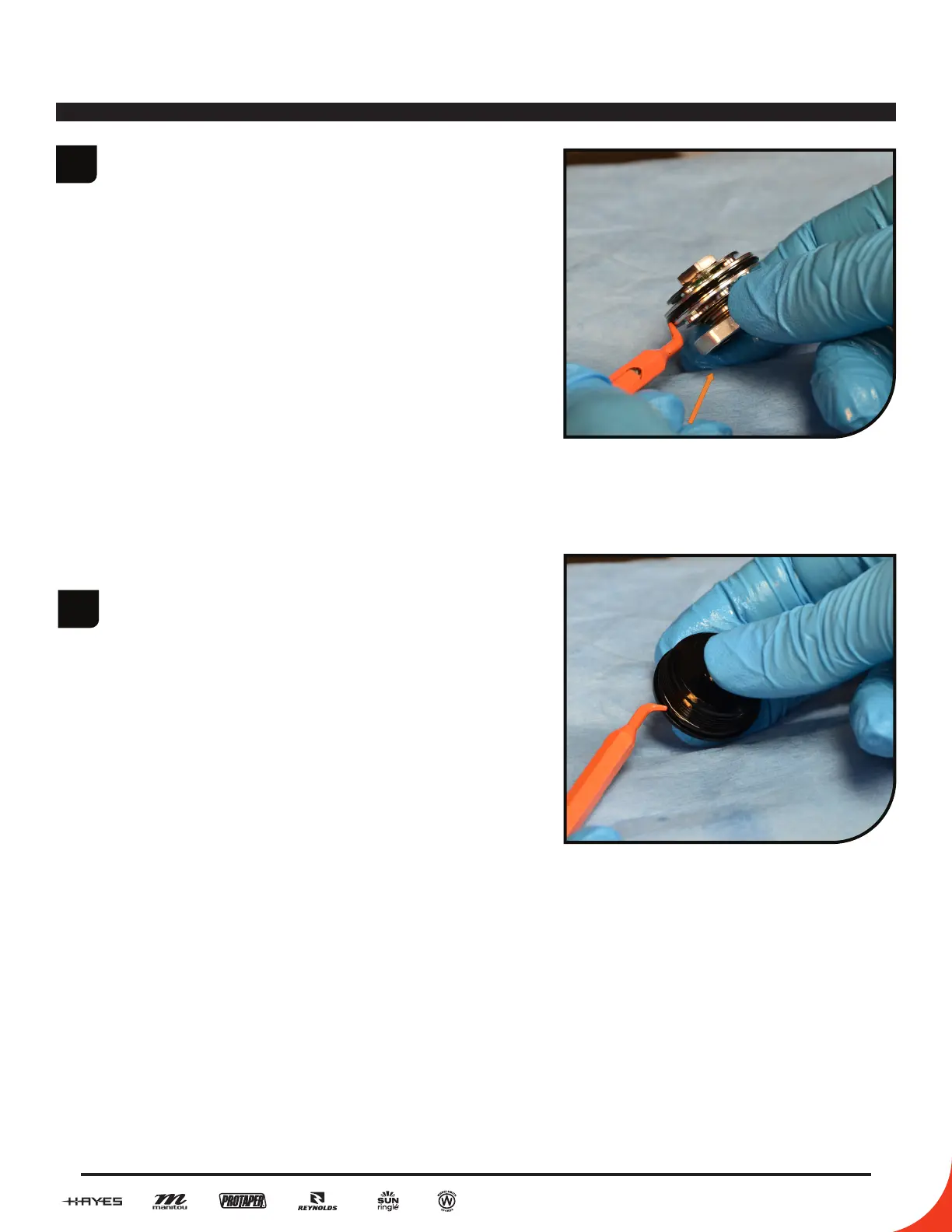

Remove the O-ring (101-2300-
150) from the lock-out piston
assembly. Remove face seals
if still in place. Clean assembly
with Isopropyl alcohol. Install
new piston O-ring and new
face seal(s). O-ring type face
seals (2pc) (101-700-110) or
gure 8 type seal (08-37751)
depending on the seal gland
available. Lockout will be
installed at the time of oil ll.
Note: Use grease to hold face
seals in place.
17
Remove O-ring (100-021)
from the reservoir end cap.
Clean end cap with Isopropyl
alcohol. Install new O-ring
and apply grease. Set aside
on a clean, lint free rag
until needed after the oil ll
process.
Top cap service
Face seals
