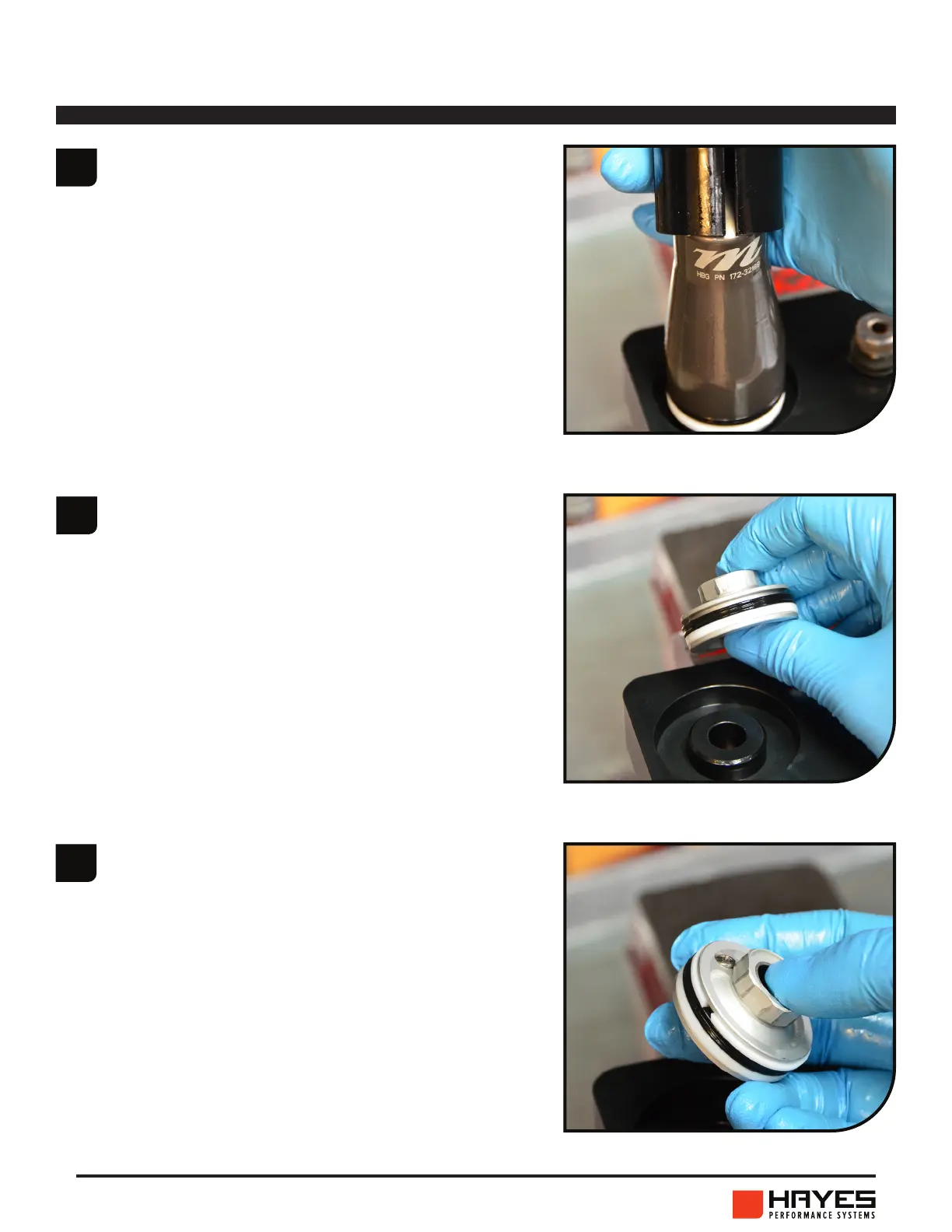

20
MARA PIGGYBACK SERVICE MANUAL
1
Place the air piston into the
rst pocket of the service
block. Grease the outside
of the bullet tool and place
it on top of the piston. Use
the Air Piston Seal Pusher
Tool (PN 172-32189-K001) to
install the glide ring onto the
air piston. Note If bullet tool is not
available see “50 hour air can and piston
service guide” for alternative method of
replacing the seals. If using this method
the air piston will need to be installed on
the main shaft. It is recommended this
would be done after the full service is
complete. Please skip to step 5 if using
the alternative method
2
3
Grease new air piston quad
seal (08-30017) and use the
seal pusher to install onto the
air piston.
shaft and air piston assembly
Install the Split Ring (08-
30718) onto the air piston.
To Next Page
