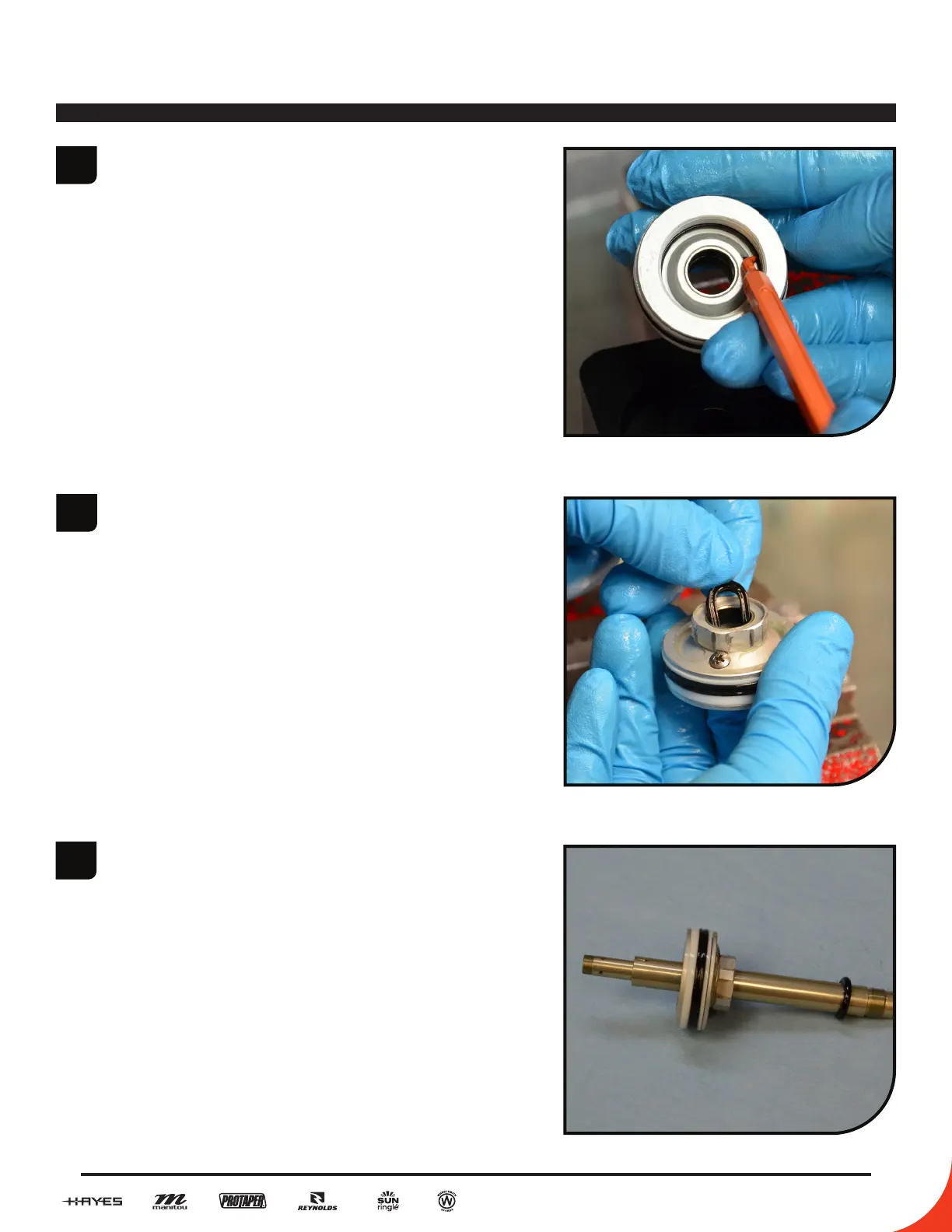

MARA PIGGYBACK SERVICE MANUAL
4
Replace the O-Ring (101-
2600) in the bottom of the air
piston.
5
6
Grease the mainshaft. Using
the shaft seal bullet tool (142-
37512-K040), slide the air
piston on at the damping-end
of the shaft
shaft and air piston assembly
Grease new shaft Quad Ring
(110-112) and install into
the air piston. Ensure it is
not twisted. Note: Air Piston
Service Tool can be used for
this step. The peg on the end
acts as a stop for installing the
seals in the piston.
