Manitou MI-X 50L D C ST3A S2 User Manual

ENGINE SHUTDOWN
If the indicator lamp comes on when the lift truck is running, stop the engine then:
- Seek the cause (possible leak, etc.).
- See the fault code display located under the engine cover (
 INSTRUMENTS AND CONTROLS).
- Consult your dealer if necessary.
NOTE: If the indicator lamp remains on, an engine shut-down procedure is initiated. The lamp will then flash for 30 seconds
before the engine is shut down.
ENGINE FAULT
If the indicator lamp comes on when the lift truck is running, stop the engine then:
- Seek the cause (possible leak, etc.).
- See the fault code display located under the engine cover (
 INSTRUMENTS AND CONTROLS).
- Consult your dealer if necessary.
NEUTRAL POSITION
The lamp will light when the forward/reverse selector is in neutral and the lift truck is stationary. This lamp must
be lit in order to start the engine.
Only for MI 50L G S2
MI 60 G S2
MI 70 G S2

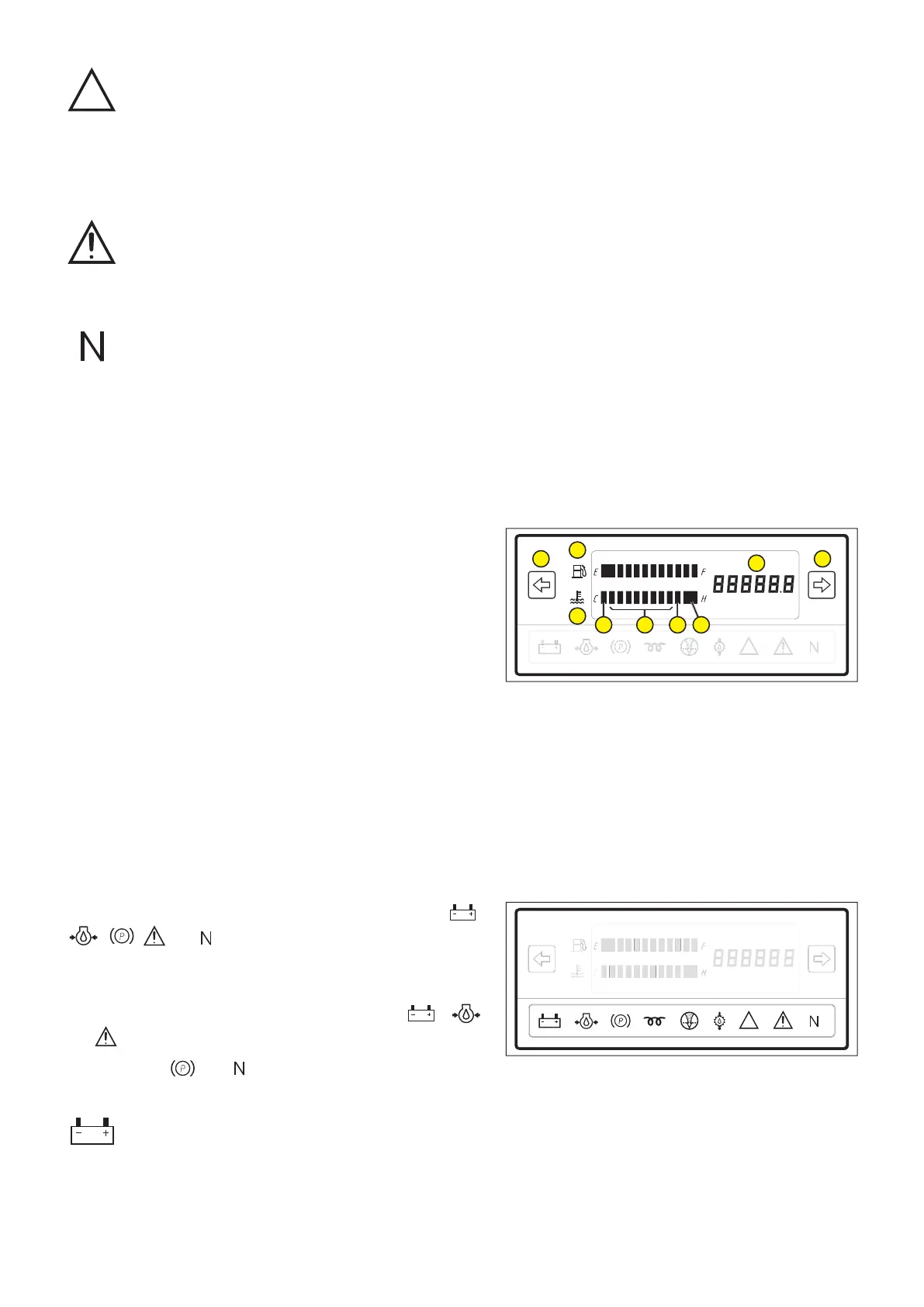

A - NOT USED
B - ENGINE WATER TEMPERATURE
• Zone B1 (0° to 50°) Use the lift truck with moderation,
wait for temperature to increase before
normal operation.
• Zone B2 (60° to 105°) Use lift truck normally.
• Zone B3 (110°) Use lift truck with moderation, monitor the temperature.
• Zone B4 (120°) Stop the lift truck, look for the cause of overheating.
C - HOUR METER
D - LEFT-HAND INDICATOR
E - RIGHT-HAND INDICATOR
As soon as the ignition key is in position I, indicator lamps
,
, , and come on to indicate their proper operation.
NOTE: If one of the red indicator lamps or the buzzer is not
working, carry out the necessary repairs.
As soon as the engine starts, indicator lamps
,
and
will go out.
Indicator lamps
and will go out the moment their control
is used.
BATTERY CHARGE
If this lamp comes on while the lift truck is in operation, switch off the engine immediately, seek the cause of the
electrical system fault and check the alternator belt. Consult your dealer if necessary.
2-25
C
A
B
D E
B2 B4B3B1
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
