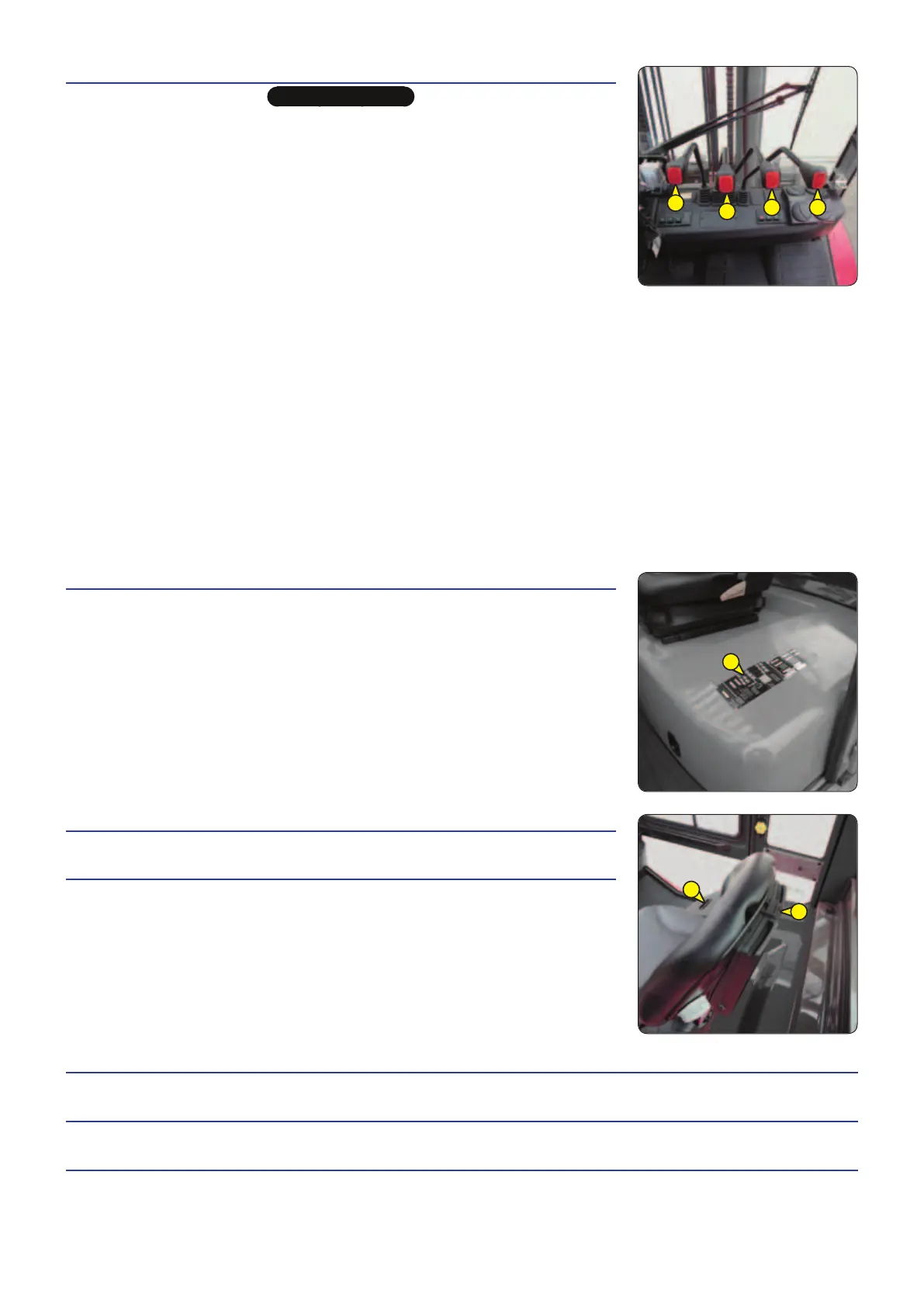

15 - HYDRAULIC CONTROLS

IMPORTANT

Do not attempt to alter the hydraulic system pressure. In the event of malfunction, contact your dealer. ANY
ALTERATION MAY RENDER THE WARRANTY NULL AND VOID.
Operate the hydraulic controls gently and smoothly to avoid accidents caused by jerking of the lift truck.
Using the hydraulic controls is only possible if the driver is present and correctly sat
on his seat.
LIFTING THE LOAD
• Lever A backwards to lift.
• Lever A forwards to lower.
NOTE: The engine r.p.m. automatically increases when lifting the load.
TILTING THE MAST
• The lever B backward for backward tilting.
• The lever B forwards for forward tilting.
ATTACHMENT
• The lever C forwards or backwards.
ATTACHMENT (OPTION)
• Lever D forwards or backwards.
16 - LOAD CHARTS
Comply with the load chart limits for the lift truck for the attachment used
(
 OPERATING AND SAFETY INSTRUCTIONS)
17 - DOCUMENT CLIP
18 - DOCUMENT HOLDER
Make sure that the operator’s manual is in the right place, i.e. in the waterproof document
holder.
19 - INSIDE REAR-VIEW MIRROR
20 - ROOF LIGHT
21 - CAB VENTILATION AIR VENTS (OPTION)
2-32
A
B
C D
17
18
16
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
