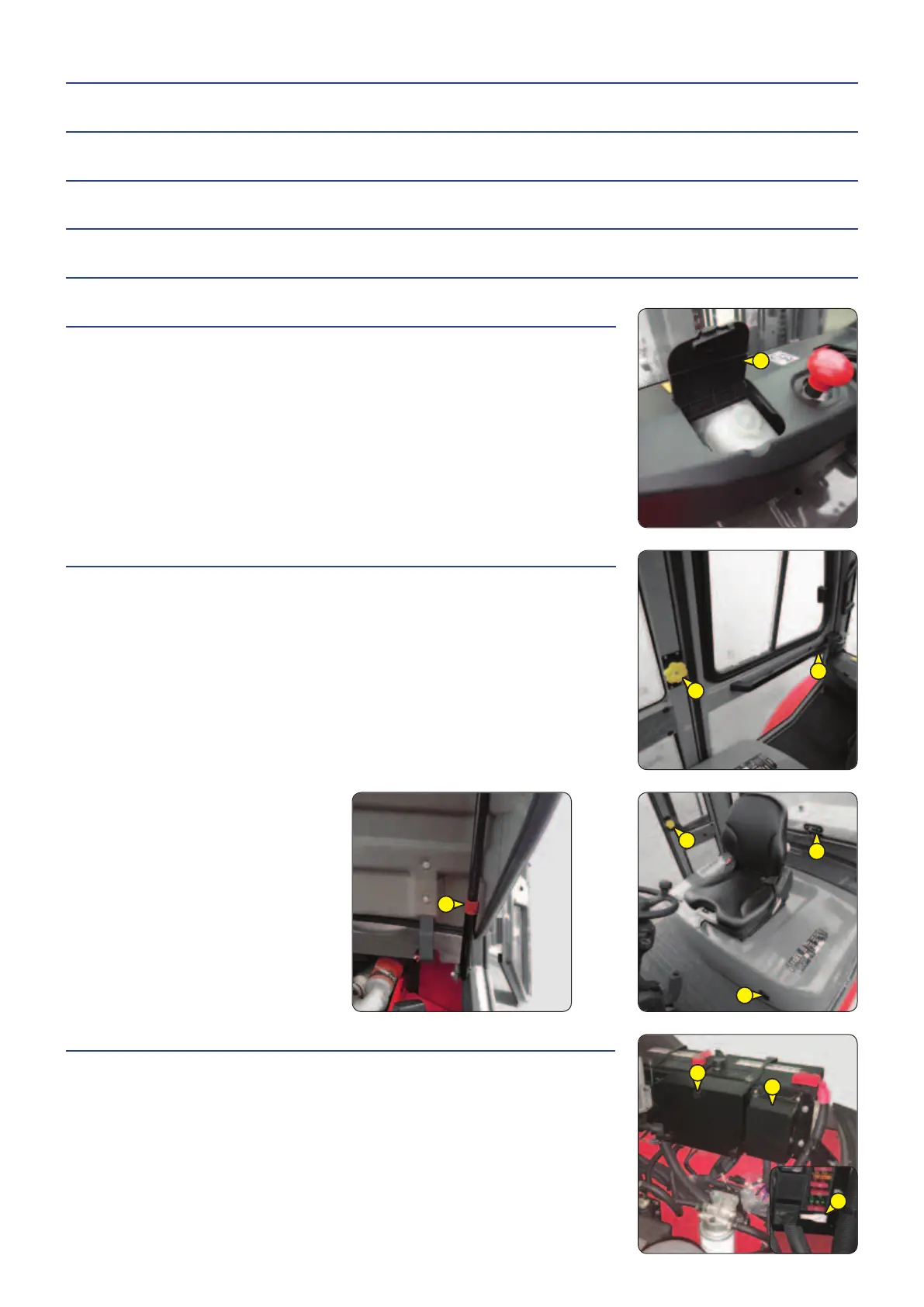

22 - DRIVER'S CAB ACCESS HANDLES
23 - DOOR OPENING HANDLES (OPTION)
24 - DOOR HANDLES (OPTION)
25 - CAB DOOR SLIDING WINDOWS (OPTION)
26 - REAR WINDOW OPENING (OPTION)
27 - WINDSCREEN WASHER TANK ACCESS PANEL
28 - ENGINE COVER OPENING
NOTE: Cab option, open the side doors 1, the side half-doors 2 and the rear window
3 before lifting the engine cover.
LIFTING THE ENGINE COVER
- Pull the handle 4, keep in this position and gently lift the engine cover until the
gas strut safety catch 5 locks in place.
LOWERING THE ENGINE COVER
- Release the safety catch 5 and gently lower the engine cover.
- Check that the engine cover is properly closed.
29 - FUSES AND RELAYS UNDER THE ENGINE BONNET
- Open the engine cover ( INSTRUMENTS AND CONTROLS).
- Remove covers 1 and 2 to access the fuses and relays.
- Use the pliers 3 to replace a faulty fuse.
