Manitou MI-X 50L D C ST3A S2 User Manual

Only for MI-X 50L D C ST3A S2
MI-X 60 D C ST3A S2
MI-X 70 D C ST3A S2

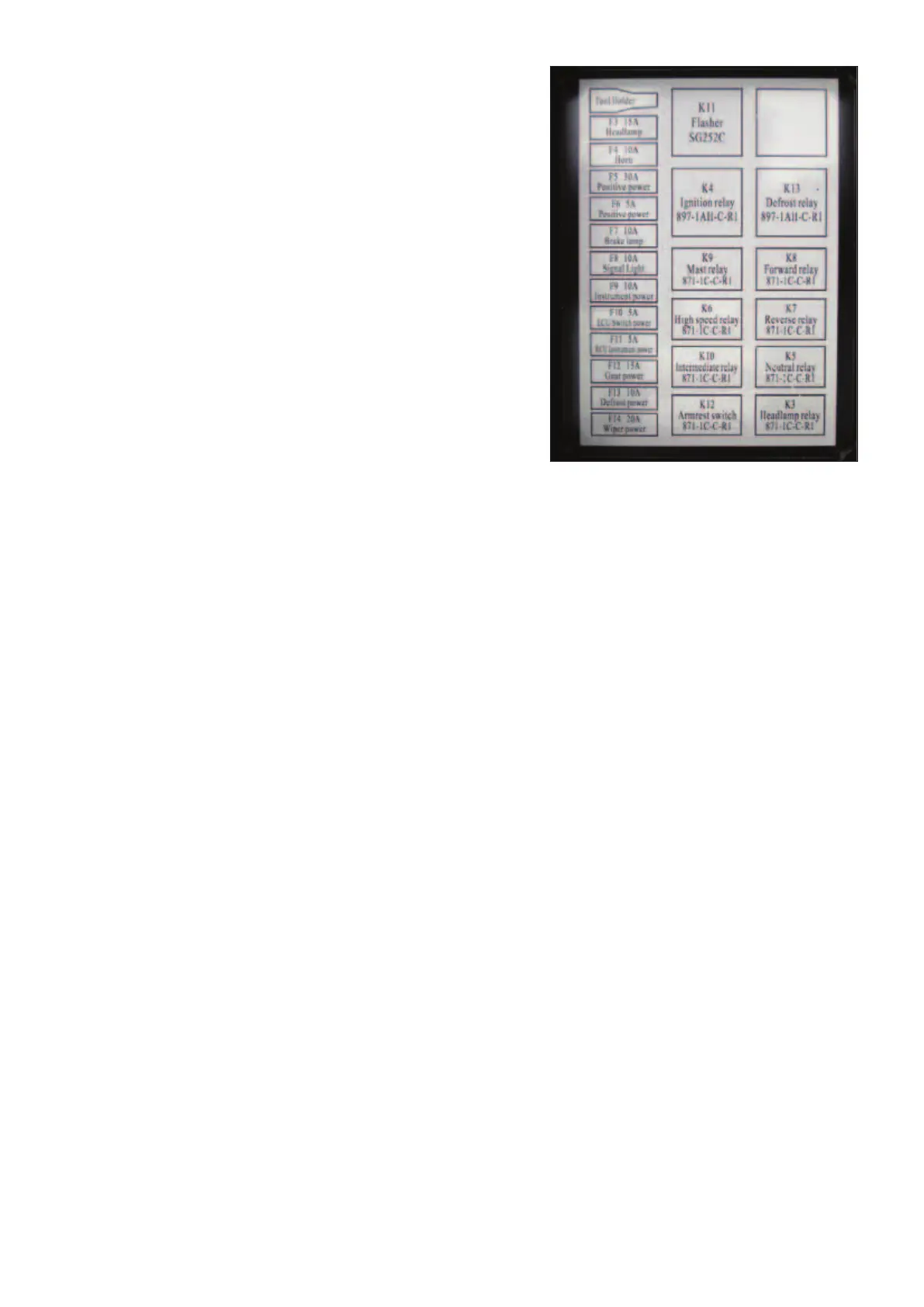

FUSES
F3 - Side lights (15A).
- Front headlights (15A).
F4 - Horn (10A).
F5 - Starter (30A).
F6 - Reverse lights (5A).
F7 - Stop lights (10A).
- Rear working light (10A).
- Rotating beacon light (10A).
F8 - Engine control unit (10A).
F9 - Control panel (10A).
F10 - Engine control unit (5A).
F11 - Engine fault code (5A).
F12 - Gearbox (15A).
F13 - Rear windscreen wiper (15A).
F14 - Front windscreen wiper (20A).
RELAYS
K2 - Free.
K3 - Front headlamps.
K4 - Ignition.
K5 - Neutral gear.
K6 - Fast speed.
K7 - Reverse gear.
K8 - Forward gear.
K9 -
Free.
K10 - Starting.
K11 - Indicator lights.
K12 - Free.
K13 - Free.
2-34
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
