5 - DASHBOARD
Only for MI-X 50L D C ST3A S2
MI-X 60 D C ST3A S2
MI-X 70 D C ST3A S2

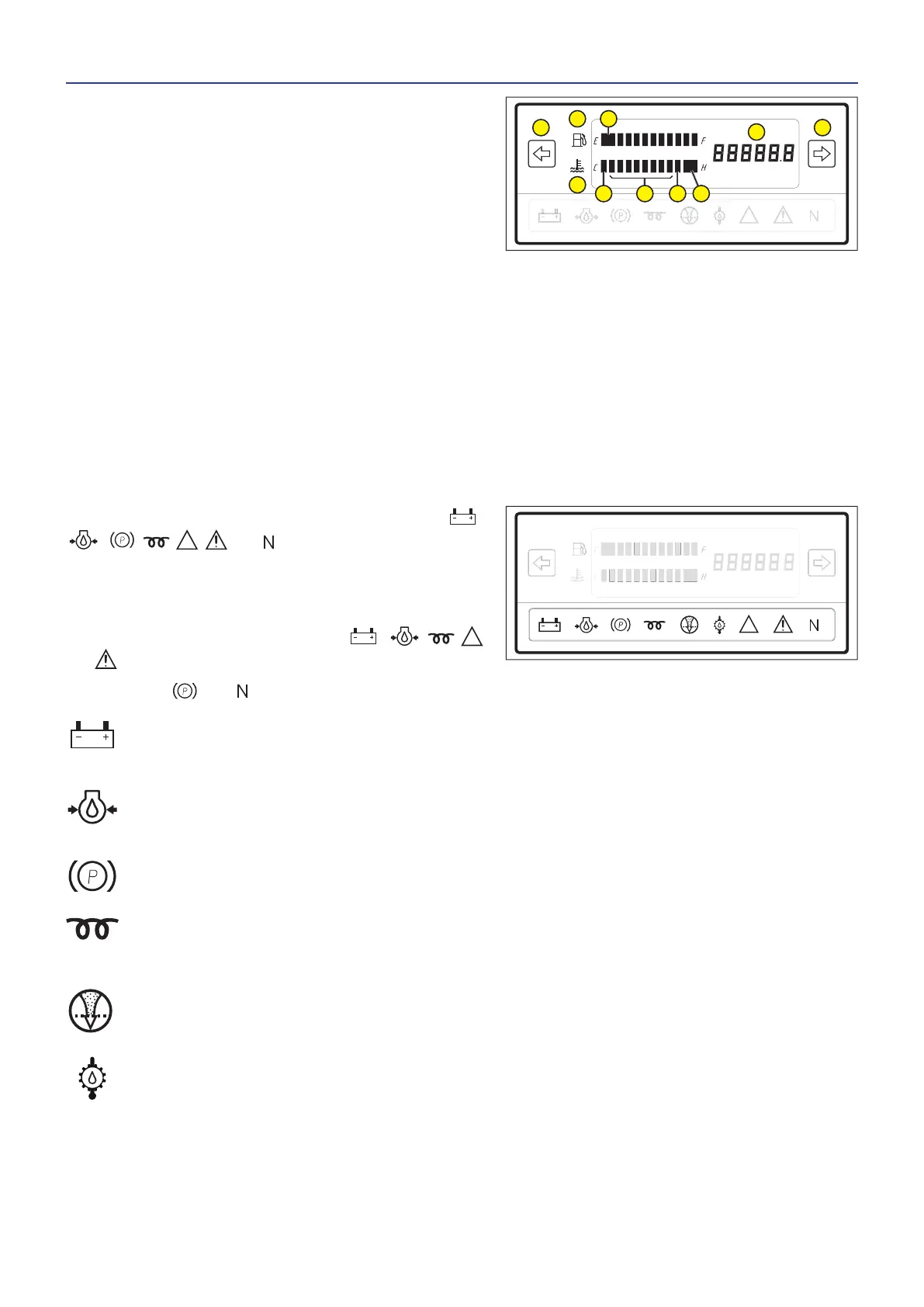

A - FUEL LEVEL
Zone A1 indicates that you are using the reserve supply and that
time of use is limited.
B - ENGINE WATER TEMPERATURE
• Zone B1 (0° to 50°) Use the lift truck with moderation,
wait for temperature to increase before
normal operation.
• Zone B2 (60° to 105°) Use lift truck normally.
• Zone B3 (110°) Use lift truck with moderation, monitor the temperature.
• Zone B4 (120°) Stop the lift truck, look for the cause of overheating.
C - HOUR METER
D - LEFT-HAND INDICATOR
E - RIGHT-HAND INDICATOR
As soon as the ignition key is in position I, indicator lamps
,
, , , , and come on to indicate their proper
operation.
NOTE: If one of the red indicator lamps or the buzzer is not
working, carry out the necessary repairs.
As soon as the engine starts, indicator lamps
, , ,
and
will go out.
Indicator lamps
and will go out the moment their control is used.
BATTERY CHARGE
If this lamp comes on while the lift truck is in operation, switch off the engine immediately, seek the cause of the
electrical system fault and check the alternator belt. Consult your dealer if necessary.
ENGINE OIL PRESSURE
If this lamp comes on while the lift truck is in operation, switch off the engine immediately, seek the cause of the
engine fault and check the engine’s oil level. Consult your dealer if necessary.
PARKING BRAKE
This indicator lamp comes on when the parking brake is applied.
DIESEL ENGINE PREHEAT
Preheat is necessary. When the lift truck is switched on, the indicator lamp comes on for a few seconds and goes
off as soon as preheat is ended. Start the lift truck’s engine.
AIR FILTER CLOGGING
The light comes on when the air filter cartridge is clogged up. When this light remains continuously lit the cartridge
needs changing. Stop the lift truck and carry out the necessary repairs ( MAINTENANCE: SERVICING SCHEDULE).
TRANSMISSION OIL TEMPERATURE
If this lamp comes on while the lift truck is in operation, switch off the engine immediately, seek the cause of the
transmission fault and check the transmission oil level. Consult your dealer if necessary.
2-24
C
A
B
D E
A1
B2 B4B3B1
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
