Manitou MI-X 50L D C ST3A S2 - Flashing Light; Front Headlights; Front Windscreen Wiper (Option); Fuel Tank

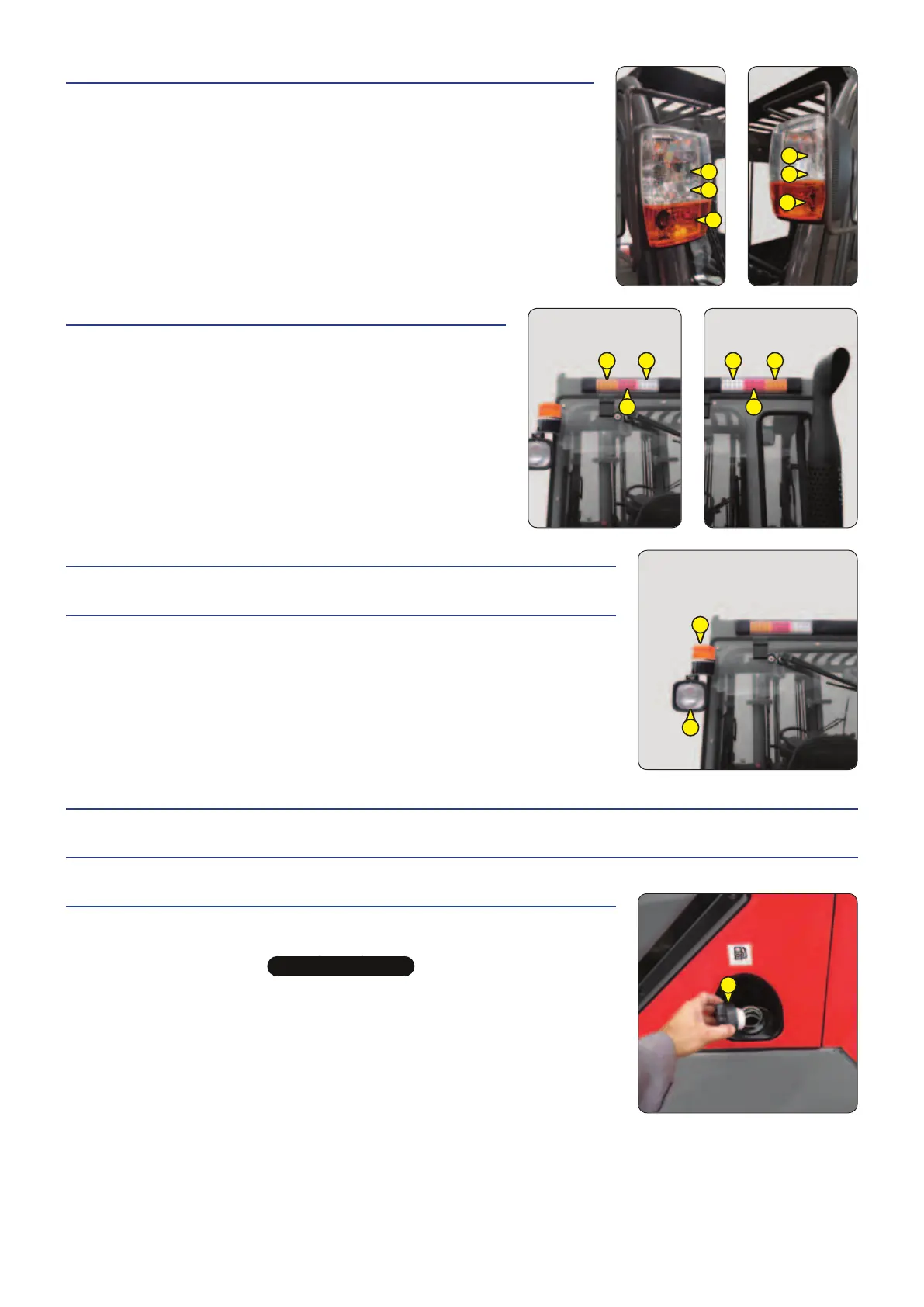

30 - FRONT HEADLIGHTS
• A - Front left indicator light.
• B - Front left headlight.
• C - Front left side light
• D - Front right indicator light.
• G - Front right headlight.
• F - Front right side light.
31 - REAR LIGHTS
• A - Rear left indicator light.
• B - Rear left stoplight.
Rear left headlight.
• C – Left-hand reverse light.
• D - Rear right indicator light.
• E - Rear right stop light.
Rear right headlight.
• F - Right-hand reverse light.
32 - REAR WORKING LIGHT
33 - FLASHING LIGHT
34 - FRONT WINDSCREEN WIPER (OPTION)
35 - REAR WINDSCREEN WIPER (OPTION)
36 - FUEL TANK
As far as possible, keep the fuel tank well filled in order to minimise condensation due
to the atmospheric conditions.

IMPORTANT

Never smoke or approach with a flame during filling operations or when the tank is open.
Never refill while the engine is running.
The fuel tank is degassed via the filler plug.
When changing it, always use an original part, with degassing hole.
- If necessary, add diesel oil ( 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Remove cap 1.
- Fill the fuel tank with clean, filtered diesel.
- Refit the cap.
- Visually check that there is no leakage in the tank and pipes.
NOTE: A locking tank cap is available as an OPTION.
2-37
E
F
D
B
C
A
33
32
DF
E
CA
B
1
