Manitou MI-X 50L D C ST3A S2 User Manual

Only for MI 50L D ST3B S2
MI 60 D ST3B S2
MI 70 D ST3B S2

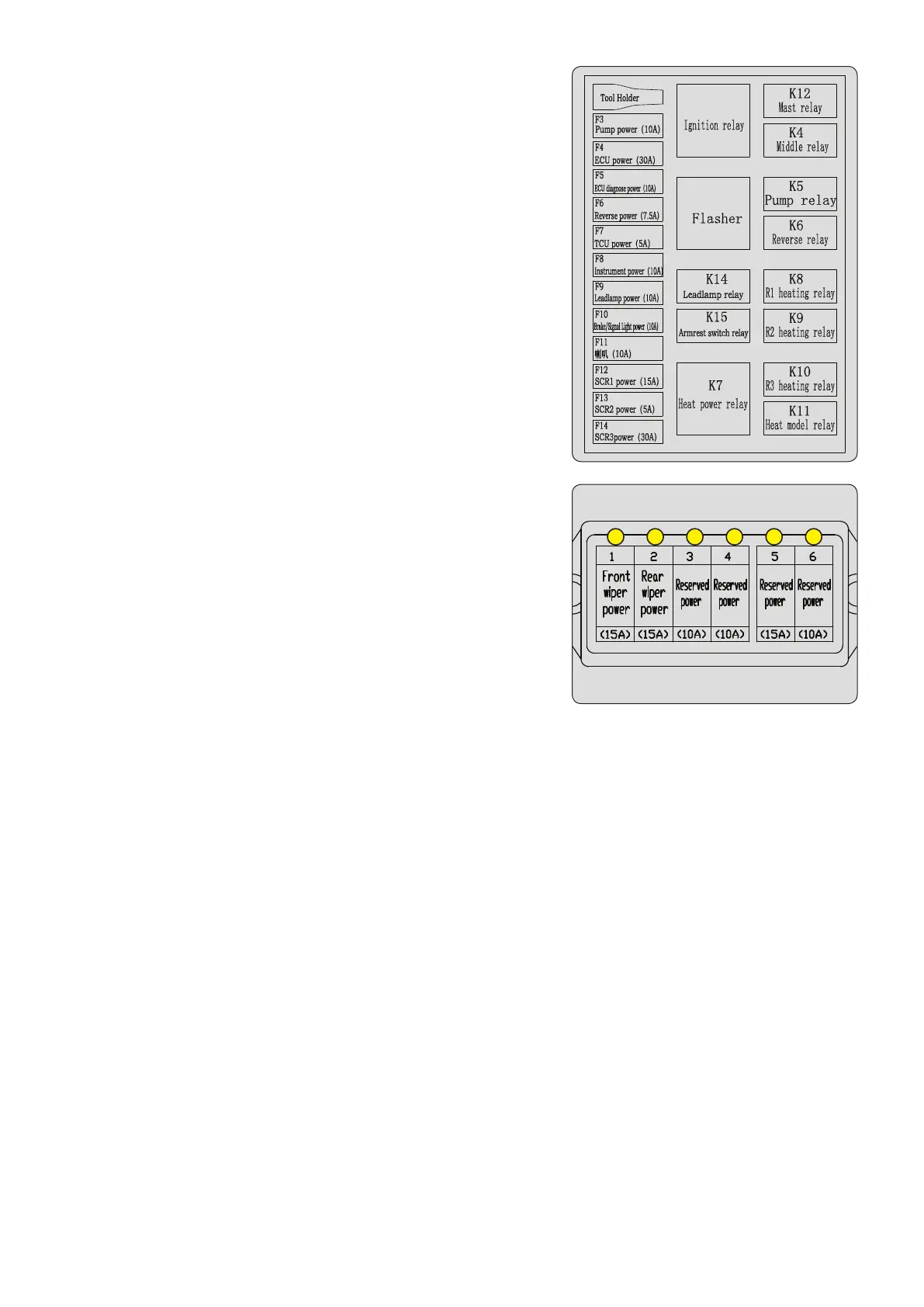

FUSES
F3 - Engine preheat (10A).
F4 - Starter (30A).
F5 - Engine fault code (10A).
F6 - Reversing gear (7.5A).
F7 - Gearbox control unit (5A).
F8 - Dashboard (10A).
F9 - Rear working light (10A).
- Rotating beacon light (10A).
F10 - Stop lights (10A).
- Indicator lights (10A).
F11 - Free (10A).
F12 - Free (15A).
F13 - Free (5A).
F14 - Free (30A).
F15 - (1) Front windscreen wiper (15A).
F16 - (2) Rear windscreen wiper (15A).
F17 - (3) Free (10A).
F18 - (4) Free (10A).
F19 - (5) Free (15A).
F20 - (6) Free (10A).
RELAYS
K3 - Starting.
K4 - .
K5 - Pump.
K6 - Reverse gear.
K7 - Engine preheat.
K8 - .
K9 - .
K10 - .
K11 - .
K12 - Mast.
K13 - Rotating beacon light.
K14 - Rear working light.
K15 - Armrest switch.
2-36
.
.
F15 F16 F17 F18 F19 F20
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
