INDICATOR LAMPS AND CONTROL INSTRUMENTS
L - NOT USED
M - NOT USED
N - SUB-MENU KEYS
O - GENERAL SETTINGS ADJUSTMENT
P - NOT USED
Q - FAULT CODE DISPLAY
R - LIFT TRUCK SETTINGS DISPLAY
• ENGINE/GEARBOX CONDITION
O - DASHBOARD SETTINGS ADJUSTMENT

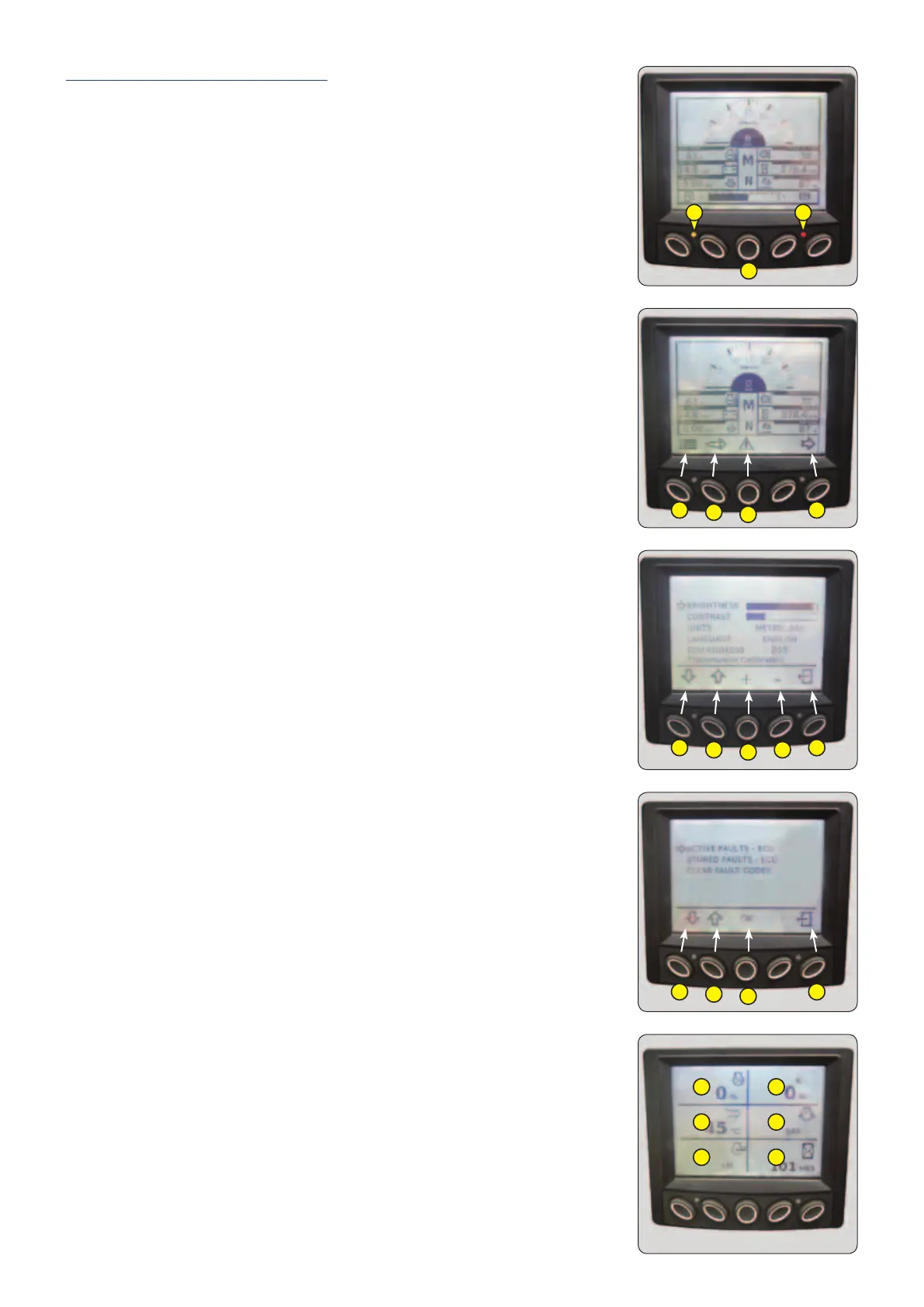

- Use keys 1 and 2 to select the setting to modify.
• Light level
• Contrast
• Unit of measurement
• Language
• ECU address (dealer access)
• Transmission calibration (dealer access)
- Use keys 3 and 4 to adjust the setting.
- Use key 5 to exit the dashboard settings.
Q - FAULT CODE DISPLAY
- Use keys 1 and 2 to select the setting to view.
• Current faults
• Faults recorded
• Clear fault codes (dealer access)
- Use key 3 to view the setting.
- Use key 4 to exit the fault codes.
R - LIFT TRUCK SETTINGS DISPLAY
ENGINE/GEARBOX CONDITION
• 1 - Engine performance
• 2 - Accelerator pedal position
• 3 - Air intake temperature
• 4 - Gearbox oil pressure
• 5 - Engine torque
• 6 - Hour meter
2-28
L M
N
O
P
Q
R
1
2
3
4
1
42
3
5
1 2
3
65
4
647650 (19/02/2018)
