Manitou MRT 2150 Privilege Plus ST4 S2 Operator's Manual

2-80
EN
IT
EN ESFR
648970 IT-EN-FR (18/02/2016)
Solo se installata l’aria condizionata.
(
8)
- Rimuovere lo sportellino (1
8) di
accesso ai fusibili e relè (2
8).
p
Sostituire sempre un fusibile
difettoso con uno equivalente.
Non utilizzare mai un fusibile
riparato.

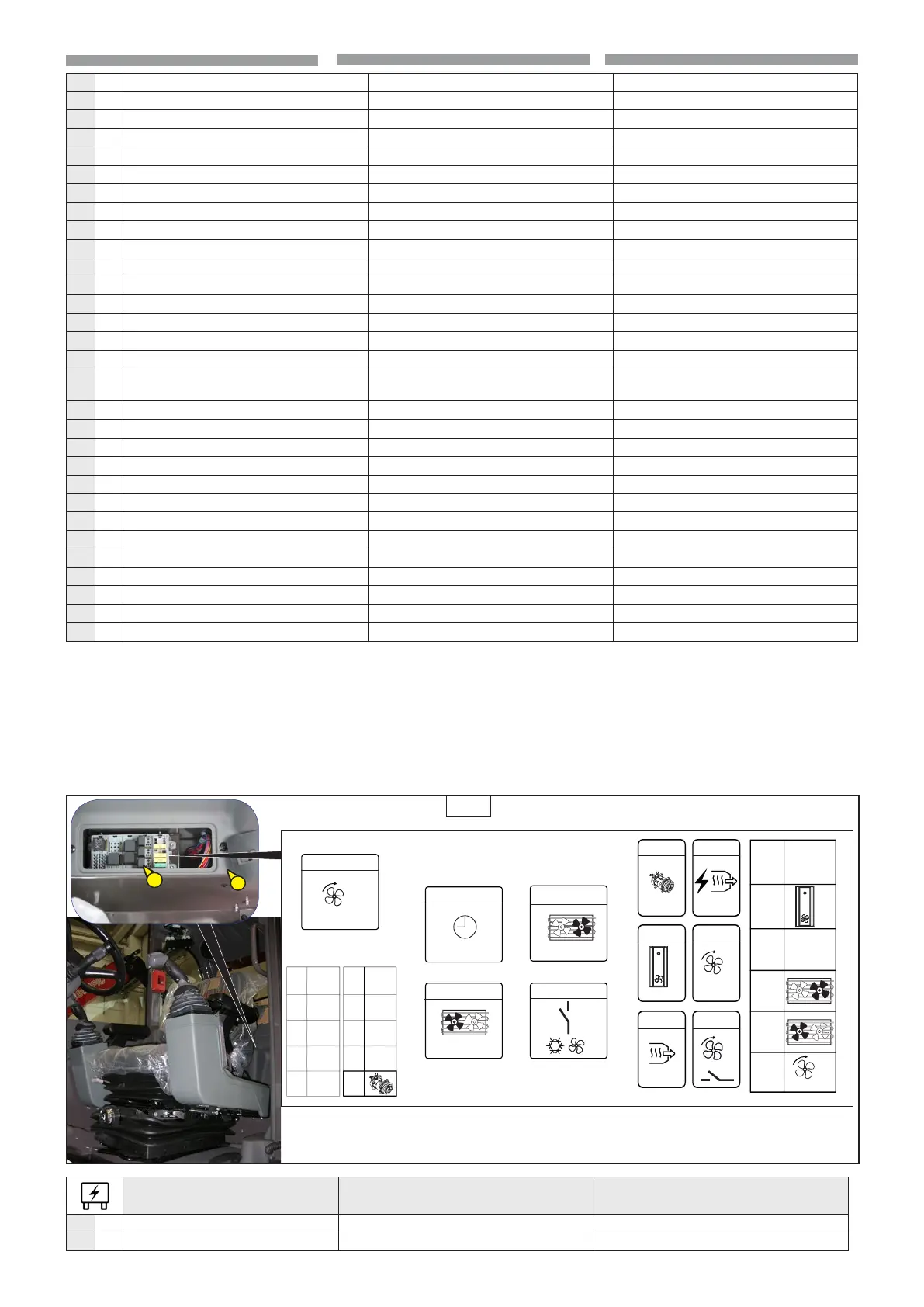

Only if installed air conditioning. (
8)
- Remove the door (1
8) for access to the
fuses and relays (2
8).
p
Always replace a faulty fuse with
another of equivalent rating.
Never use a fuse that has been
repaired.
8
2
1
F5
F3
F2
(20A)
(20A)
R1
R3
R5
R6
R7
R8
R9
R10
(7,5A)
R4R2
F1
(30A)
3
2
1
3
2
1
T1
3
2
1
F4
(20A)
53003430
3
2
1
300 s
3
2
1
3
2
1
F61 5A Fusibile “15” alimentazione allineamento torretta + sensore Fuse "15" tower allignment + tower lock sensor supply
Fusible “15” alimentation alignement tourelle + capteur bloc tourelle
F62 10A Fusibile “15” alimentazione RFID + cestello Fuse "15" RFID + basket supply
Fusible “15” alimentation RFID + nacelle
F63 15A Fusibile “15” alimentazione sedile pneumatico + sedile Fuse "15" pneumatic seat + heated seat supply
Fusible “15” alimentation siège pneumatique + siège chauffé
F64 10A Fusibile “15” alimentazione fari lavoro braccio Fuse "15" boom work lights supply
Fusible “15” alimentation phare travail flèche
F65
15A Fusibile “15” alimentazione vetro porta Fuse "15" door windows supply
Fusible "15" alimentation vitre porte
F66
7.5A Fusibile “15” alimentazione interruttori Fuse "15" switches supply
Fusible “15” alimentation interrupteurs
F67 5A Fusibile “15” + 12V alimentazione funzioni cestello 3D Fuse "15" +12V 3D basket functions supply
Fusible “15” + 12V alimentation fonctions nacelle 3D
F68 7.5A Fusibile “15” alimentazione sbrinamento vetro posteriore Fuse "15" rear windows defrost supply (OPT)
Fusible "15" alimentation dégivrage vitre arrière
F69
5A Fusibile “15” alimentazione +12V / accendisigari Fuse "15" +12V lighter
Fusible “15” alimentation + 12V/allume-cigarette
F70
10A Fusibile “15” alimentazione +12V benna mix Fuse "15" +12V mix bucket
Fusible “15” alimentation + 12V benne mix
F71 25A Fusibile “15” alimentazione +12V benna mix grande Fuse "15" big mix bucket
Fusible “15” alimentation + 12V benne mix grande
F72 25A Fusibile “15” alimentazione centralina Fuse "15" ECU power supply
Fusible “15” alimentation centrale
F73 5A Fusibile “15” alimentazione presa opzionale Fuse "15" optional plug supply
Fusible “15” alimentation prise optionnel
F74 5A Fusibile “15” alimentazione antifurto + telecamera posteriore Fuse "15" antitheft + reverse camera supply
Fusible "15" alimentation antivol + caméra arrière
F75 5A Fusibile “30” alimentazione centralina motore - CPC4 Fuse "30" Engine ECU - CPC4
Fusible “30” alimentation centrale moteur - CPC4
F76 5A Fusibile “30” alimentazione display + antifurto Fuse "30" display + antitheft supply
Fusible “30” alimentation écran + antivol
F77 5A
Fusibile “15” alimentazione telecamera posteriore + flusso olio
idraulico in continuo
Fuse "15" reverse camera + continuos hydaulic flow supply
Fusible “15” alimentation caméra arrière + flux huile hydraulique en
continu
F78
5A Fusibile “15” alimentazione presa predisposizione cabina Fuse "15" cab predisposition plug supply
Fusible “15” alimentation prise prédisposition cabine
F79 5A Fusibile “15” alimentazione display Fuse "15" display supply
Fusible “15” alimentation afficher
F80 5A Fusibile “15” alimentazione presa diagnostica Fuse "15" diagnostic plug supply
Fusible “15” alimentation la prise de diagnostic
R24 Relè distributore Boom solenoid bench supply relay
Relais distributeur
R25 Relè trasduttori 3B6 Boom cylinder pressure sensor supply relay
Relais transducteurs 3B6
R27 Relè blocco cestello 3D 3D basket locking solenoid relay
Relais bloc nacelle 3D
R28 Relè inclinazione cestello 3D Tilting solenoid 3D basket relay
Relais inclinaison nacelle 3D
R29 Relè sollevamento cestello 3D Lifting solenoid 3D basket relay
Relais soulèvement nacelle 3D
R30
Relè rotazione cestello 3D Rotation solenoid 3D basket relay
Relais rotation nacelle 3D
R32
“15” dopo bottone arresto d’emergenza “15” after red button Relay
“15” après bouton d'arrêt d’urgence
R33
“15” prima bottone arresto d’emergenza "15" before red button relay
“15” avant bouton d'arrêt d'urgence
R34
“15” dopo bottone arresto d’emergenza "15" after red button Relay
“15” après bouton d'arrêt d’urgence
R35
Intermittenza (4frecce) Flasher
Intermittence (4flèche)
FUNZIONI FUNCTIONS FONCTIONS
F1-a 30A
Fusibile 3a velocità ventola cabina Fuse for 3rd speed of cabin fan Fusible 3a vitesse ventilateur cabine
F2-a 20A
Fusibile ventola condensatore 2 Fuse for condenser fan 2 Fusible ventilateur condensateur 2
Uniquement si la climatisation est
installée. (
8)
- Retirer le volet d'accès (1,
8) aux
fusibles et relais (2,
8).
p
Remplacer toujours un fusible
défectueux par un modèle
équivalent. Ne jamais utiliser un
fusible réparé.
