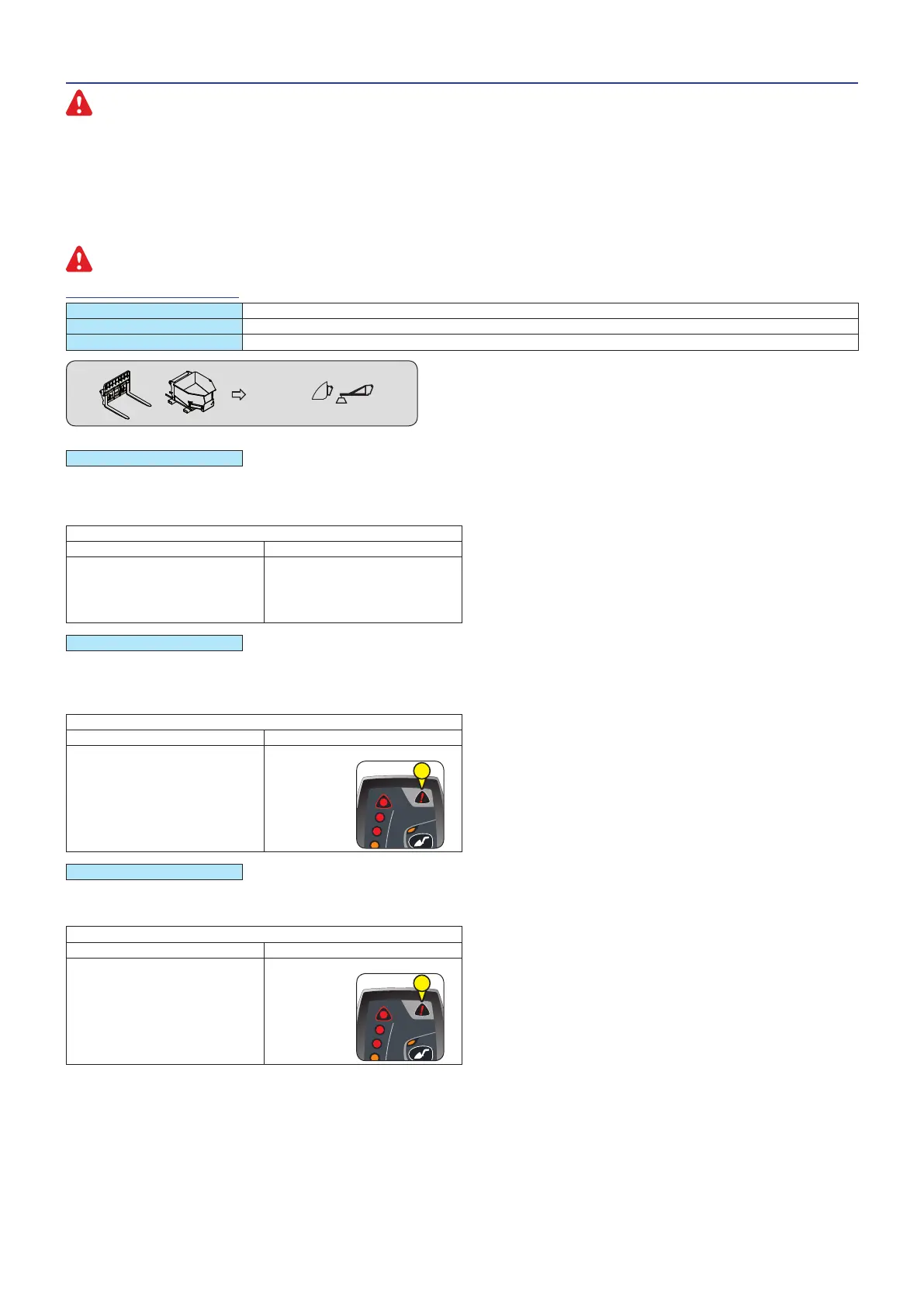

7 - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
The operator must respect the lift truck's load chart, and the operating mode according to the attachment.
This device warns the operator of the lift truck's longitudinal stability limits. However, lateral stability can reduce the load chart in the
upper part, and this reduction is not detected by the device.
Depending on the type of work required, the longitudinal stability limiter and warning device allows the operator to operate the lift truck
in complete safety.
UPDATE: In order to gain maximum advantage from the longitudinal stability limiter and warning device of your lift truck, contact your
dealer to receive the most recent available version of the software.
The cut-off of “AGGRAVATING” hydraulic movements can be configured in different ways.
IDENTIFICATION OF YOUR SETTINGS
CONFIGURATION 1
—>
I 09/2016
CONFIGURATION 2 I
—>
09/2016
CONFIGURATION 3 "BUCKET" mode is disabled when the lift truck is at a standstill.
STANDARD
MODE
kg
XX
"HANDLING" MODE
USE ON FORKS
CONFIGURATION 1
- By default, the device is in "HANDLING" MODE when the lift truck is started-up, except if "BUCKET" MODE has been selected before
switching off the ignition.
- Protection against forward tip-over
when making aggravating movements is ensured, except when the telescopic boom is retracted.
DEVICE STATUS
HALTED TELESCOPE(S) IN RETRACTED POSITION
A4-A5: Very slow intermittent sound alarm.
A6: Slow intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
- No sound alarm.
NOTE : For AUSTRALIA keep the configuration 1.
CONFIGURATION 2
- By default, the device is in "HANDLING" MODE when the lift truck is started-up, except if "BUCKET" MODE has been selected before
switching off the ignition.
- Protection against forward tip-over
when making aggravating movements is ensured, except when the telescopic boom is retracted.
DEVICE STATUS
HALTED TELESCOPE(S) IN RETRACTED POSITION
A4-A5: Very slow intermittent sound alarm.
A6: Slow intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
- No sound alarm.
- Warning light A9 lit.
A9
CONFIGURATION 3
- By default, the device is in “HANDLING MODE each time the lift truck is started.
- Protection against forward tip-over when making aggravating movements is ensured, except when the telescopic boom is retracted.
DEVICE STATUS
HALTED TELESCOPE(S) IN RETRACTED POSITION
A4-A5: Very slow intermittent sound alarm.
A6: Slow intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
- No sound alarm.
- Warning light A9 lit.
A9
