R8 PRO SERVICE GUIDE

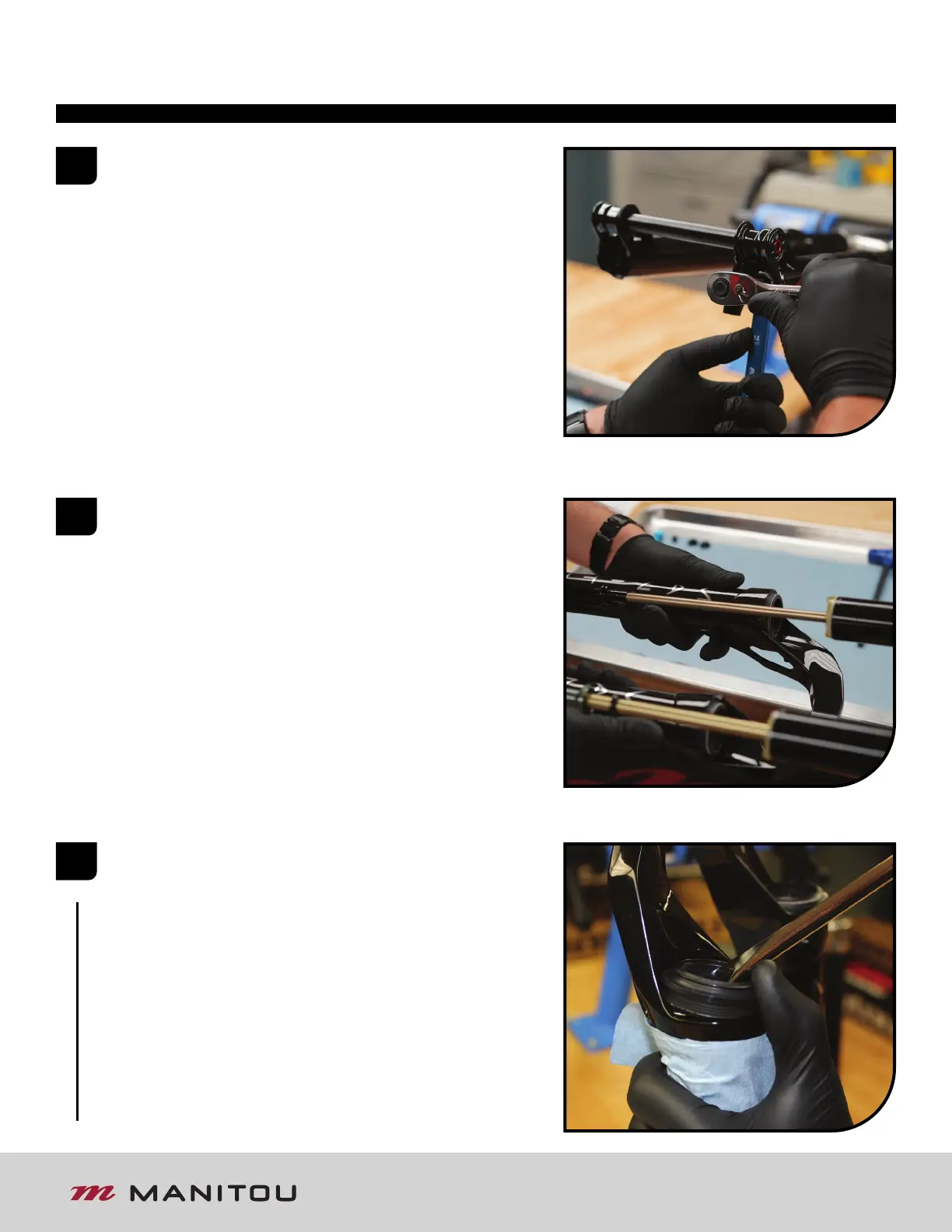

Hold lock-nut with a 14mm box end wrench. Using
8mm Socket, turn the compression rod clockwise until
compression rod is disengaged from the lock-nut.
Remove casting from fork. It is recommended this be
done over a drain pan as the lower casting contains
semi-bath oil. Allow oil in casting to drain out
before continuing to next step.
4
5
6
Using a downhill tire lever or similar tool, gently pry
the dust seals out of the casting.
NOTE: Do not damage the top of the casting when removing
the wiper seal. Use rag or similar to protect from contact
with tool.
CASTING REMOVAL & SERVICE
