R8 PRO SERVICE GUIDE
2

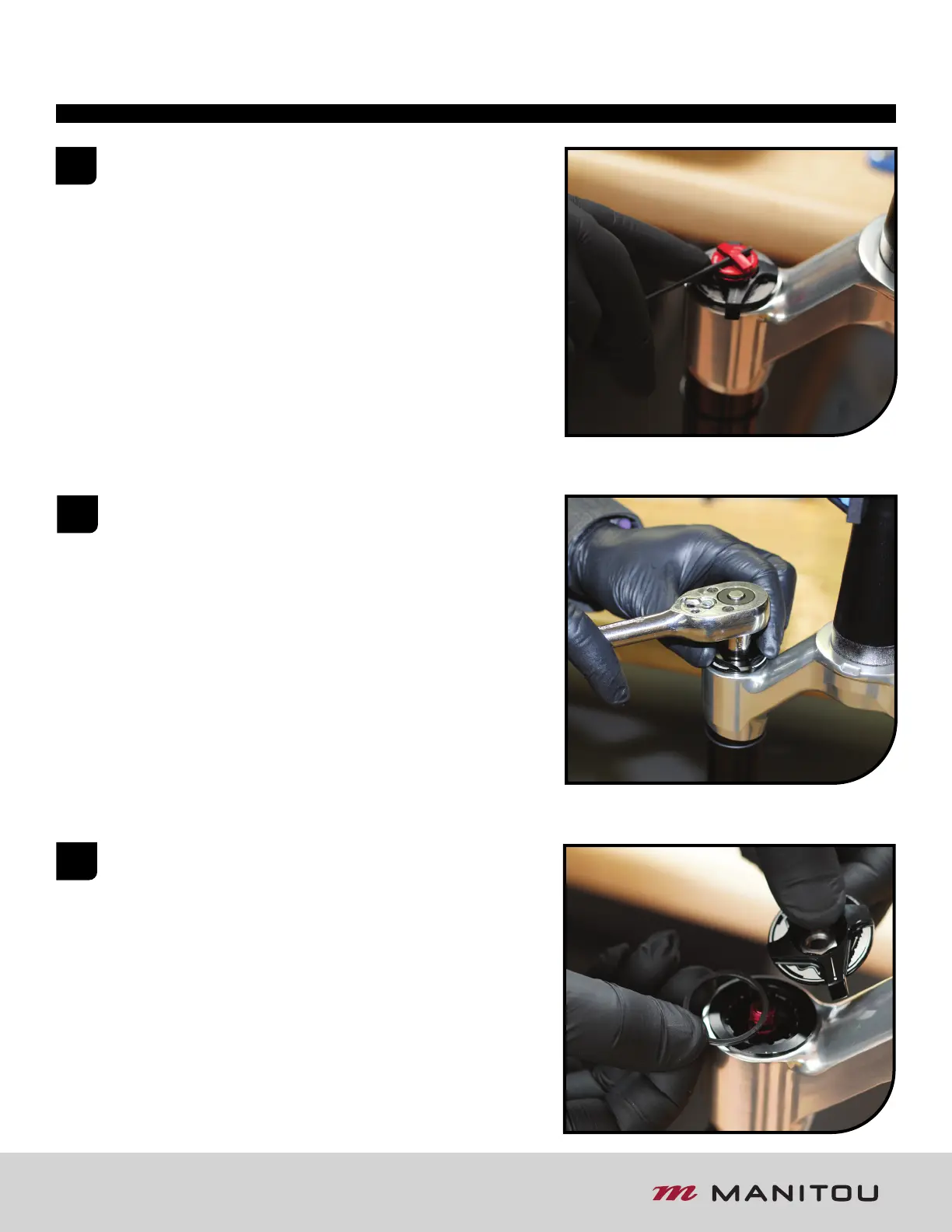

With a 11mm socket, unthread the exposed nut and remove
the black “VTT” adjustment knob.
Note: Be sure to hold the knob still while removing the
nut. The damper adjuster may be damaged if the knob
is over torqued.
1
Insert the short end of a 2mm Hex into the cross-hole of the
red “OPEN MODE ADJUST” knob.
VTT PRO - X MANUAL KNOB REMOVAL
Lift the entire knob assembly out of the top-cap. Further
disassembly of the knob assembly
is not needed.
3
