R8 PRO SERVICE GUIDE
1

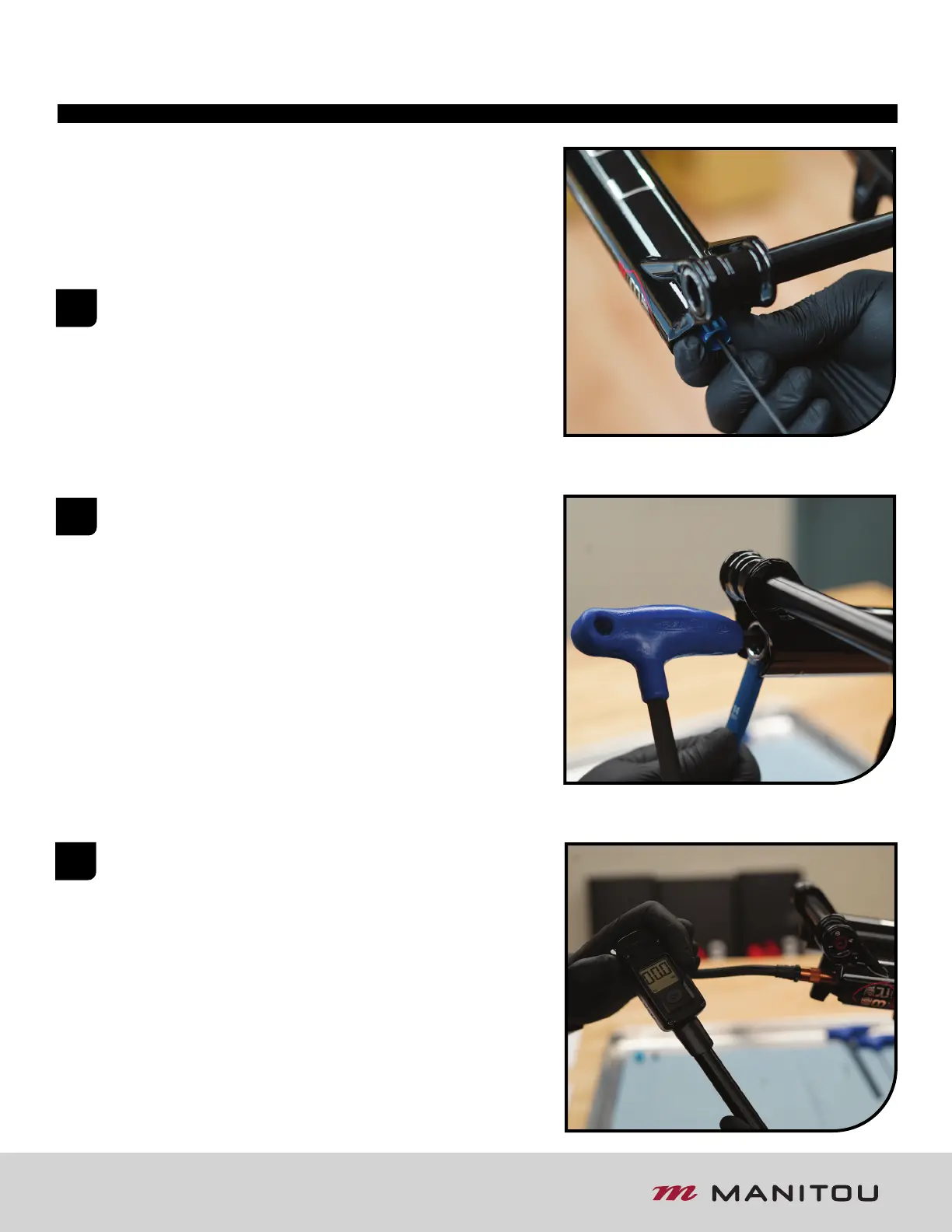

Remove rebound knob using a 2mm Hex wrench.
NOTE: Be sure to hold the knob still while removing the
screw. The damper adjuster may be damaged if the knob
is over torqued.
Hold lock-nut with 14mm end wrench. Insert a 8mm
Hex wrench into the end of the rebound rod and loosen
clockwise until rebound rod disengages from the lock-nut.
2
3
Unscrew air cap and attach shock pump. Depress pressure
bleed button until pump reads “Zero”. Depress Schrader
Valve a few times with 2mm hex wrench to ensure
all air is released.
Manitou recommends a full service anytime the casting is removed. If the fork is
new and only a travel change is needed, follow instructions 1-4 then skip to
page 27 for Travel change instructions.
CASTING REMOVAL & SERVICE
