R8 PRO SERVICE GUIDE
In order to change the travel of your R8 Pro, first remove the compression rod assembly. For travel change on new forks, bath
oil may be preserved by removing stanchion assembly while fork is placed flat on benchtop. Once the assembly is removed
arrange the travel spacers into the desired amount of travel using the charts on the following pages.

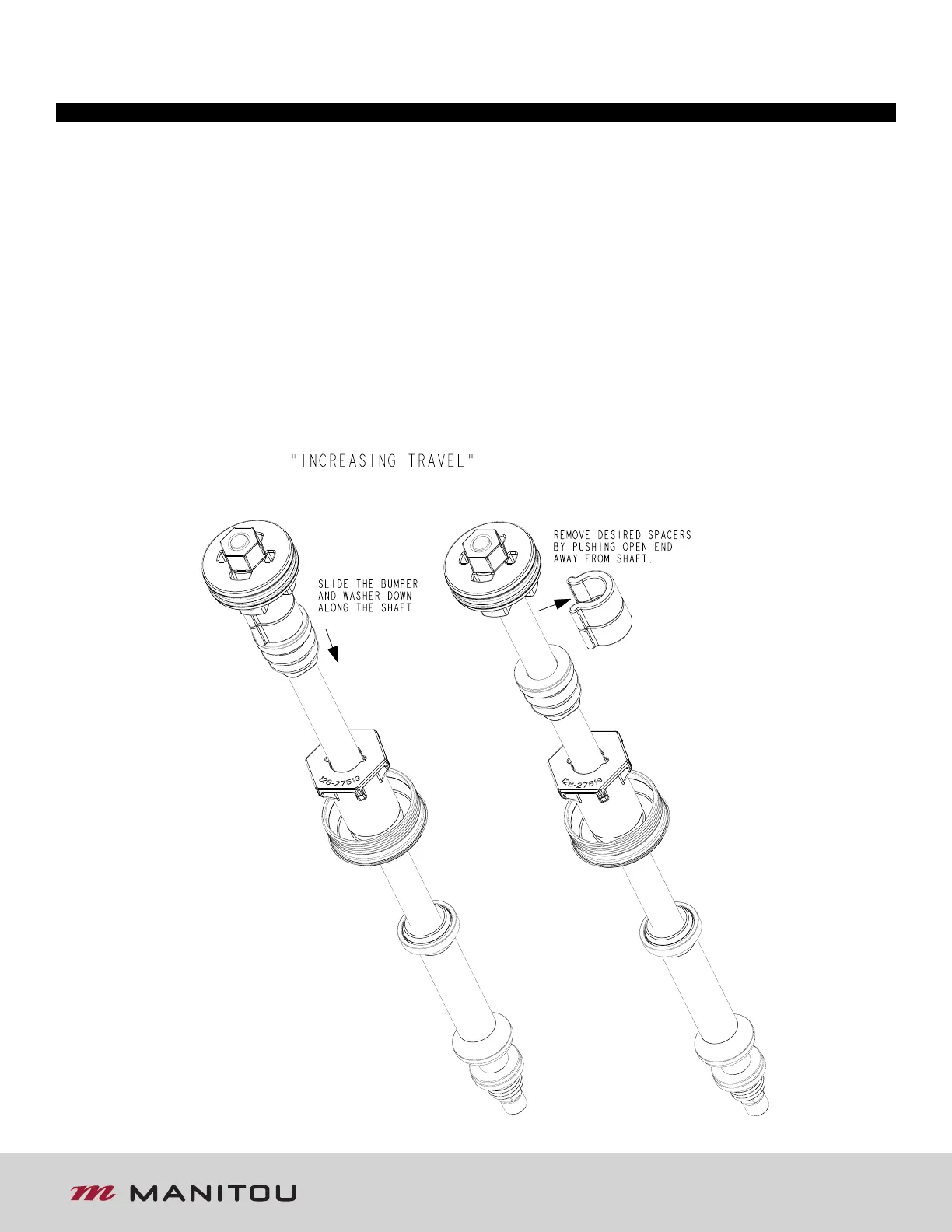

Increasing Travel: Each spacer removed increase travel & axel-to-crown by 10mm.
TRAVEL CHANGE
INCREASING TRAVEL
