23
R8 PRO SERVICE GUIDE

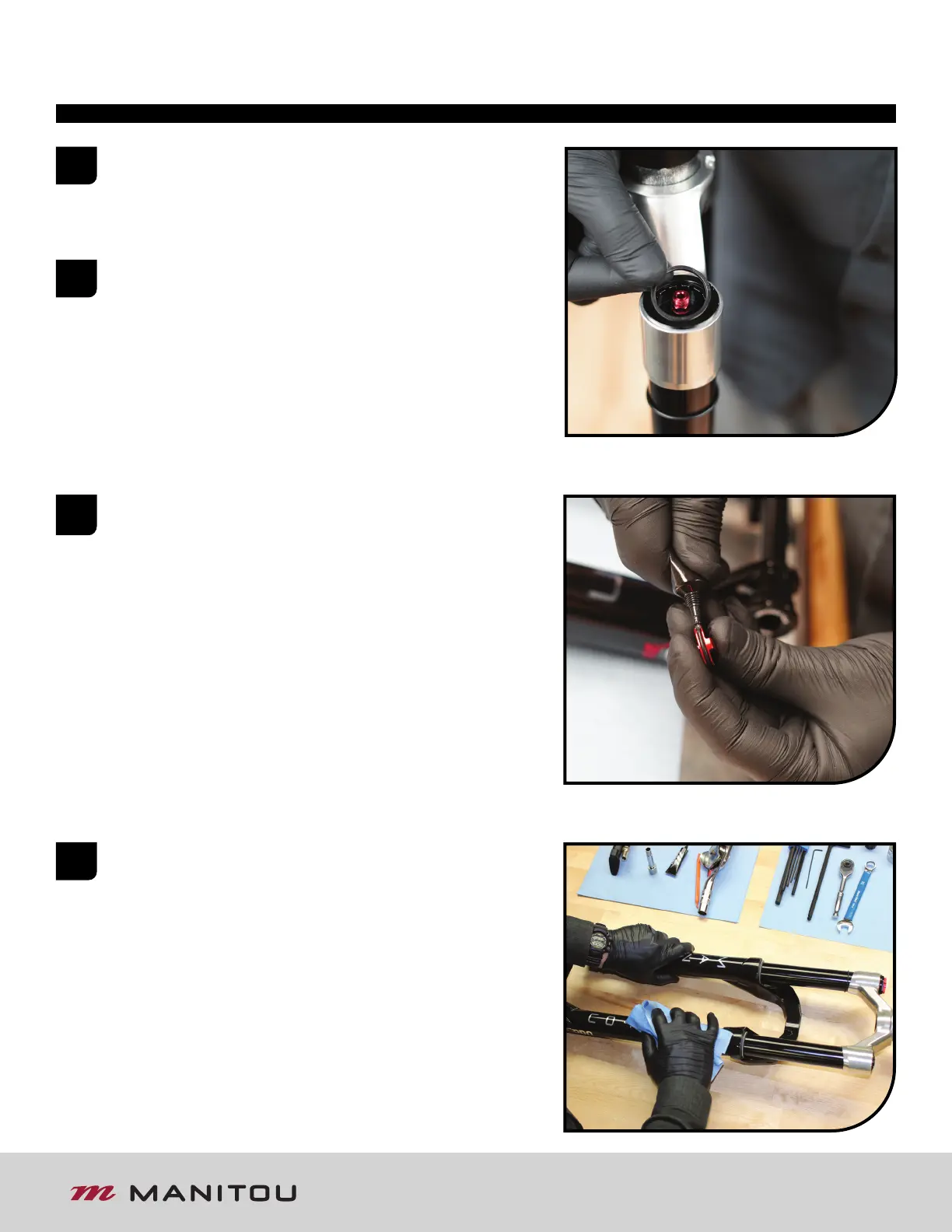

R8 PRO MANUAL KNOB INSTALLATION
1
2
4
Set the adjuster to “OPEN”. Install the black “VTT”
adjustment knob onto adjuster hex so the tab is parallel
to the crown. Check the knob rotates through all 3
positions. If needed, realign the knob on the adjuster hex
to prevent contact with the crown. With a 11mm socket,
thread on the lock nut and torque to 4-6 in-lb [0.5-0.7 Nm]
Note: Be sure to hold the knob still while installing the nut.
The damper adjuster may be damaged if the knob
is over torqued.
Clean fork and use a shock pump to set to desired
pressure. Lightly pull the casting away from the CSA
as you add air.
Clean the adjuster knobs with isopropyl and replace v-seal
into top-cap counter-bore.
3
Lubricate o-ring seal on red “OPEN MODE ADJUST” knob
with Slickoleum™ Grease. Align the red “OPEN MODE
ADJUST” knob in the center of the black “VTT” knob. Press
down firmly on the red knob until the o-ring seal passes
into the black “VTT” knob. Some rotation of the red “OPEN
MODE ADJUST” knob may be needed to align the hex to
fully insert the knob.
