Item Name Function
12
Side panel Covers the appliance wiring compartment
13
Appliance feet Can be adjusted in height to allow the appliance to be positioned
horizontally
14
Ventilation slots under‐
neath the appliance
Used for appliance ventilation
Must not be covered
15
Type plate Identifies the appliance
Components and function (gas table-top units)

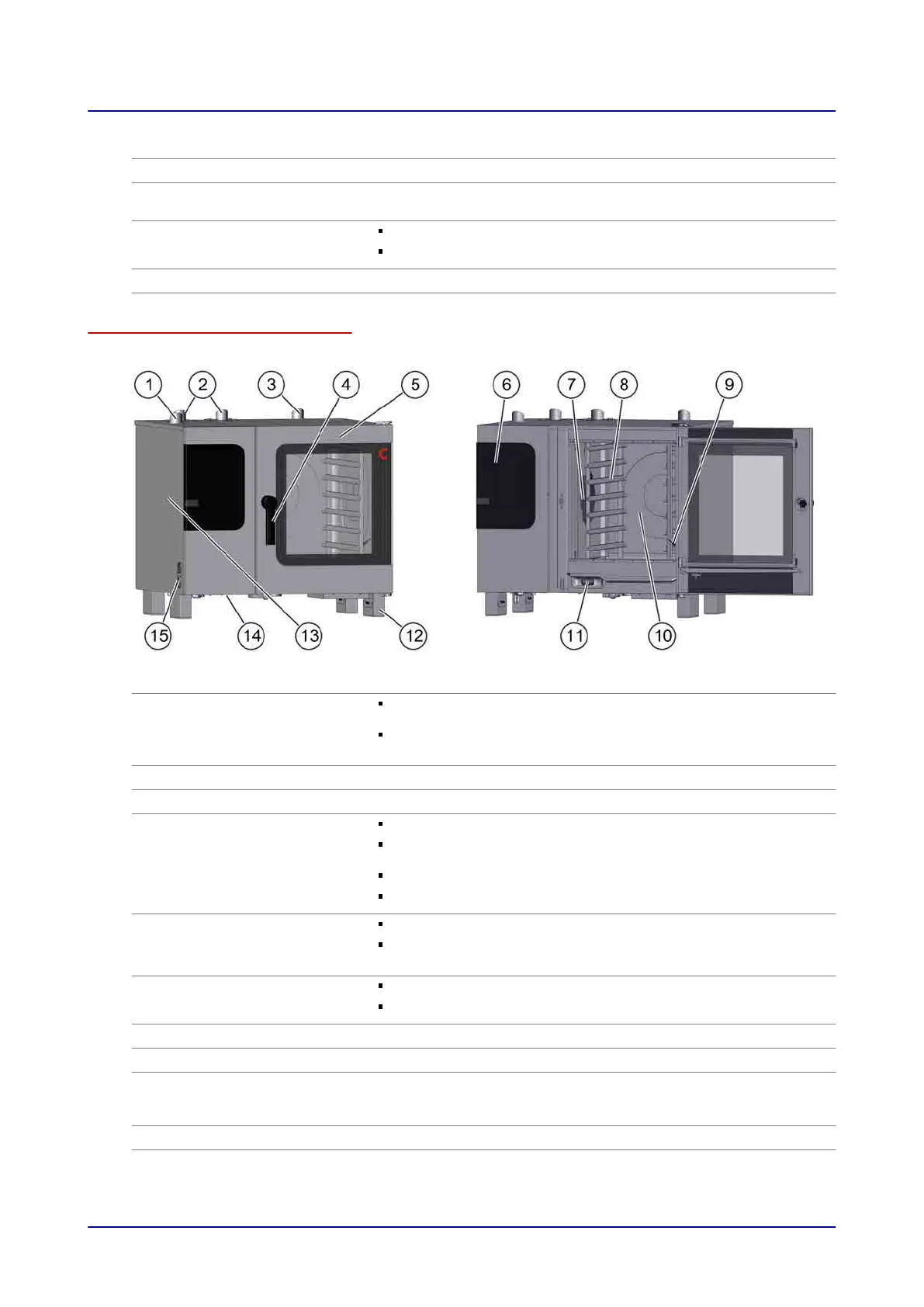

The following illustration shows a size 6.10 combi steamer as an example of all gas table-top models:
Item Name Function
1
Ventilation port External air intake for removing the moisture from the cooking
chamber
Smoothes out any pressure fluctuations in the cooking cham‐
ber
2
Exhaust outlet Takes away hot exhaust gases
3
Air vent Allows hot vapour to escape
4
Door handle Opens and closes the appliance door
Venting position for opening the appliance safely (“safety
catch”)
Sure-shut function
Antibacterial material containing silver ions ("HygienicCare")
5
Appliance door Closes the cooking chamber
Can slide back beside the appliance when opened in order to
save space (optional “disappearing door”)
6
Operating panel Used for operating the appliance
Antibacterial ("HygienicCare")
7
Suction panel Distributes the heat evenly inside the cooking chamber
8
Rack Holds standard-sized food containers
9
Core temperature probe,
sous-vide sensor (with ex‐
ternal socket)
Measures the core temperature of the food being cooked
10
Cooking chamber Contains the food during cooking
2 Design and function
Installation manual 17
