Item Name Function
11
Recoil hand shower Intended solely for rinsing out the cooking chamber with water
Retracts automatically into the holder after use
Antibacterial ("HygienicCare")
12
Appliance feet Can be adjusted in height to allow the appliance to be positioned
horizontally
13
Side panel Covers the appliance wiring compartment
14
Ventilation slots under‐
neath the appliance
Used for appliance ventilation
Must not be covered
15
Type plate Identifies the appliance
Components and function (gas floor-standing units)

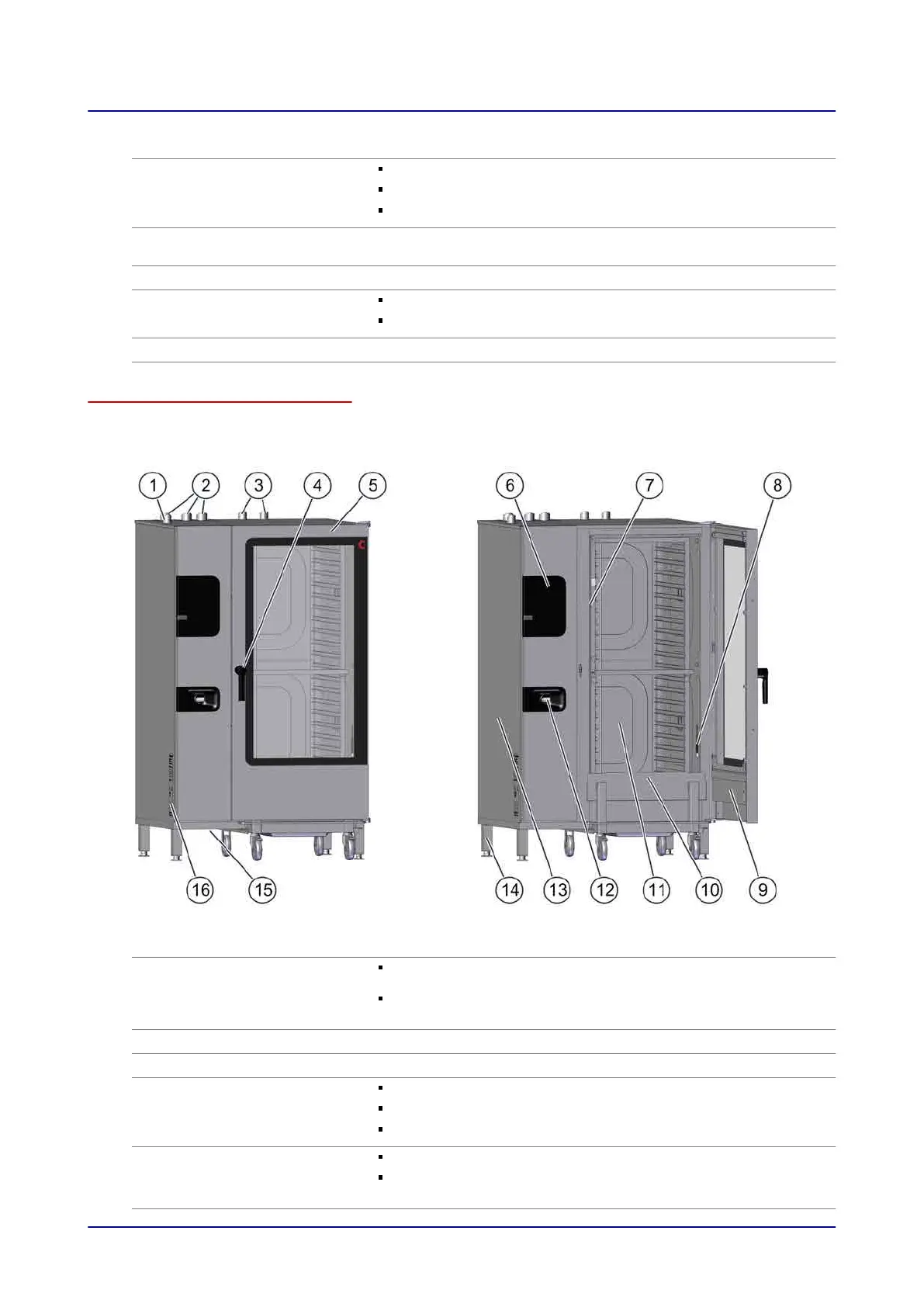

The following illustration shows a size 20.20 combi steamer as an example of all gas floor-standing
models:
Item Name Function
1
Ventilation port External air intake for removing the moisture from the cooking
chamber
Smoothes out any pressure fluctuations in the cooking cham‐
ber
2
Exhaust outlet Takes away hot exhaust gases
3
Air vent Allows hot vapour to escape
4
Door handle Opens and closes the appliance door
On-latch position for opening the appliance safely
Antibacterial material containing silver ions ("HygienicCare")
5
Appliance door Closes the cooking chamber
Can slide back beside the appliance when opened in order to
save space (optional “disappearing door”)
2 Design and function
Installation manual 18
