HYDRAULIC SYSTEM GRT880 SERVICE MANUAL
2-54
Published 10/19/2017, Control # 618-00
22 Gauge Port (GP7)
23 Inlet Port (P)
24 Pressure Relief Valve - 2800 psi
25 Gauge Port (GP8)
26 Gauge Port (GP5)
27 Work Port - Swing Brake Apply (SB)
28 Gauge Port (GP3)
29 Work Port - Swing Brake Release (SBR)
30 Work Port - Brakes (BR)
31 Gauge Port (GP4)
32 Tank Port (T)
33 Work Port - Tele Stage Selector (CF)
34 Check Valve
35 Work Port - Steering (STR)
36 Load Sense Port (1)

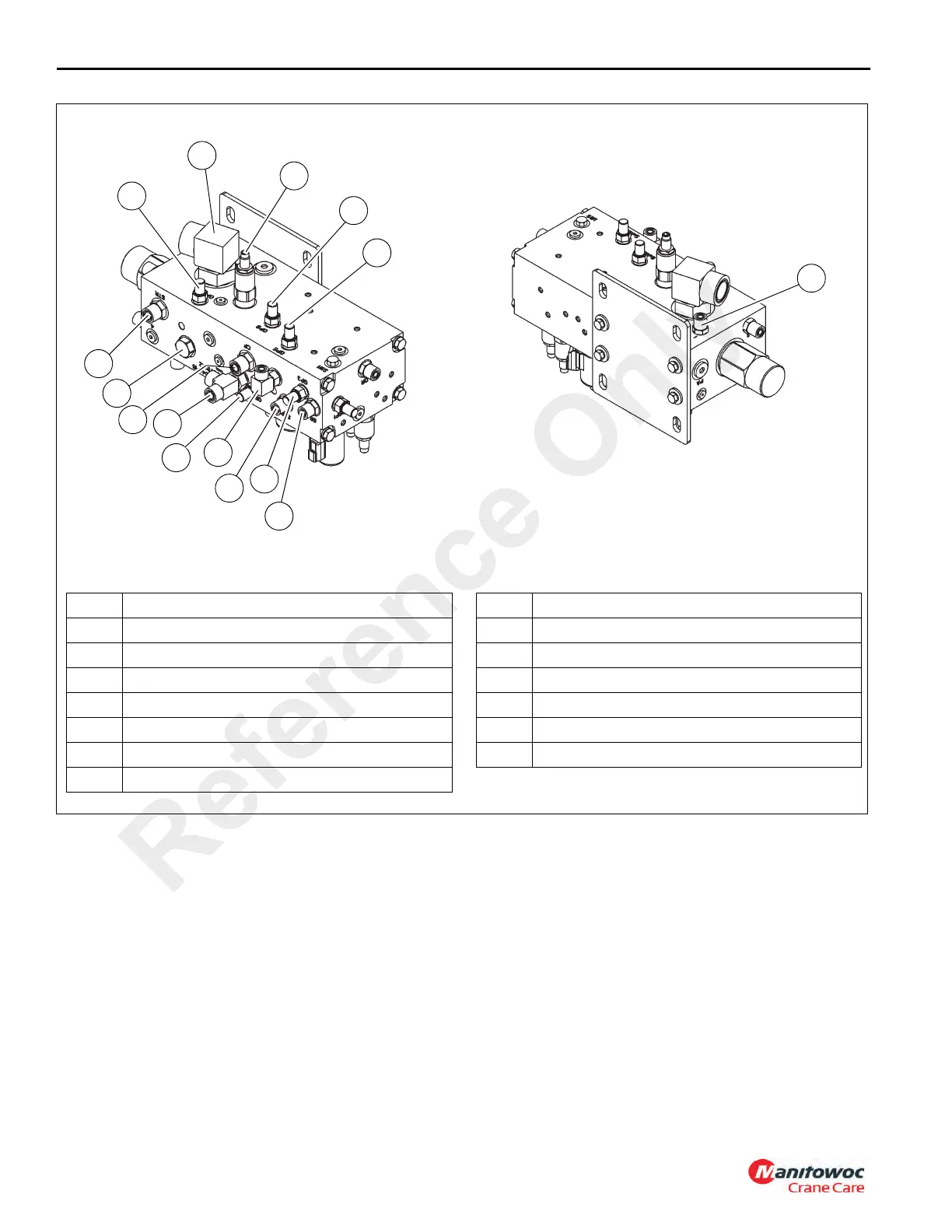

FIGURE 2-27
8804-93
23
24
25
26
22
8804-95
36
28
29
30
31
27
32
33
34
35
Accessory Manifold Valve
