GRT880 SERVICE MANUAL MAINTENANCE AND LUBRICATION
9
Published 10/19/2017, Control # 618-00
GROVE
Steering and Suspension
Item
Lube Point
Description
Figure
No.
Approved
Lubricant
Lube
Capacity
Lube Interval Application
20
Steer Cylinder
Pivot Pins
Figure 9-4 A
Until grease
extrudes.
500 hours or 3 months. 8 grease fittings.
21
Upper and Lower
King Pins
Figure 9-4 A
Until grease
extrudes.
500 hours or 3 months. 8 grease fittings.
22
Tie Rod Pivot
Pins
Figure 9-4 A
Until grease
extrudes.
500 hours or 3 months. 4 grease fittings.
23
Lockout Cylinder
Pivot Pins
Figure 9-4 A
Until grease
extrudes.
500 hours or 3 months. 4 grease fittings.

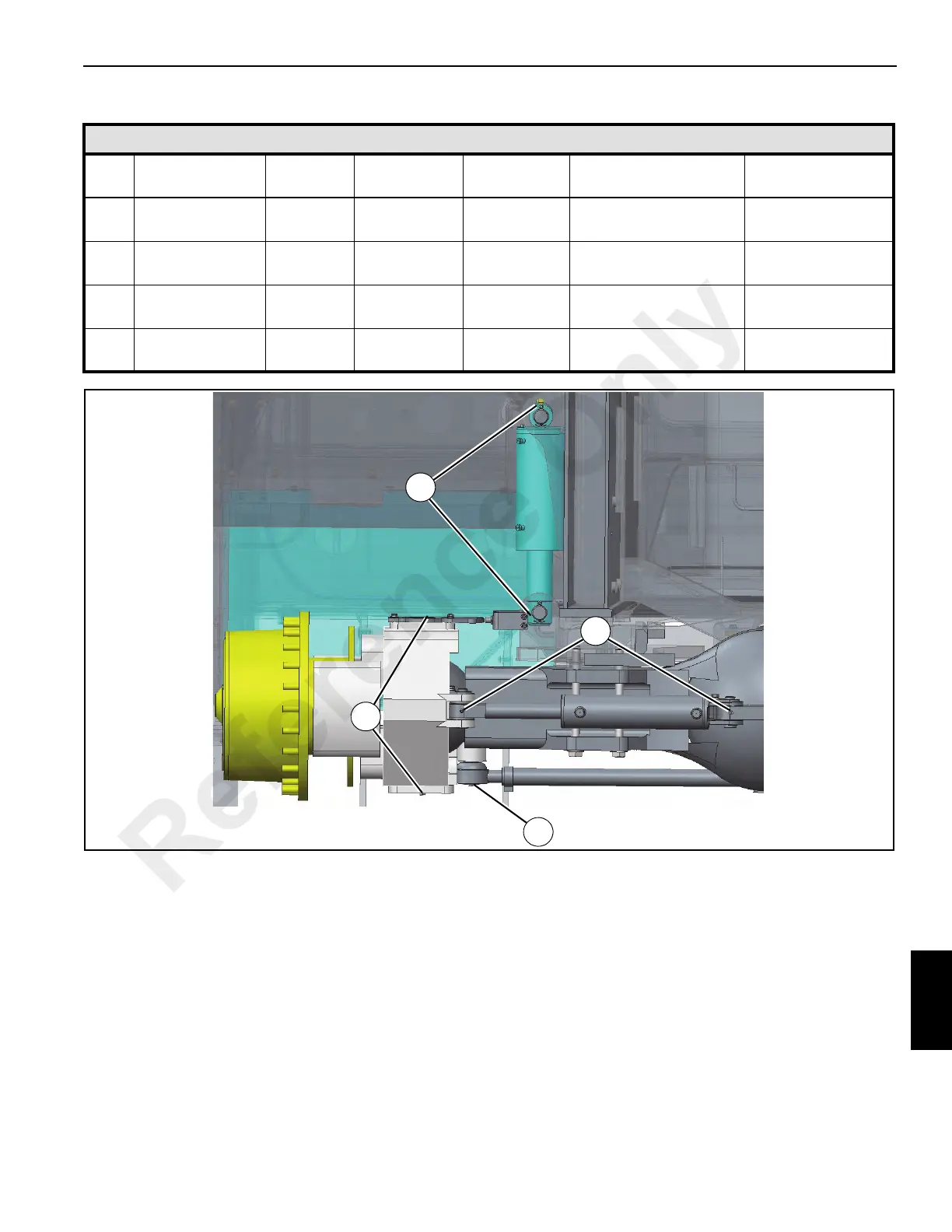

FIGURE 9-4
8594
23
22
21
20
