10. Tighten the drain cock at the bottom of the radiator.
11. Mount the surge tank to the frame using the two bolts,
washers, lockwashers and nuts.
12. Connect the hose between the surge tank and the
radiator and the hose from the engine to the surge tank.
Tighten clamps to 5.7 Nm (50 in-lb).
13. Fill the engine coolant system, refer to Engine
Antifreeze/Coolant Fill Procedure, page 7-17. Start the
engine, operate all systems and check for leaks.
14. Install the hood assembly.
15. Install the bolts and nuts holding the rear engine hood
panel to the engine hood.
16. Install the hood top door assembly.
Radiator Fill and Servicing
Refer to Maintenance and Lubrication, page 9-1 for complete
fill and service procedures.

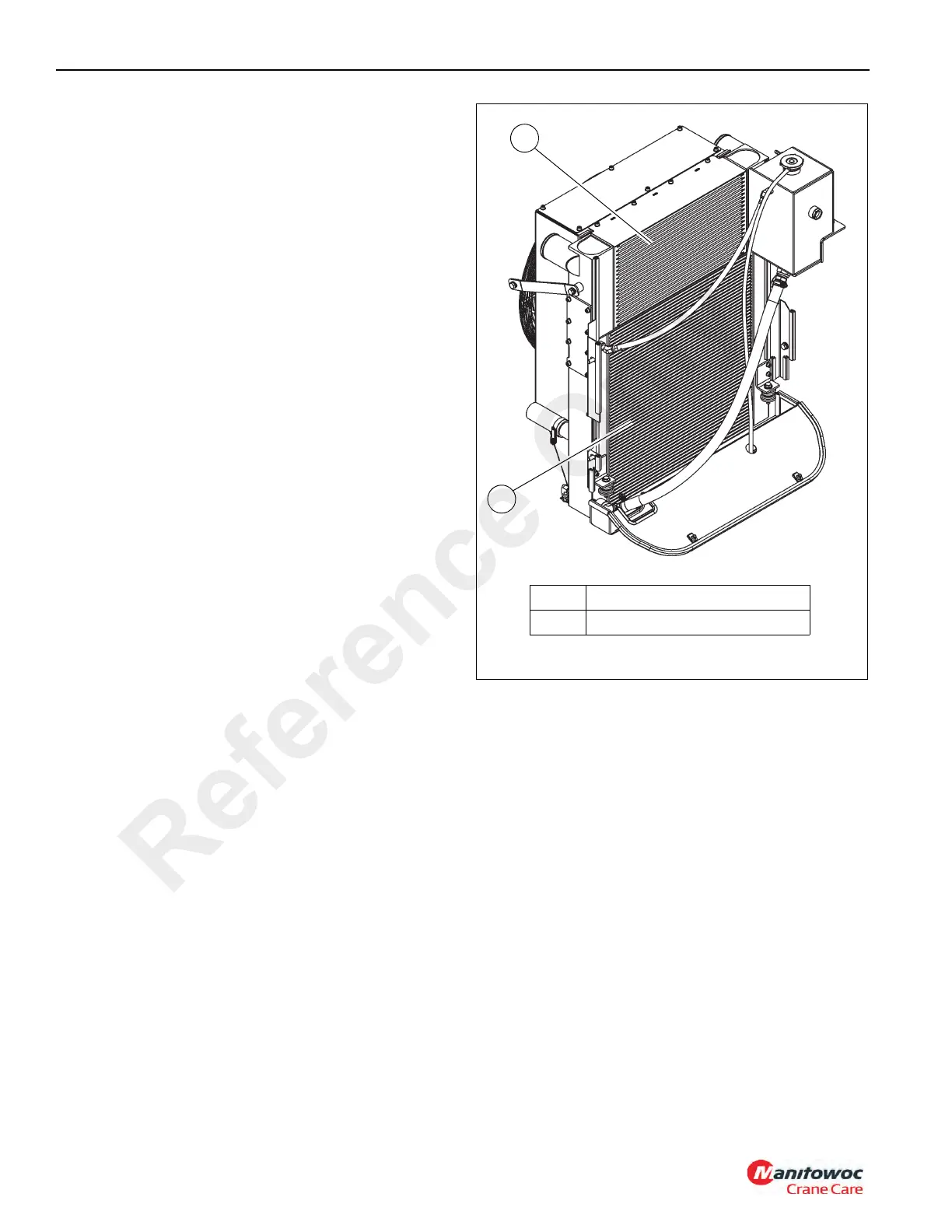

FIGURE 7-15
1
2
8804-110
1 Engine Coolant Radiator
2 CAC Assembly
