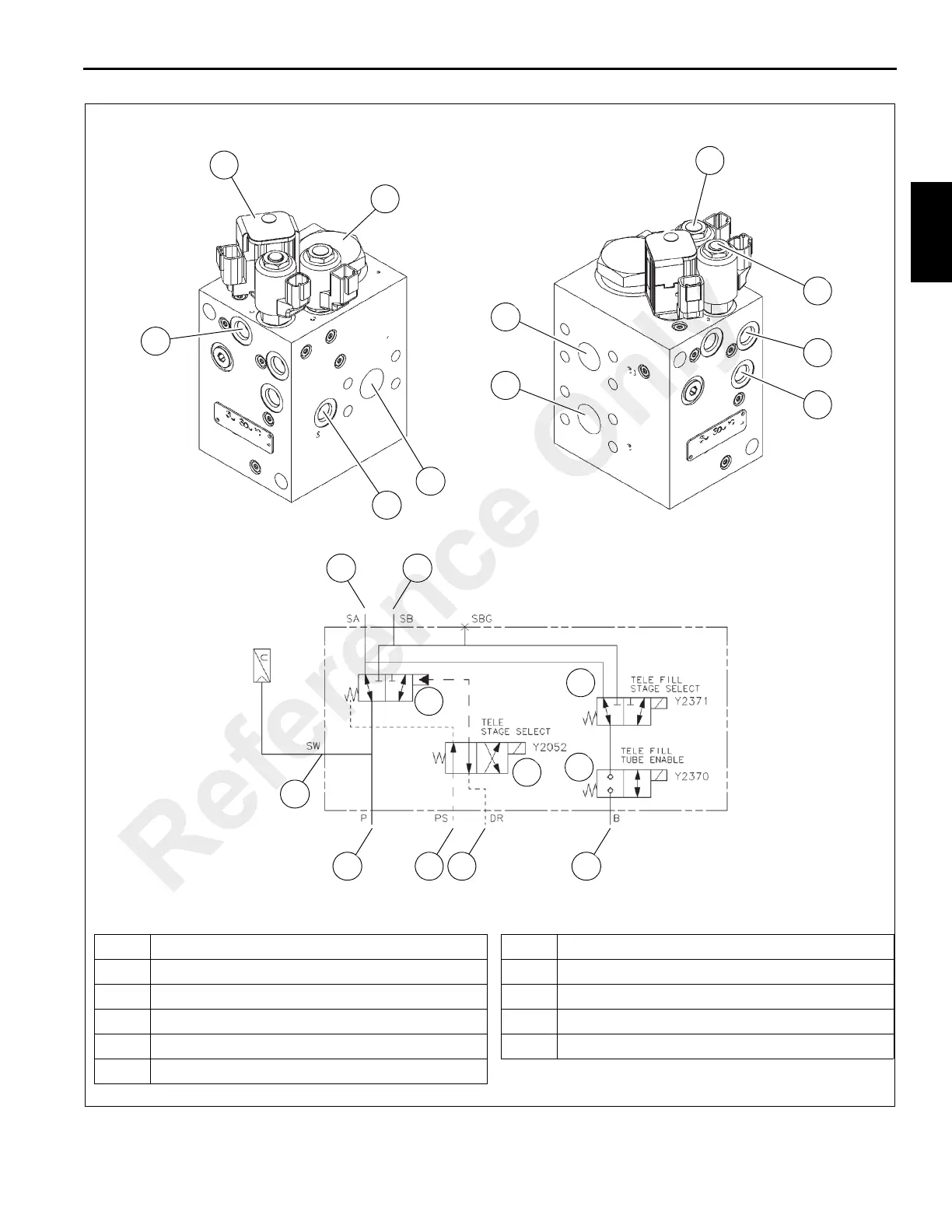

FIGURE 2-35
1 Control Valve - Tele Fill Stage Select
2 Pilot-Operated Control Valve
3 Pressure Port (P)
4 Pressure Transducer Port (SW)
5 Pressure Port (B)
6 Control Valve - Tele Stage Select
7 Control Valve - Tele Fill Tube Enable
8 Pilot Pressure Port (PS)
9 Drain Port (DR)
10 Work Port - Cylinder Stage 1 (SA)
11 Work Port - Cylinder Stage 2 (SB)
Telescope and Tele Fill Stage Select Control Manifold
7
2
4
8
1
6
5
10
3
11
9
7
2
1
6
4
8
5
10
3
11
9
