Manitowoc Grove GRT880 Service Manual

2-67
GROVE
GRT880 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 10/19/2017, Control # 618-00

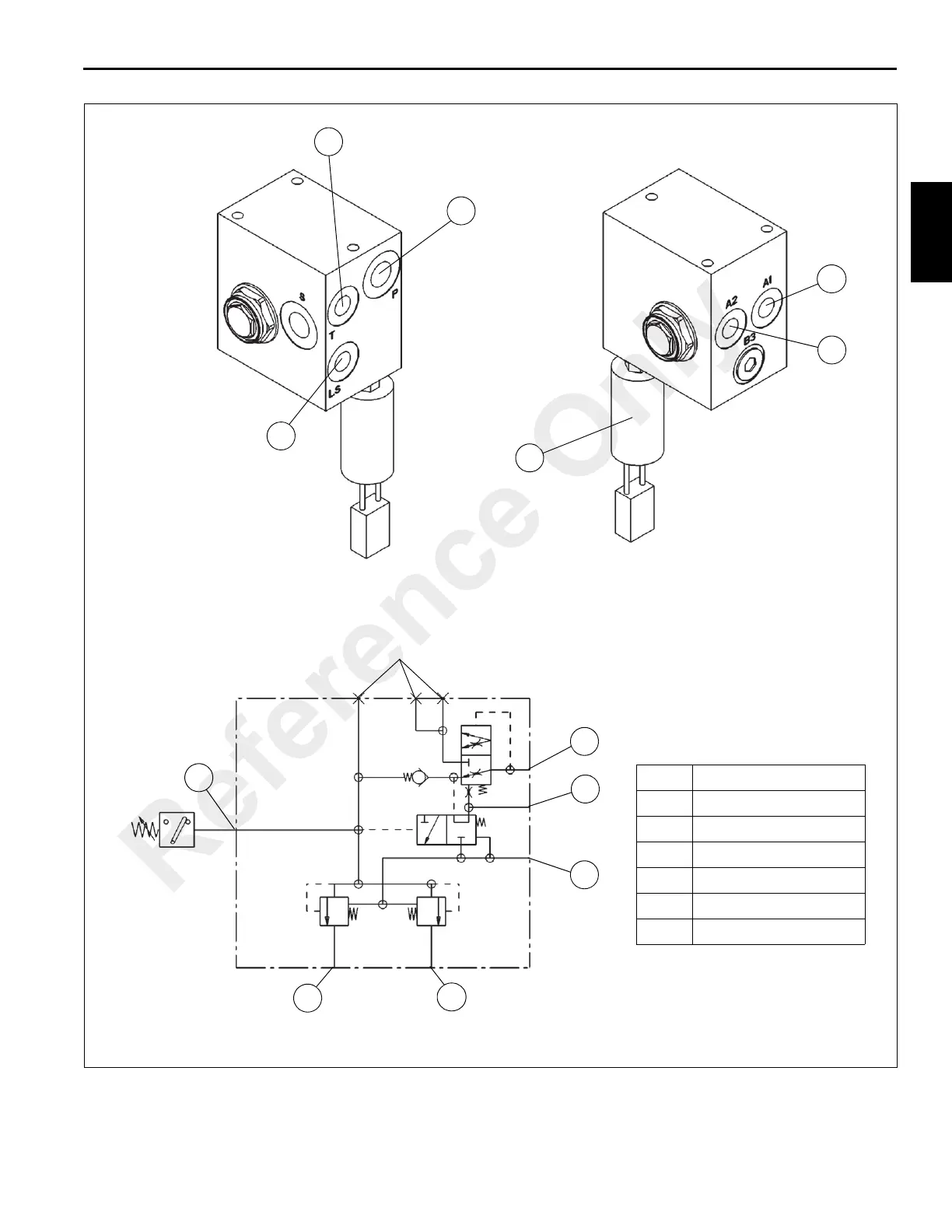

FIGURE 2-36
7752-01
7752-02
7752-03
Item Description
1 Load Sense Port (LS)
2 Tank Port (T)
3 Pressure Port (P)
4 Accumulator Port (1A)
5 Accumulator Port (2A)
6 Pressure Switch
These ports plugged
2
1
5
3
4
6
2
1
5
3
4
6
Dual Accumulator Charge Valve
Reference Only
