Manitowoc Grove GRT880 Service Manual

ELECTRICAL SYSTEM GRT880 SERVICE MANUAL
3-6
Published 10/19/2017, Control # 618-00
1 K102 - Accessory Relay
2 K105 - Boom Extension Actuator In Relay
3 K106 - Boom Extension Actuator Out Relay
4 K107 - Horn Relay
5 F1 - Keyswitch Ignition
6 F2 - System Wake Up
7 F3 - Ignition Signal From E-Stop Switch
8 D1 - Fused Keyswitch Ignition
9 D2 - Brake Pedal Pressure Switch
10 D5 - Horn
11 D3 - Hazard/Signal Lights
12 D4 - Marker Lights
13 F4 - Accessory Relay Fused Power
2
1
3
4
9
10
7
5
8
6
11
12
13

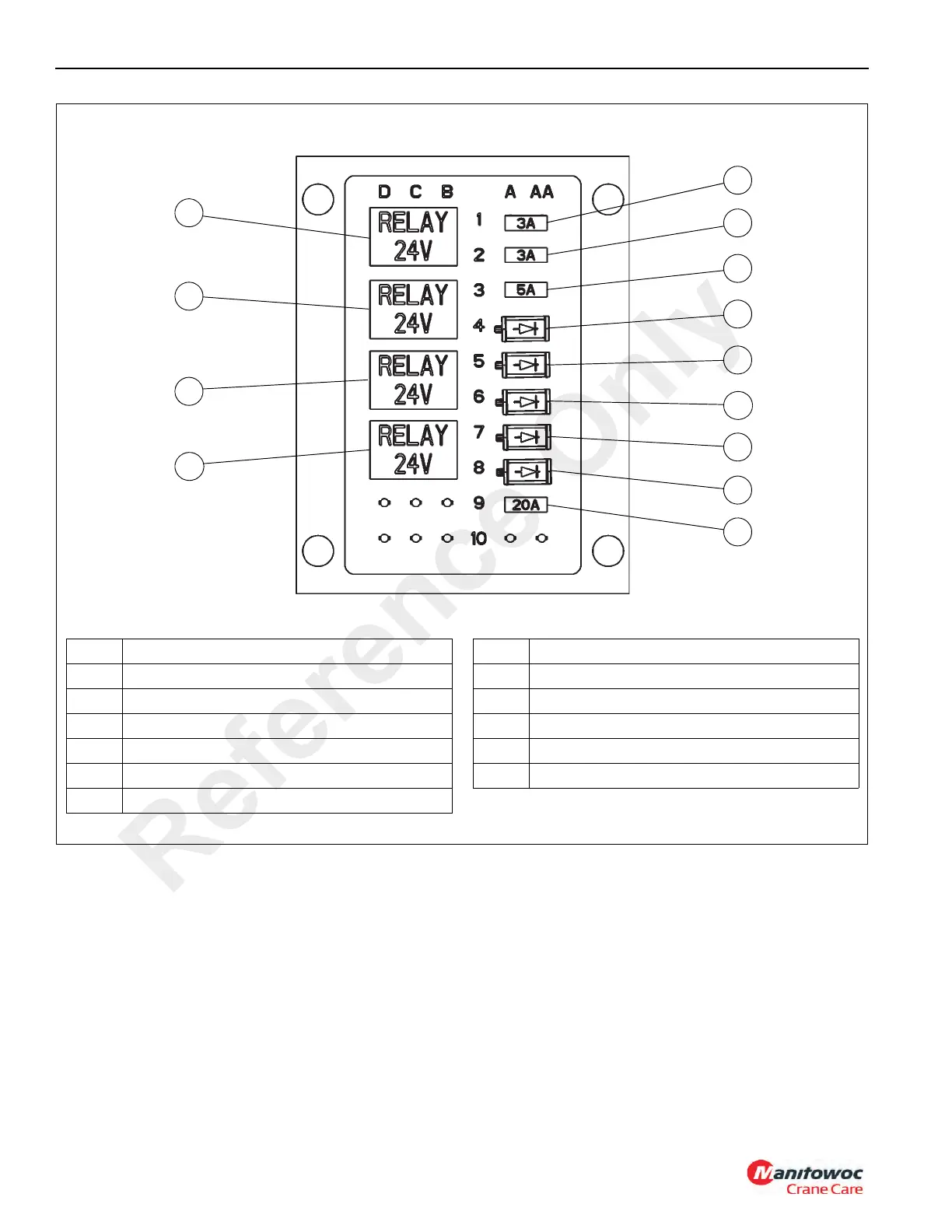

FIGURE 3-5
Cab Fuse and Relay Box 2
Reference Only
