GRT880 SERVICE MANUAL HOIST AND COUNTERWEIGHT
5
Published 10/19/2017, Control # 618-00
GROVE

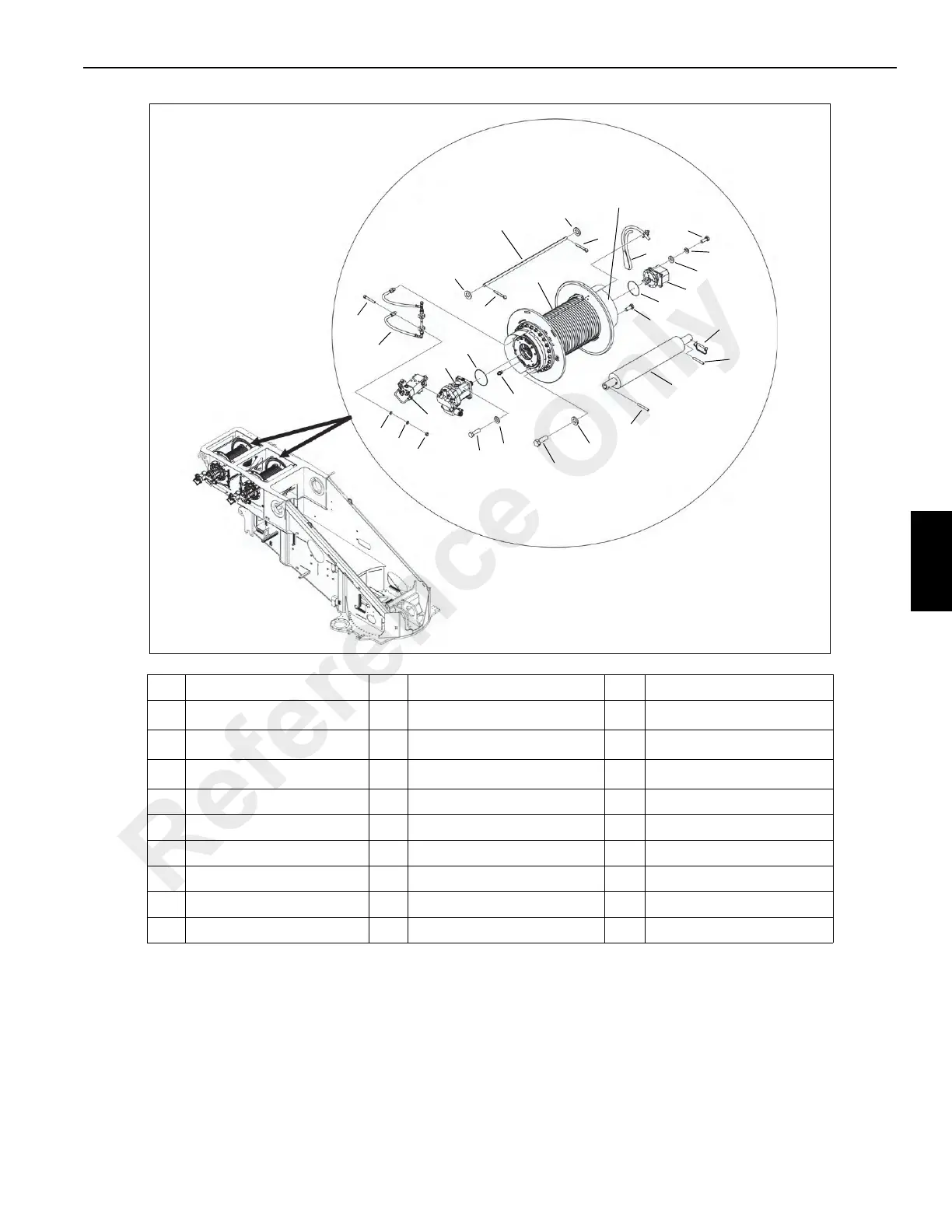

FIGURE 5-4
1
7
22
17
9
6
20
16
25
24
26
27
28
14
19
11
13
23
21
5
15
3
12
12
18
4
2
2
20
20
8743
8
1 Hoist 10 Shaft 19 Flat Washer
2
Cotter Pin
11 Hoist Roller 20 Flat Washer
3
O-Ring
12 Roll Pin 21 Narrow Flat Washer
4
Cable Wedge
13 Capscrew 22 O-Ring
5 Limit Switch Assembly 14 Capscrew 23 Lockwasher
6 2 Speed Motor Piston 15 Capscrew 24 Sight Glass
7 Shaft 16 Capscrew 25 SHCS
8 Bearing Support 17 Straight Thread Adapter 26 Washer
9 Motor Control Valve Assy 18 Pin 27 Lockwasher
28 Nut
Reference Only
