Manitowoc Grove GRT880 Service Manual

7-27
GRT880 SERVICE MANUAL POWER TRAIN
7
Published 10/19/2017, Control # 618-00
GROVE
15.

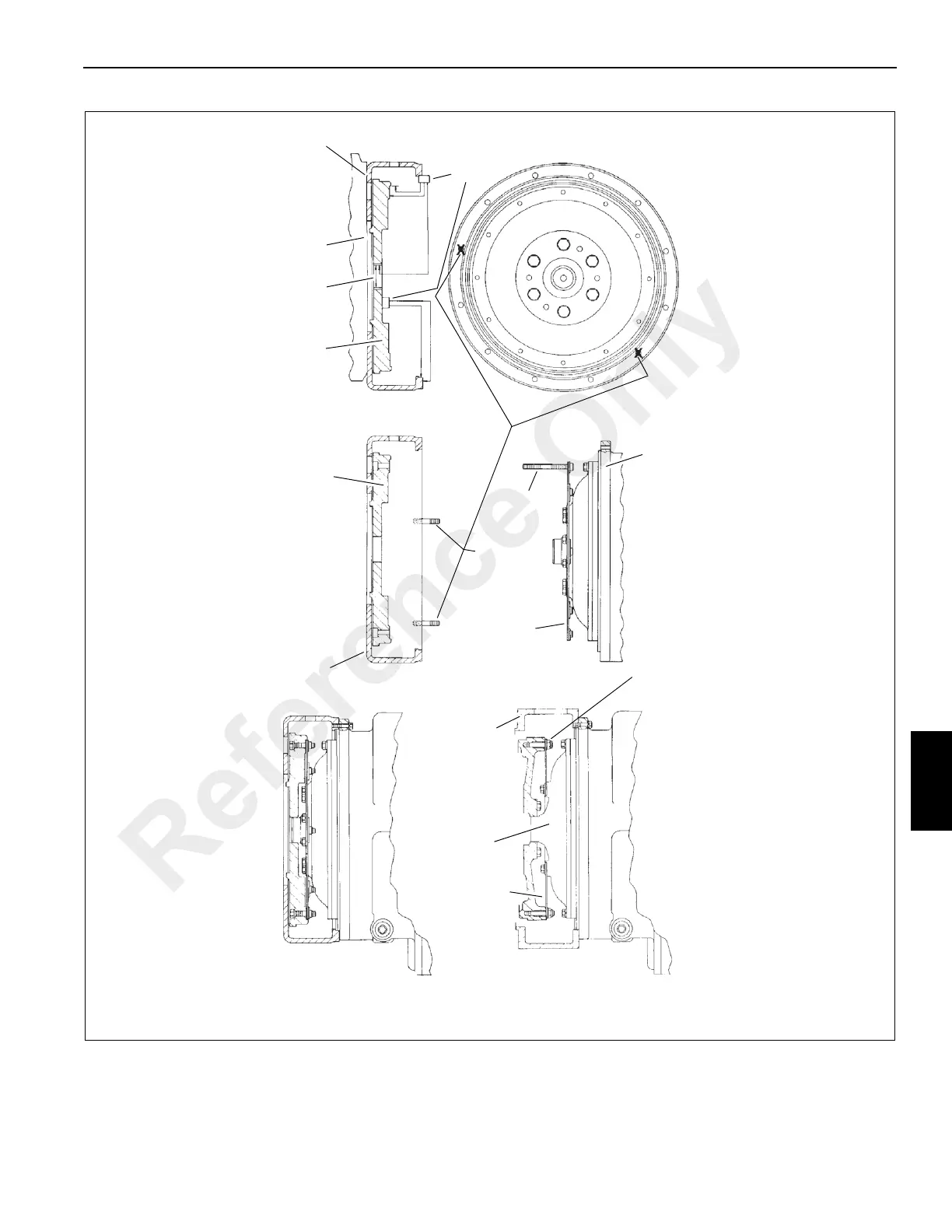

Mount
Dial
Indicator
Here
Flywheel
Housing
Engine
Flywheel
Pilot Bore
Flywheel
6.4 cm
(2-1/2 in)
Aligning
Studs
Drive
Plate
10.2 cm
(4 in.)
Stud
Converter
Housing
Flywheel
Special Stud, Washer And
Self-lock Nut Furnished By
Engine Manufacturer
Flywheel
Housing
Impeller
Cover
(3) Intermediate
Drive Plates
Figure 1
FIGURE 7-18
Figure 4
Figure 3
Flywheel
Housing
Figure 2
Reference Only
