RT530E-2 SERVICE MANUAL POWER TRAIN
GROVE
7

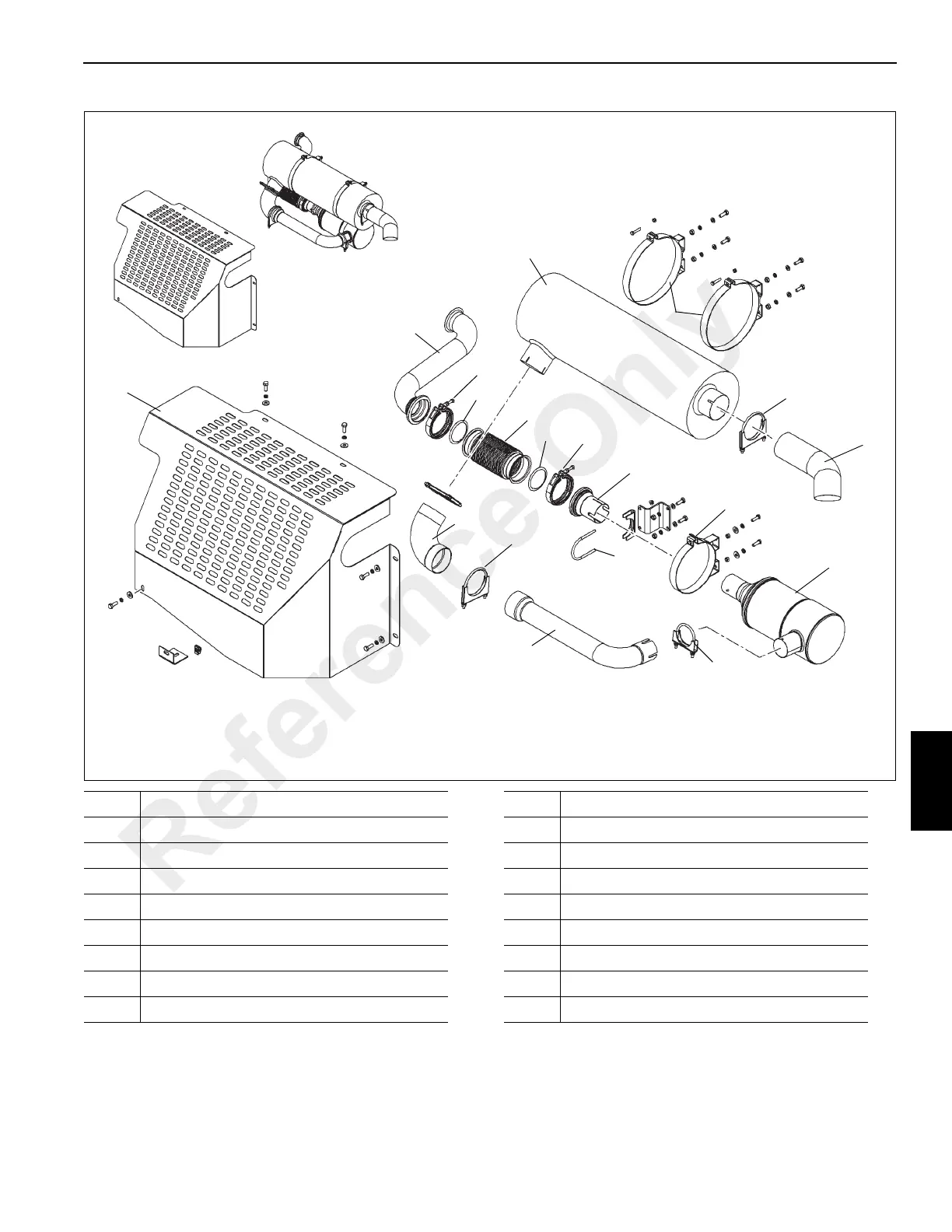

FIGURE 7-9
Muffler and Diesel Oxidation Catalyst - Tier 4
1
2
3
4
5
6
7
8
9
8088
11
12
10
14
15
13
12
13
16
3
Item Description
1 Sheet Metal Guard
2 Tail Pipe
3 Muffler Clamp
4 Muffler
5 Mounting Band
6 Exhaust Tube
7 Muffler Clamp
8 Mounting Band
Item Description
9 Diesel Oxidation Catalyst
10 Muffler Clamp
11 Tube Exhaust Weldment
12 Clamp
13 Gasket
14 Bellows
15 Tube Exhaust Weldment
16 Elbow
Reference Only
