LUBRICATION RT530E-2 SERVICE MANUAL
9-20 Published 4-22-15, Control # 556-00
Item
Lube Point
Description
Figure
No.
Approved
Lubricant
Lube
Capacity
Lube Interval Application
Hoist
45 Main Hoist Figure 9-9
AGMA
Extreme
Pressure Gear
Lubricant
A6-829-100213
5.2 l (5.5
qt)
• Check and fill every
50 hours or weekly
• Drain and fill every
1000 hours or 12
months
Oil level must be
visible in the sight
glass
46 Auxiliary Hoist Figure 9-9
AGMA
Extreme
Pressure Gear
Lubricant
A6-829-100213
5.2 l (5.5
qt)
• Check and fill every
50 hours or weekly
• Drain and fill every
1000 hours or 12
months
Oil level must be
visible in the sight
glass

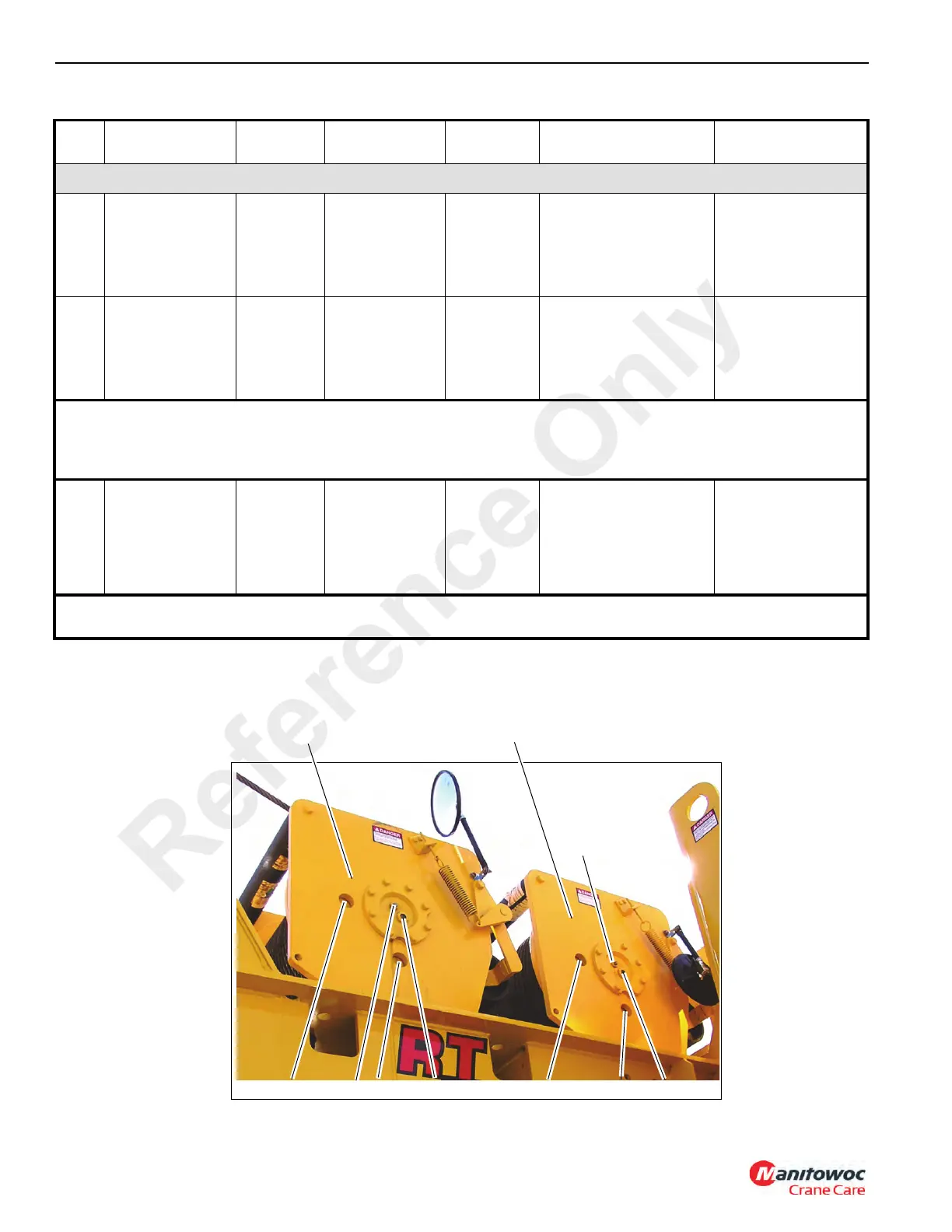

NOTE: Line up the Fill/Drain Plug with the upper cutout hole (A). Let hoist sit idle for 20 minutes for an accurate reading.
Ensure hoist is level and oil is within 21°C ±11°C (70°F ±20°F). If oil level is not visible in sight glass, the hoist may
be underfilled. Oil escaping from vent plug (B) is an indication the hoist may be overfilled. If hoist is over filled,
move the Fill/Drain Plug to the lower cutout hole (C) and drain until oil level falls within the sight glass (D).
47
Cable Follower
(Arms)
Figure 9-9
EP-MPG
Extreme
Pressure
Multipurpose
Grease
A6-829-003477
Thoroughly
coat
250 hours or 3 months Spray on
NOTE: Lubricate more frequently than interval indicated in table if environmental conditions and/or operating conditions
necessitate.
7114-7
A
C
A
C
B
B
46
45
D
D
Reference Only
