Manitowoc Grove RT530E-2 Service And Maintenance Manual

BOOM RT530E-2 SERVICE MANUAL
4-8 Published 4-22-15, Control # 556-00

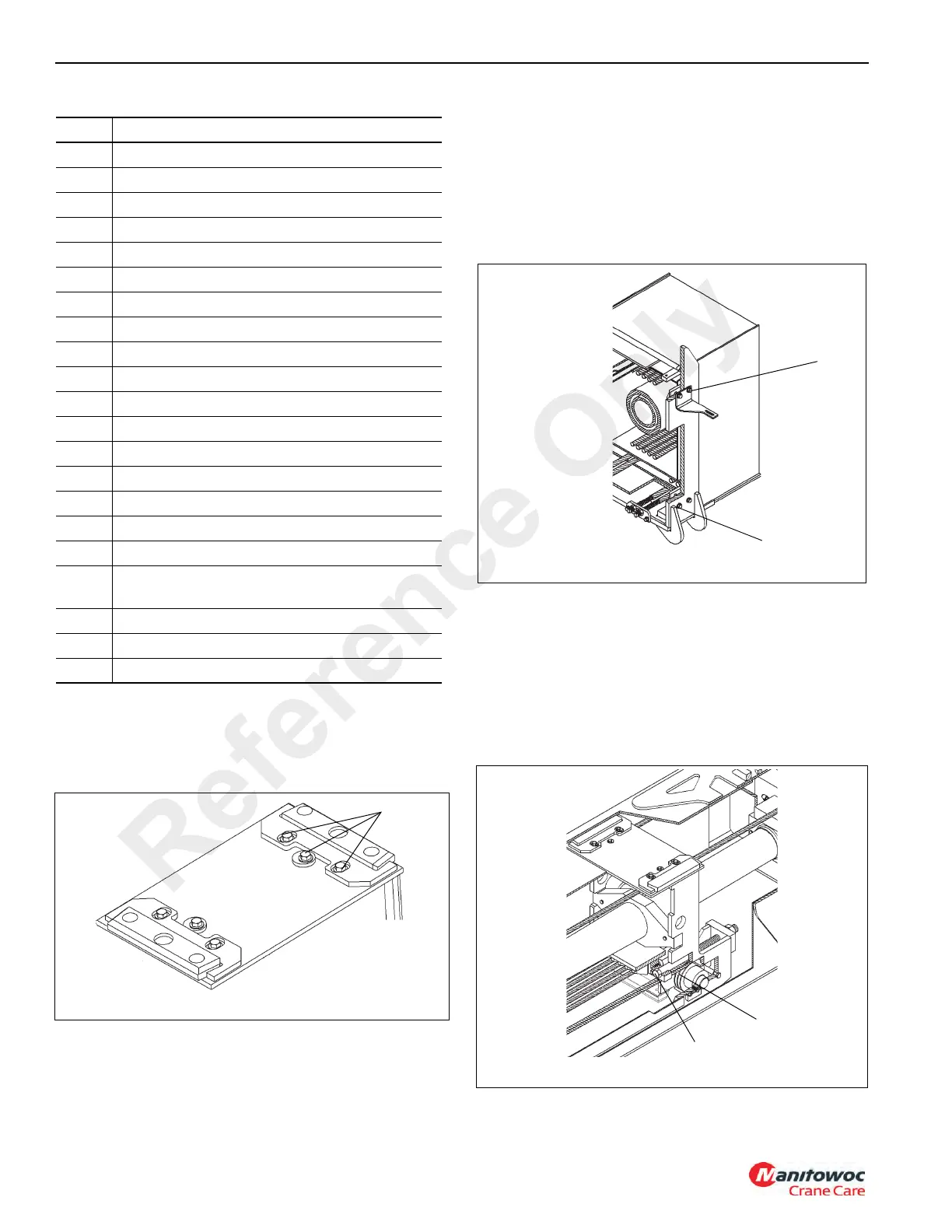

2. Remove the capscrews, washers, and offset washers
(1) (Figure 4-3) securing each top rear adjustable wear
pad and remove the wear pads, keeper plates and
capscrews from the top of the inner mid. Note location of
wear pads and shims for installation.
3. On the top front of the base section, remove the two
capscrews securing each kicker plate and remove the
plates.
4. Remove the capscrews securing the outer mid retract
cable anchor plates to the lower front of the base
section. Remove the cable locknuts and the anchor
plates from the cables.
5. Remove the capscrews and washers securing each top
(1) and bottom (2) side wear pads at the front of the base
section (Figure 4-4). Remove wear pads, shims, and
mounting angle (top left side only).
6. Lift up on the front of the assembly and remove the wear
pads from the pockets in the bottom of the base section.
7. Continue to pull the assembly from the base section.
Disconnect Inner Mid Section
1. At the rear of the inner mid, remove the capscrew and
cable retainer bushing (1) from the rear of each retract
cable sheave assembly (2)(Figure 4-5).
Item Description
1 Telescope Cylinder - Rod End
2 Base Section
3 Telescope Cylinder - Inner Rod
4 Inner Mid Section
5 Telescope Cylinder Barrel
6 Outer Mid Section
7 Extension Cables
8 Inner Mid Section
9 Sheave Assembly
10 Telescope Cylinder
11 Fly Section Base End
12 Synchronizing Cables
13 Base Section - Rear
14 Retraction Cables
15 Sheave
16 Retraction Cable to Fly Section
17 Fly Section
18
Retraction Cables to Outside Front of Base
Section
19 Sheave
20 Retract Cables to Outer Mid Section
21 Base Section Top and Bottom Wear Pads
1
FIGURE 4-3
1
FIGURE 4-4
6960-5
1
2
FIGURE 4-5
6960-12
1
2
Reference Only
