Manitowoc Grove RT530E-2 - Page 250

UNDERCARRIAGE RT530E-2 SERVICE MANUAL
8-6 Published 4-22-15, Control # 556-00

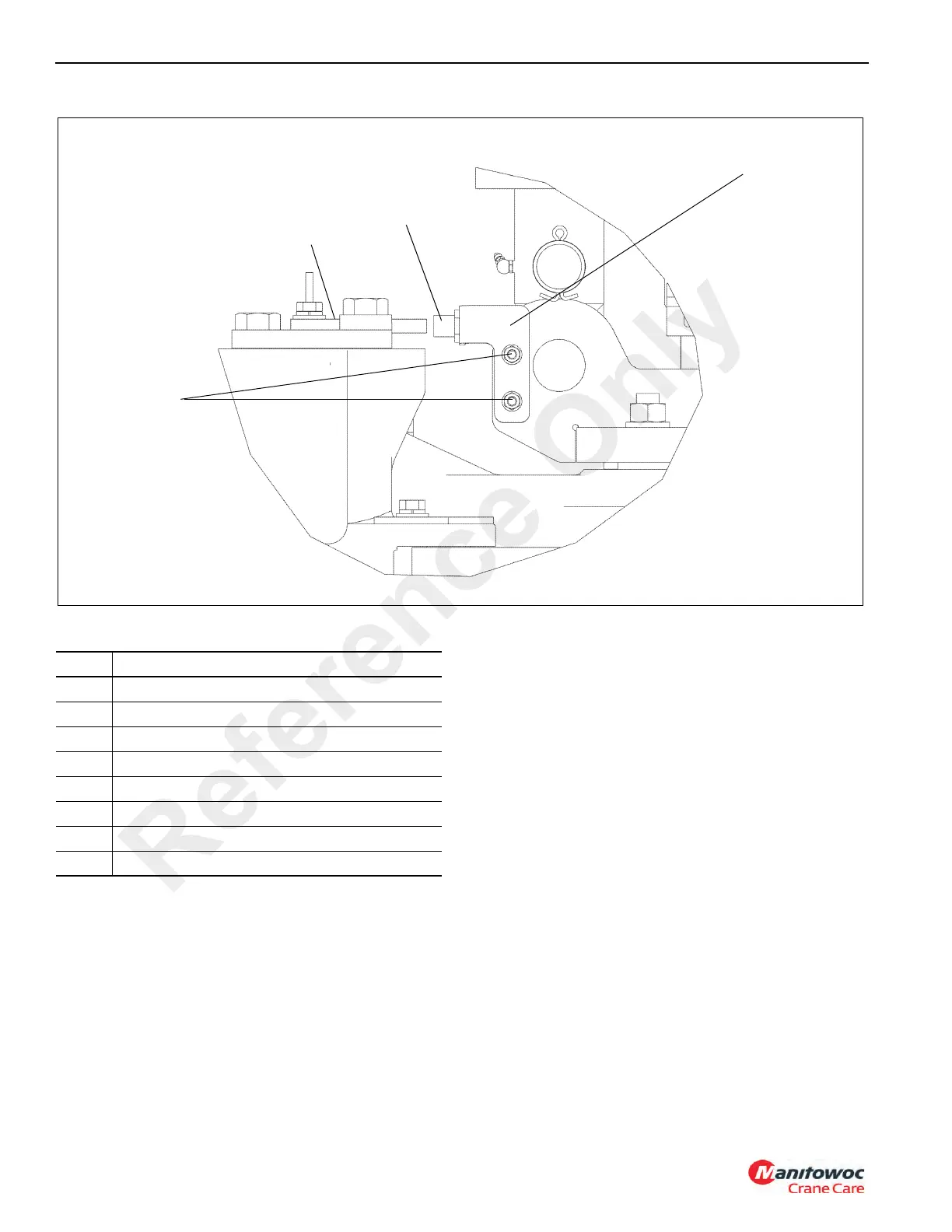

FIGURE 8-3
6758-1
3, 4
2
1
5, 6, 7, 8
Item Description
1 Sensor Plate
2 Proxy Switch
3 Bracket
4 Rear Steer Bracket Shim
5 Capscrew
6Hex Nut
7 Flat Washer
8 Lock Washer
Reference Only
