Manitowoc Grove RT770E Service Maintenance Manual

ELECTRICAL SYSTEM RT770E SERVICE MANUAL
3-4
Published 11/26/2014, Control # 447-05

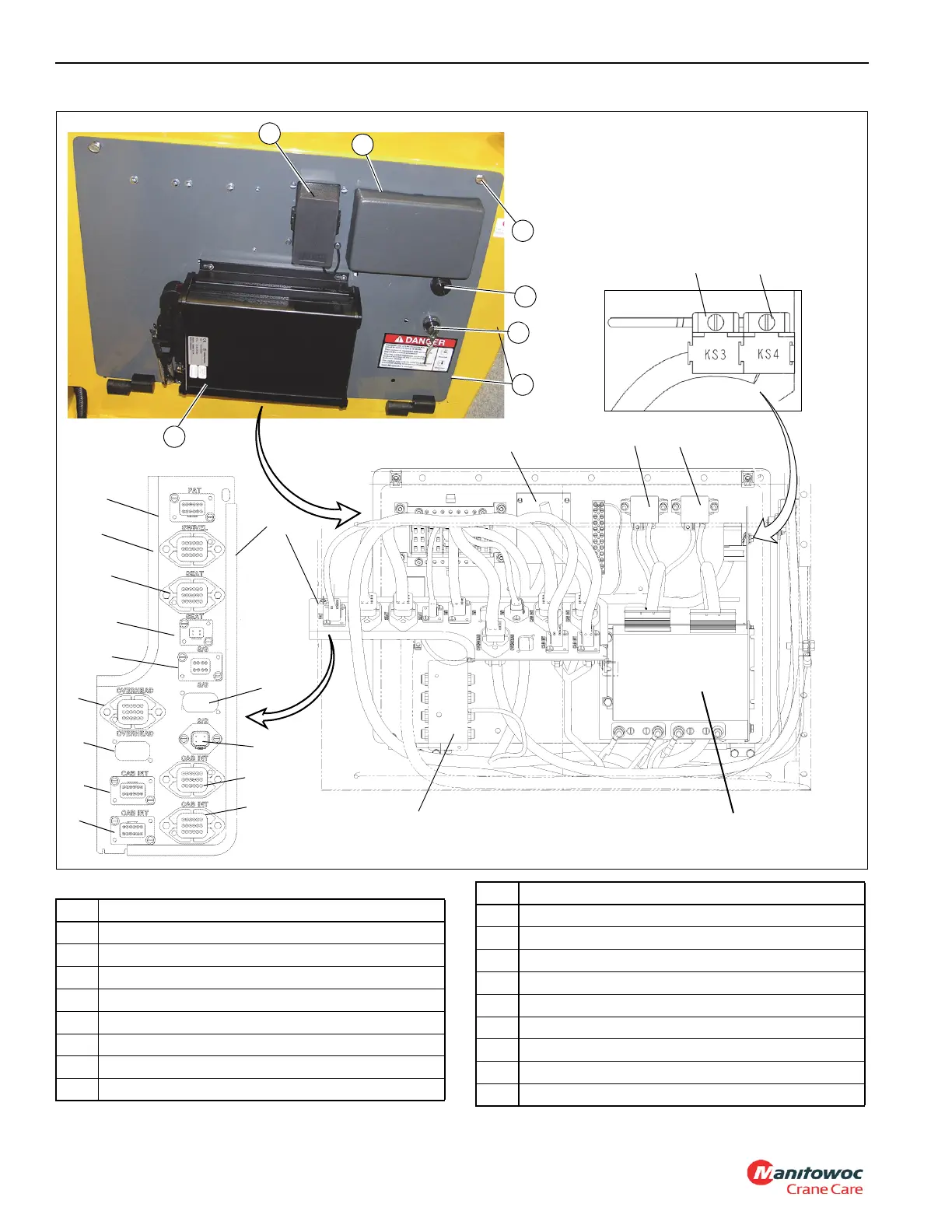

Figure 3-4 Item Numbers
FIGURE 3-4
2
7888-3
9
10
15
8
7888
1
3
4
5
6
7
12
13
14
18
17
16
20
19
26
25
7888-2
22
21
23
24
11
2
27
Item Component
1 Diode Box
2 Fuse Box
3 Panel Screw
4 Fast Pulse Buzzer Alarm
5 RCL Override Switch
6 Electrical Panel
7 RCL Controller
8 CAN Junction Box
9 ACC Relay, CAB and T/T Modules Power(KS1)
10 ACC Relay, Jib Stow, RCL Override, Jib Option
11 Relay, Windshield Wiper Low Speed
12 Relay, Windshield Wiper High Speed
13 CAB Module
14 Connector Bulkhead
15 Cab Interior Harness
16 Swivel Harness
17 Seat Harness
Item Component
