14. Install the lever (12) and spacer that locks/unlocks the
steering column tilt/telescope function.
15. Pull the rubber boot (11) up and over the bottom of the
left and right side covers (8, 9).
16. Turn the battery disconnect switch to the ON position.
Check
1. Operate the turn signal lever or transmission shift lever
per the Operator’s Manual. Verify each of its functions
work.
2. As needed, troubleshoot further any system or circuit
malfunction not corrected by repair or replacement of
the switch or associated wiring.
Windshield Wiper Assembly Replacement
Removal
1. Ensure that the key switch has been in the OFF position
for 2 minutes.
2. Turn the battery disconnect switch to the OFF position.
3. Tag and disconnect the electrical leads from the motor.
4. Disconnect the washer hose on the wiper arm (also
called the pantograph arm assembly) from the washer
nozzle fitting assembly.
5. Remove the cap nut and washer securing the wiper arm
to the pantograph adapter kit. (The nut and washer are
part of the pantograph adapter kit.) Remove the cap nut,

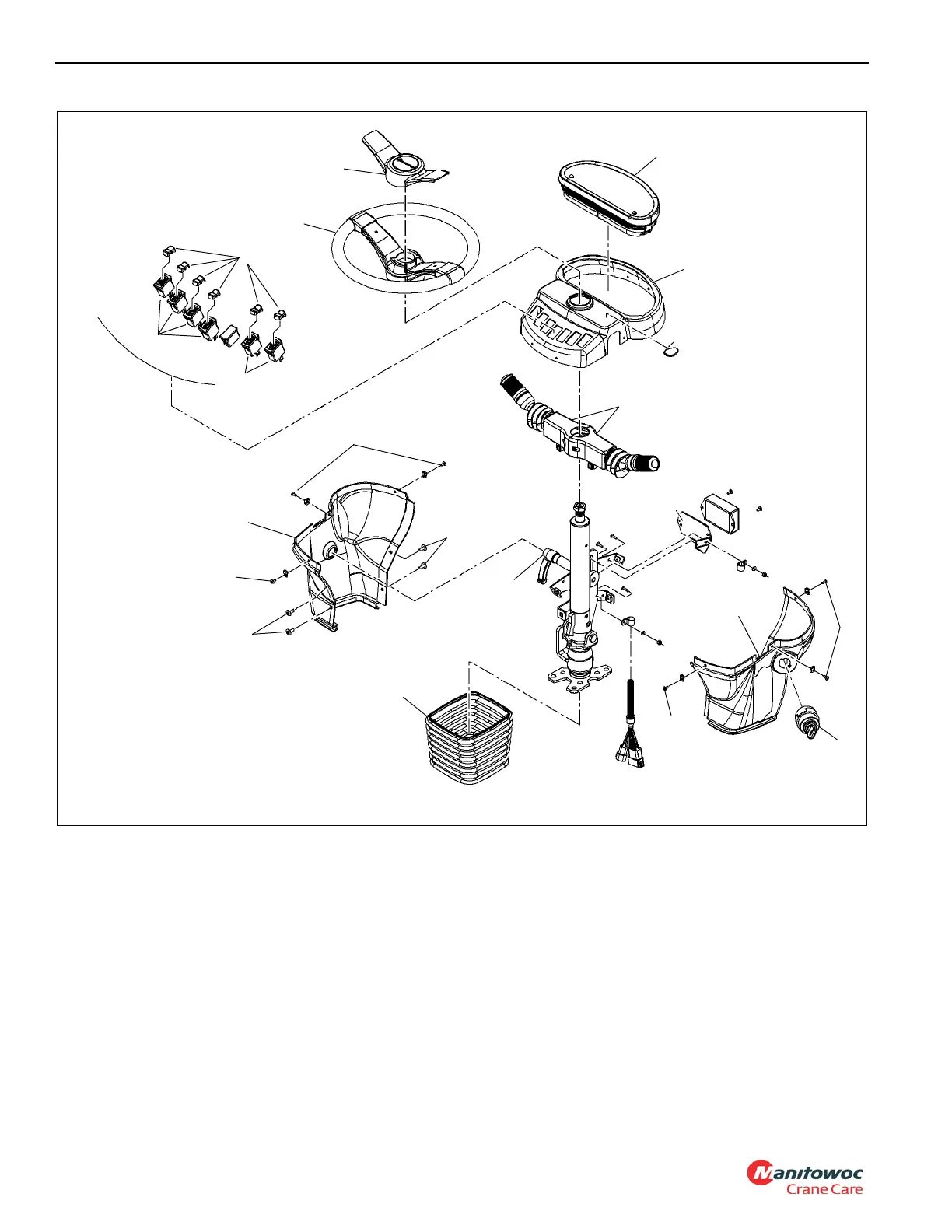

FIGURE 3-9
7794-1
9
10
13
14
11
12
1
2
3
4
5
6
7
8
13
14
14
14
4
