4-3
Published 11/26/2014, Control # 447-05
RT770E SERVICE MANUAL BOOM
4
GROVE

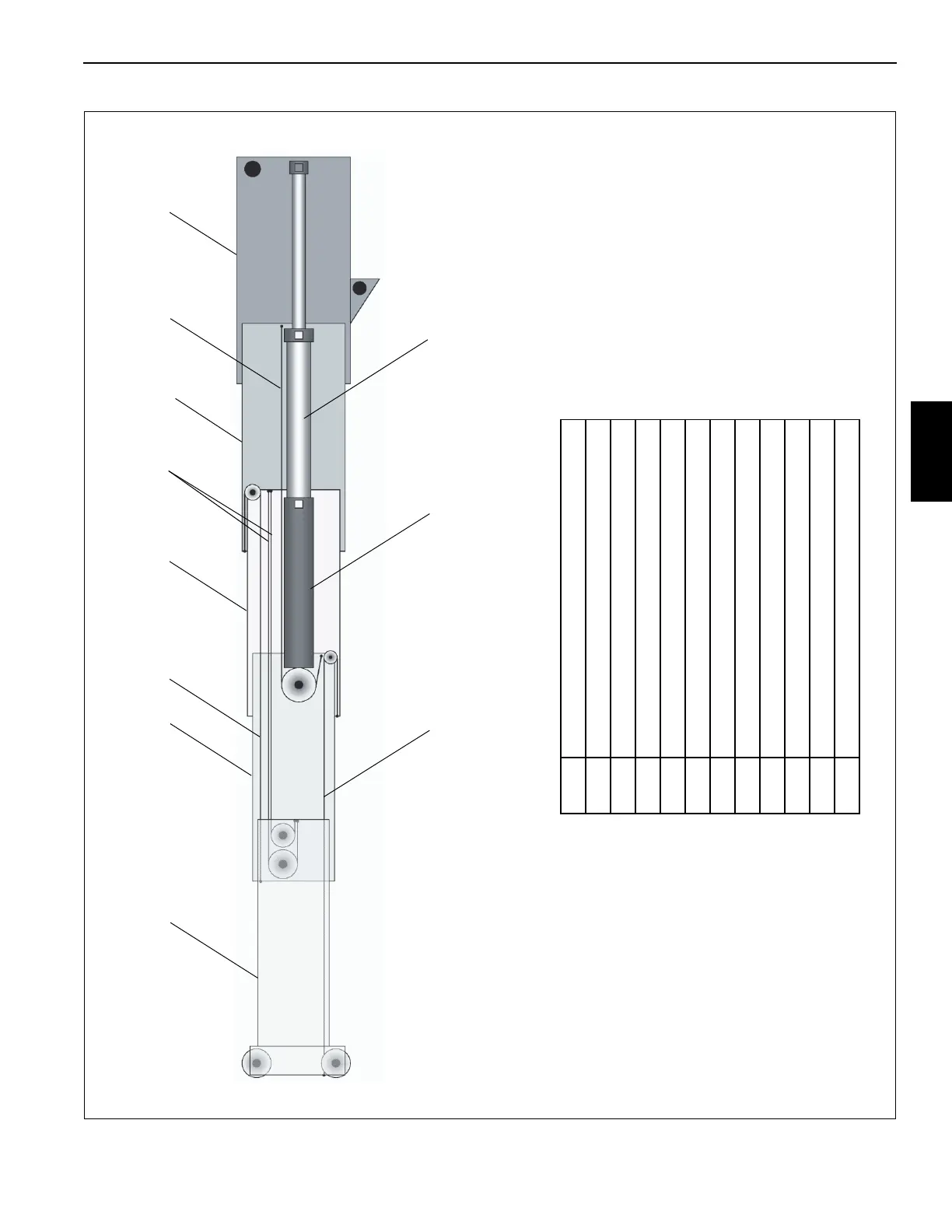

FIGURE 4-1
7985
12345
67
8910
11
Item Description
1 Base Section
2 Section 1
3 Section 2
4 Section 3
5 Section 4
6 Telescope Cylinder - 1st Stage
7 Telescope Cylinder - 2nd Stage
8 Section 3 Extend Cables
9 Section 4 Extend Cables
10 Section 3 Retract Cables
11 Section 4 Retract Cables
