POWER TRAIN RT770E
7-16
Published 11/26/2014, Control # 447-05

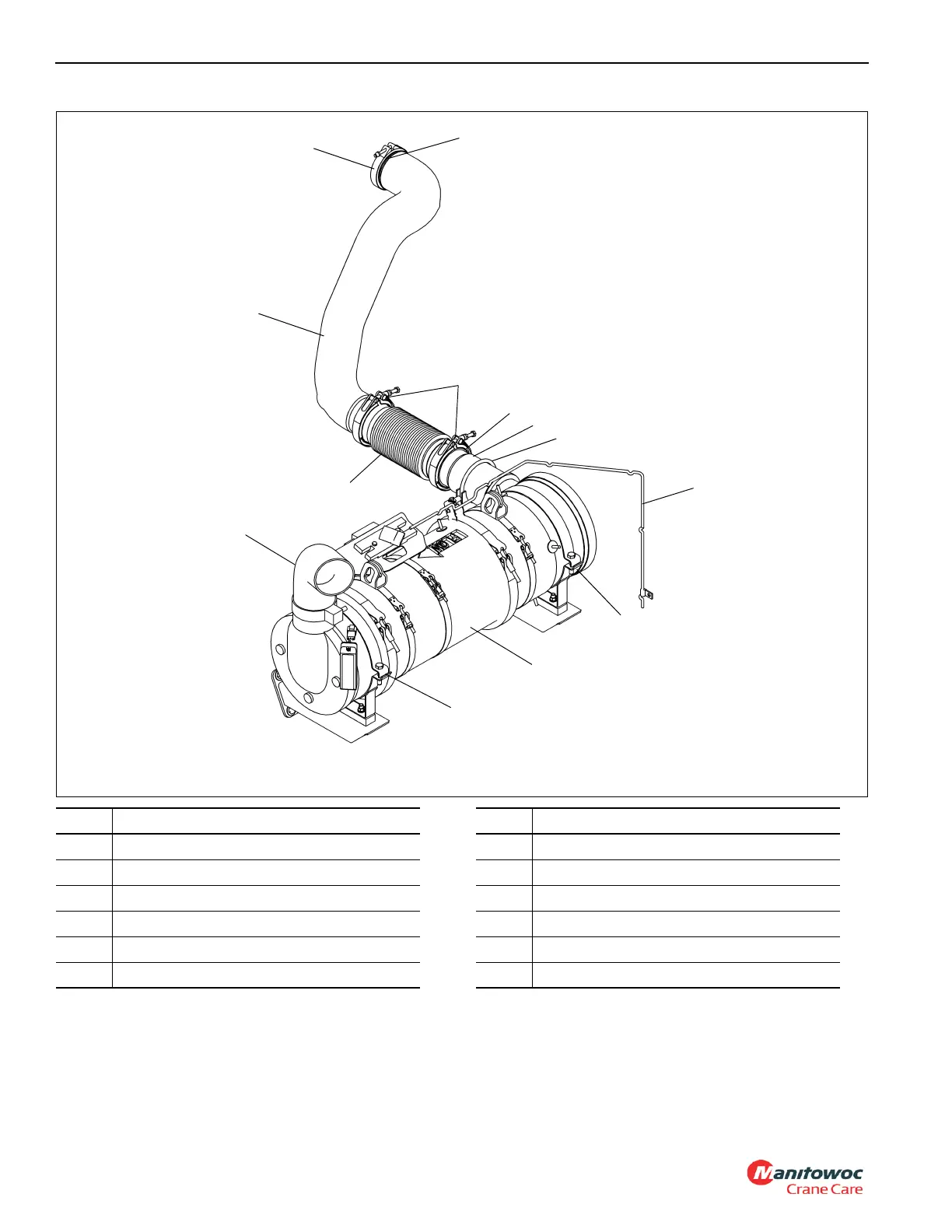

Tier 4 Diesel Particulate Filter/Muffler
FIGURE 7-9
6
10
7
11
8
9
1
5
2
3
4
12
3
7843
Item Description
1 Elbow
2 Wire Tie Bar
3 Mounting Band Clamp
4 Diesel Particulate Filter
5 Muffler Clamp
6 Exhaust Tube
Item Description
7 Gasket
8 V-Band Clamp
9 Bellows
10 Exhaust Tube
11 Gasket
12 V-Band Clamp
