RT770E LUBRICATION
9
Published 11/26/2014, Control # 447-05
GROVE
• Frame application areas are; hose ends and fittings, all
unpainted fasteners and hardware, all bare metal
surfaces, outrigger pads, and back up alarm hardware.
• Superstructure applications are; hose end and fittings,
wire rope on hoist roller tensioning springs on hoists, all
unpainted fasteners and hardware, valves, slew ring
fasteners and all bare metal surfaces.
• Boom applications areas are; pivot pins, hose end and
fittings, jib pins and shafts, all bare metal surfaces,
headache ball pins/ hook block pins and fasteners.
• All hardware, clips, pins, hose connections not painted
will have treatment applied.

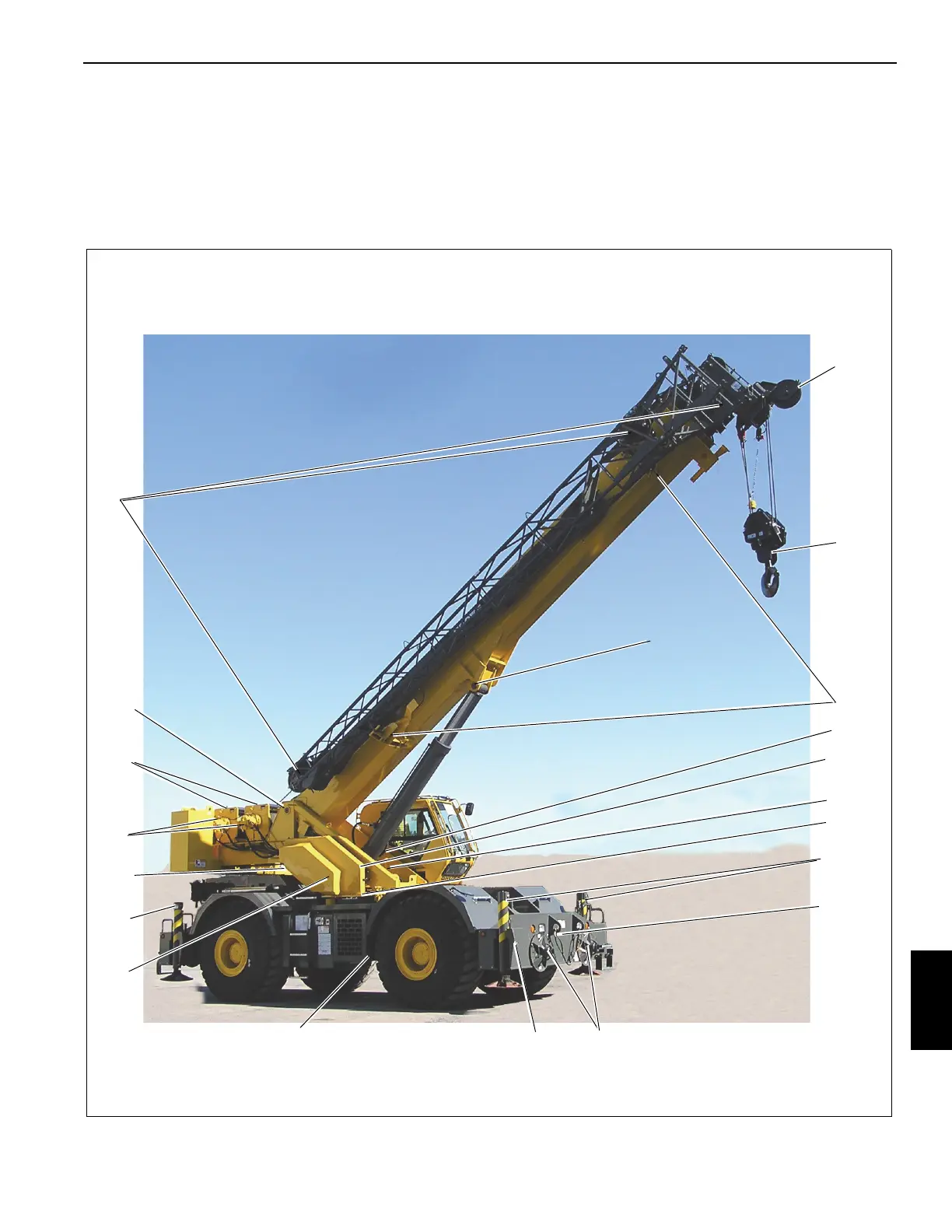

7650-75
Figure 9-15
2
3
5
6
7
8
9
1
9
13
11
10
15
14
17
1
12
1
4
16
