Manitowoc Grove RT770E Service Maintenance Manual

2-31
GROVE
RT770E HYDRAULIC SYSTEM
2
Published 11/26/2014, Control # 447-05
FIGURE 2-16
1
2
3
4
6
8

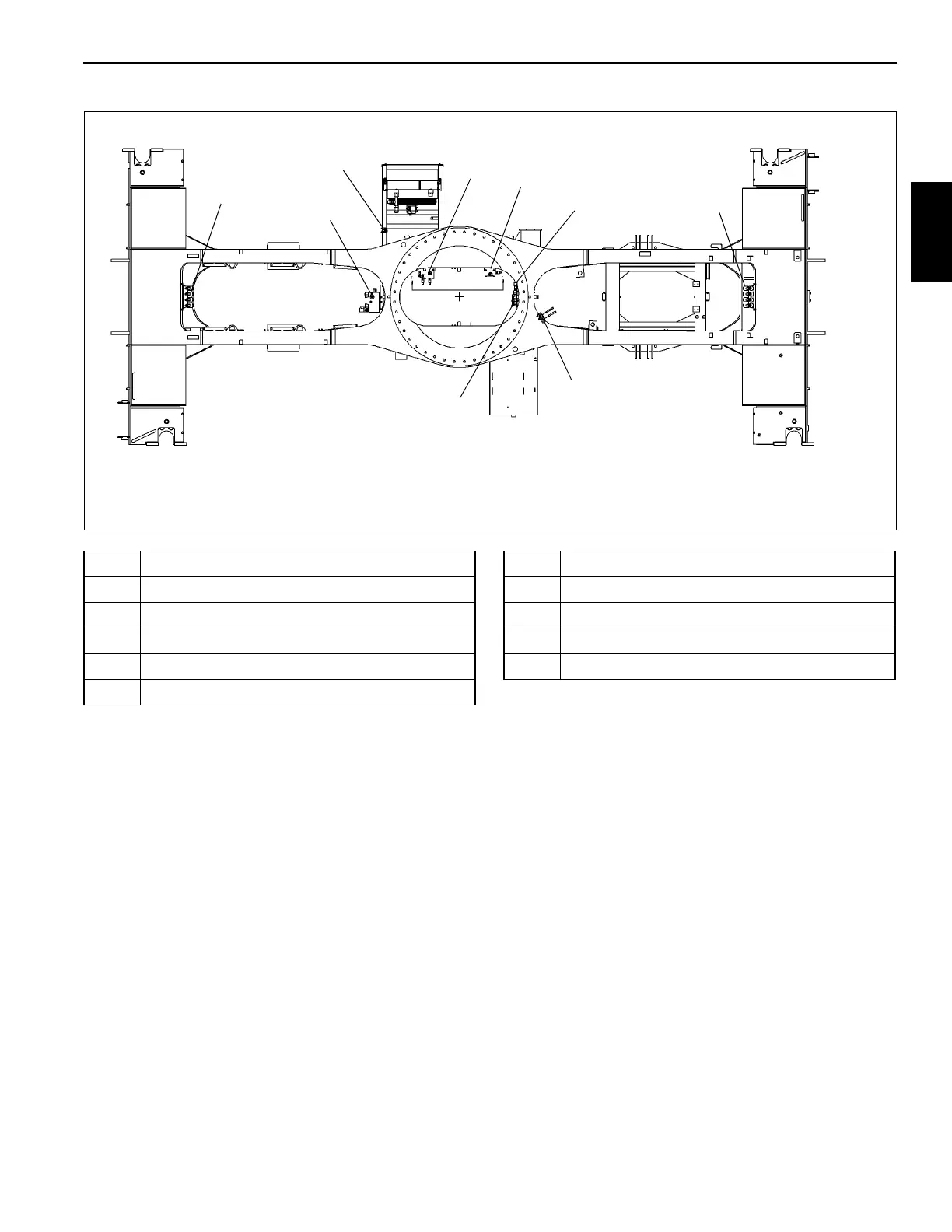

Valve Installation - Carrier
5
7
Rear
9
Item Description
1 Front Outrigger Control Valve
2 Integrated Outrigger/Rear Steer Valve
3 Fan Bypass Valve
4 Priority Flow Divider Valve
5 Adjustable Flow Valve
Item Description
6 Park Brake Range Shift Valve
7 Differential Lock Valve (Optional)
8 Axle Lockout Valve
9 Rear Outrigger Control Valve
