Manitowoc Grove RT770E Service Maintenance Manual

2-37
GROVE
RT770E HYDRAULIC SYSTEM
2
Published 11/26/2014, Control # 447-05
7
9
1
8
5
6
4
2
3
9
8
3
6
5
1
2
7532-3
FIGURE 2-20
7
4
7532-2
7532-1
6
5
7
8
1
9
4

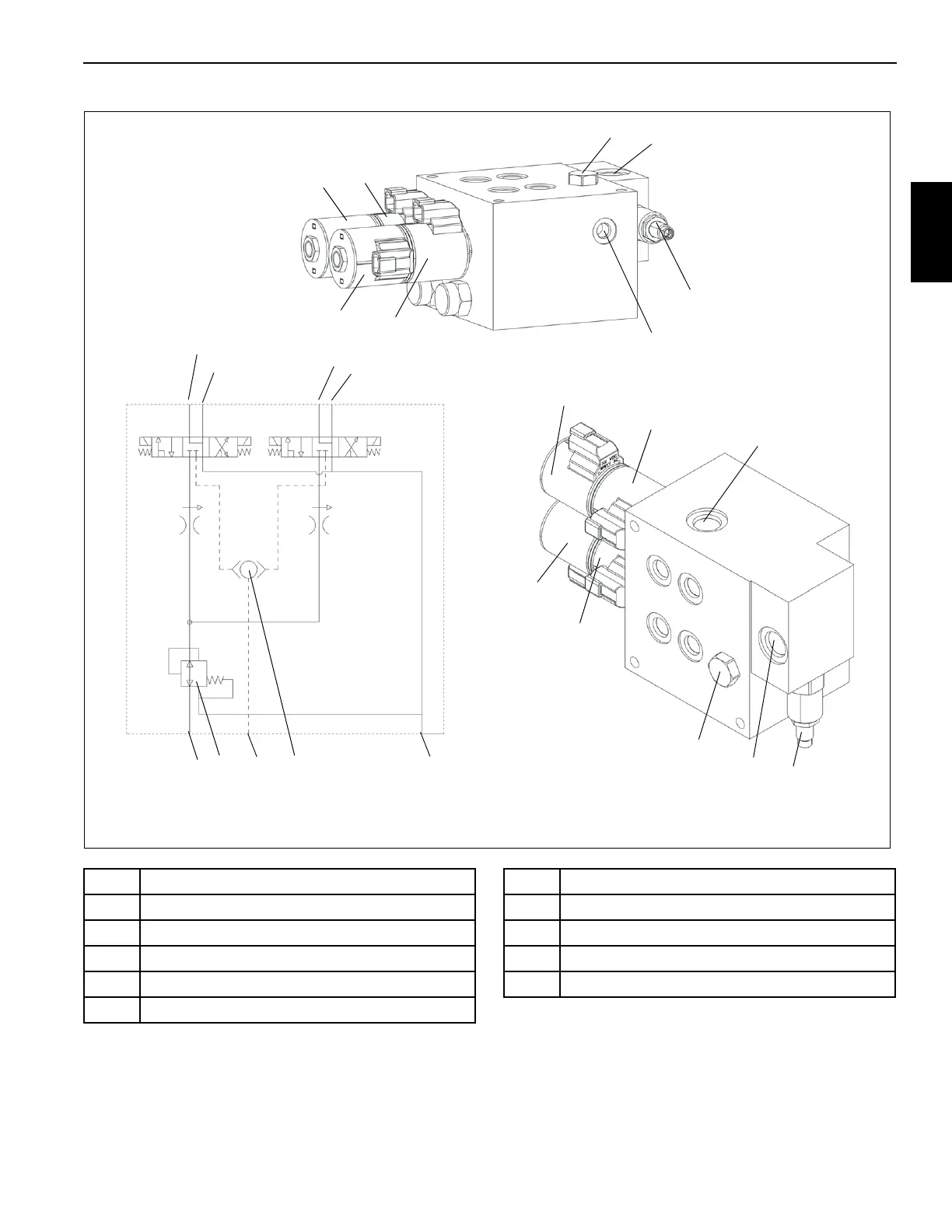

Counterweight Removal Manifold
Item Description
1 Port P - Pressure to Directional Valve
2 Port LS - Load Sense
3 Port T - Tank to Swivel Port #4
4 Pressure Compensated Regulator
5 Port 1A - Solenoid Valve SV2
Item Description
6 Port 1B - Solenoid Valve SV1
7 Port 2B - Solenoid Valve SV3
8 Port 2A - Solenoid Valve SV4
9 Load Shuttle
