RT770E HYDRAULIC SYSTEM
2
Published 11/26/2014, Control # 447-05

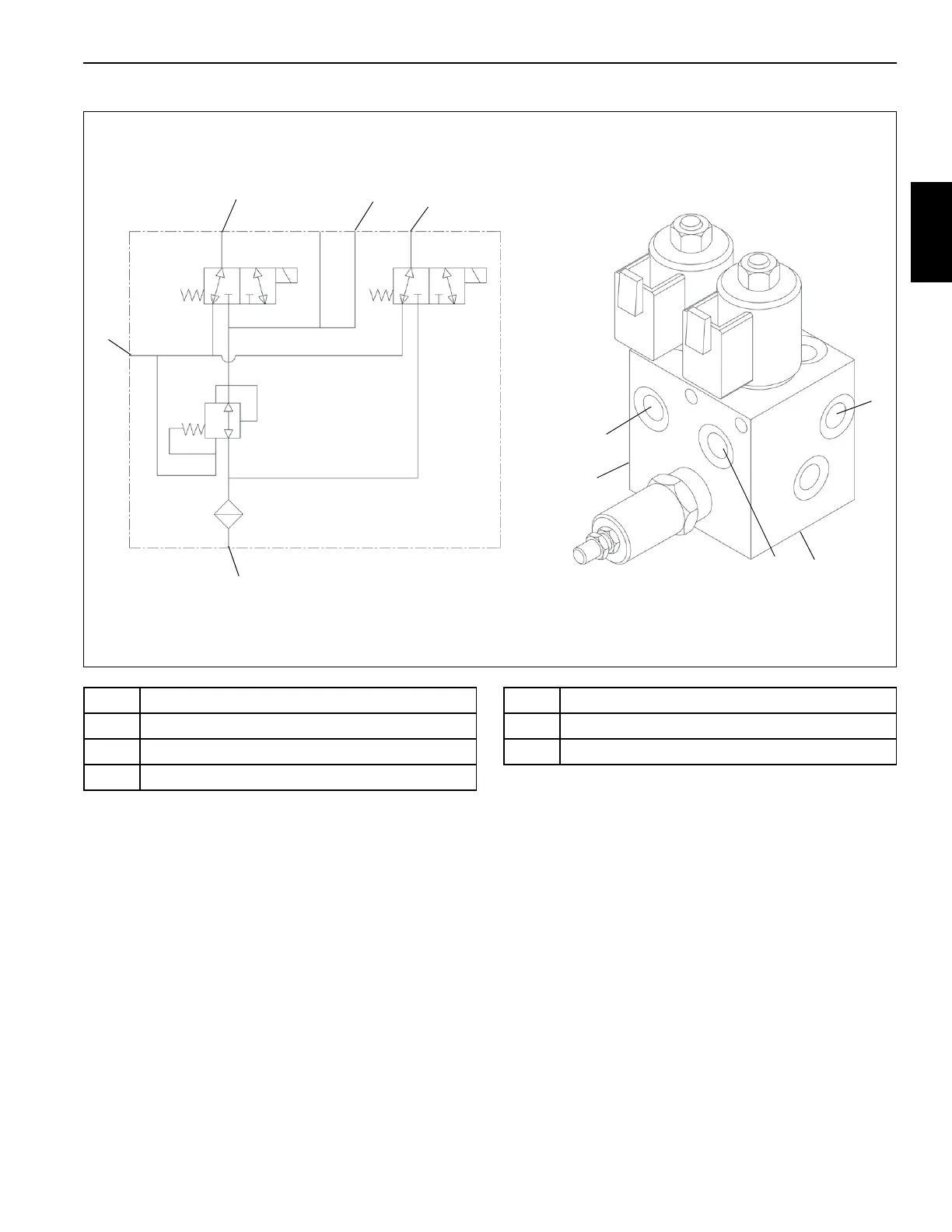

FIGURE 2-25
1
2
3
4
5
3
2
1
4
5
7540-2
7540-1
Item Description
1 Port P - Inlet Port
2 Port G - Gauge Port
3 Port REG 1 - Swing Brake Release
Item Description
4 Port REG 2 - Controller Armrest Lockout Valve
5Drain
