Maple Armor FW106 - XNU; Battery

InstallationandOperationManual 
15

XNU
 TheFW106/FW106Ccontrolpanelcommunicatestopanels/annunciators,upto110nodesonanetwork.
 Circuittopologysupport:ClassB.
 XNU address is set by configuration from the panel or configurator. The valid address range of the
FW106/FW106Coracompatibleannunciatoris1to110.


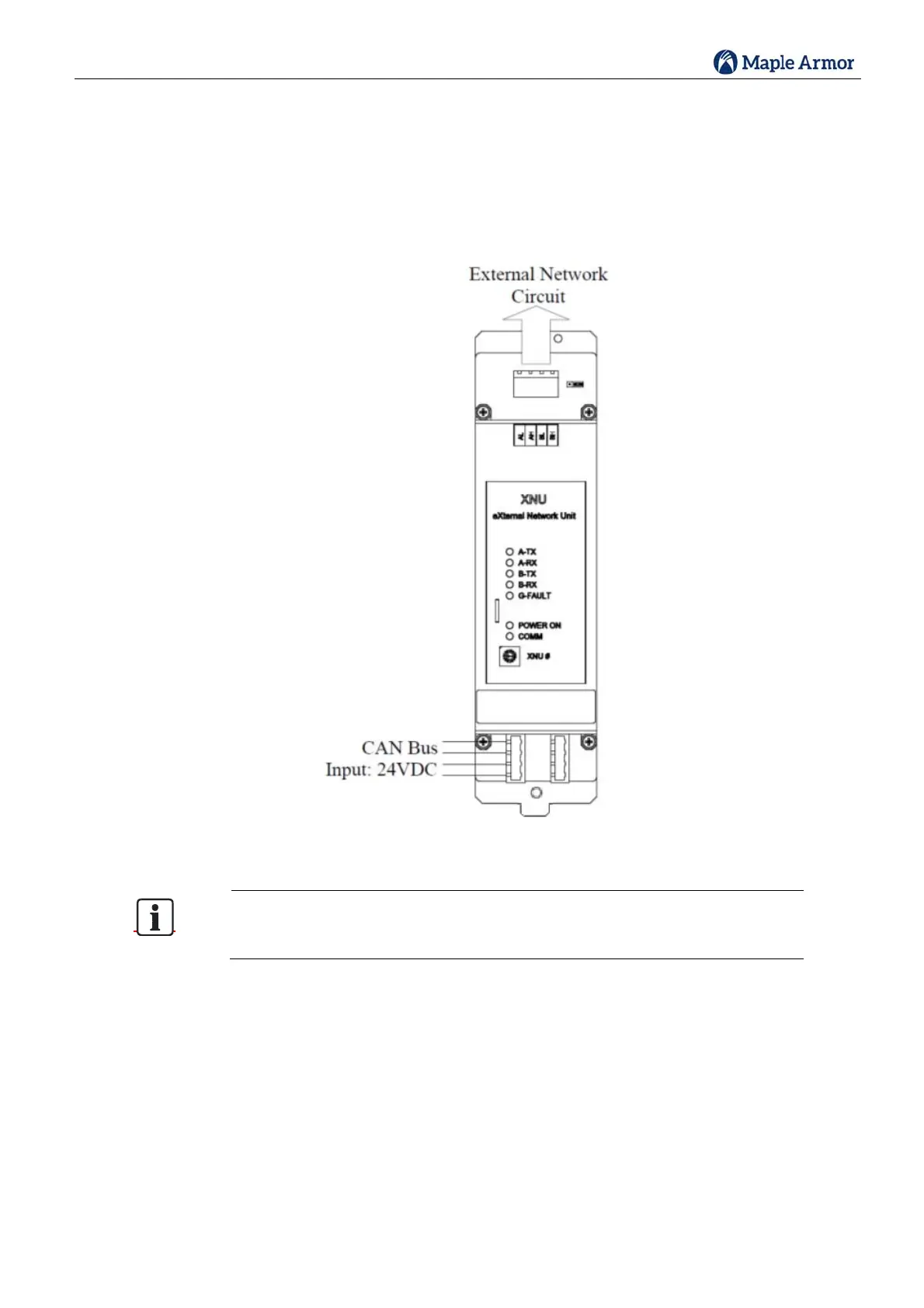

Figure11
XNU

TheXNUmustbesettoacorrectaddressbeforeuse.PleaserefertoUnitAddress
Settingsectionfordetail.
Battery
FW106/FW106Ccansupport40AHsealedlead‐acidbatterieswithincoderequirementsforupto24hou rs 
normalstandbyplus30minutesalarm.
Batteriesmustbereplacedwhentheyfailtoprovidethecontrolpanelwiththerequiredstandbyandalarm
powerorafter4years,whicheverhappensfirst.
Pleaserefer
toBatteryCalculationstoselectanappropriateBatteryCapacity.
