Maple Armor FW106 - Addressable Loop Circuit Wiring; Addressable Loop Circuit Wiring - Class A

InstallationandOperationManual 
28

AddressableLoopCirc uit Wiring
OneALUcardsupportsoneaddressableloopcircuit.
AddressableLoopCircuitsupportsClassAandClassBstyle.Amaximumof252devicescanbeconnectedtothe
circuit.
Allthecompatibledetectorsandmanualstationsarepolarityinsensitive,whilethecompatiblemodulesare
polaritysensitive.
Refertotheinstructionsheets
packedwitheachdevice.
ThedetectorsandmodulesmaybewiredtogetheraccordingtoseveralNFPAdefinedwiringstyles.Thewiring
stylethatisappropriateforyourinstallationshouldbedeterminedfromtherelevantbuildingcodesandthe
localAuthorityHavingJurisdiction.
 AddressableLoopCircuitWiring–ClassA
ClassAprovidesredundantcommunicationpaths.


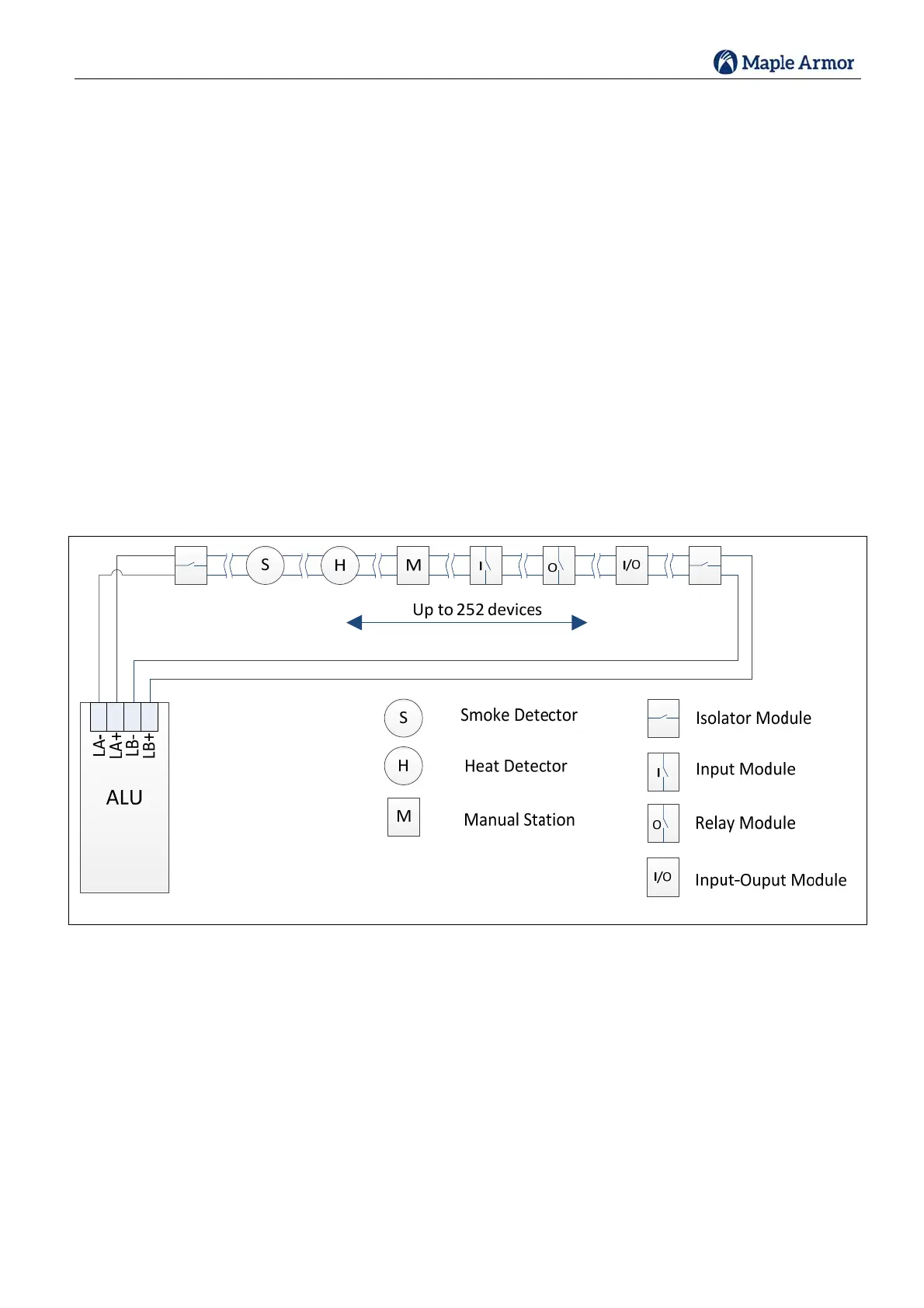

Figure22AddressableLoopCircuitWiring–ClassA
 
