Maple Armor FW106 - Two-Stage; By-pass; Auto addressing

InstallationandOperationManual 
45

Two‐Stage
Whenanalarmcausingdeviceassociatedwithazonewithtwo‐stagefeatureisinitiated,itwillenterfirststage
alarmandthealertconditionisreportedonthepanel.Acountdowntimerwillstartatthemomentandbuzzer
willsoundinalerttone.Notificationappliancewillsoundinalert
tone.
Ifthetimercountsdownto0orpressing“ToSecondStage”button,systemwillentersecondstagealarmstatus.
Alarm event will display on LCD, along with buzzer with alarm tone and notification appliance in alarm tone
(Temporal3).
If“AutoAlarmSignalCancel” buttonor“SignalSilence”
buttonispressedduringfirststagealarm,thesystemwill
enter the automatic alarm signal cancel status. Automatic alarm signal cancel event will display on LCD. The
countdowntimeriscancelled,buzzerkeepinginalerttone,andnotificationappliancesoundinginalerttone(if
it’snotsilenced).



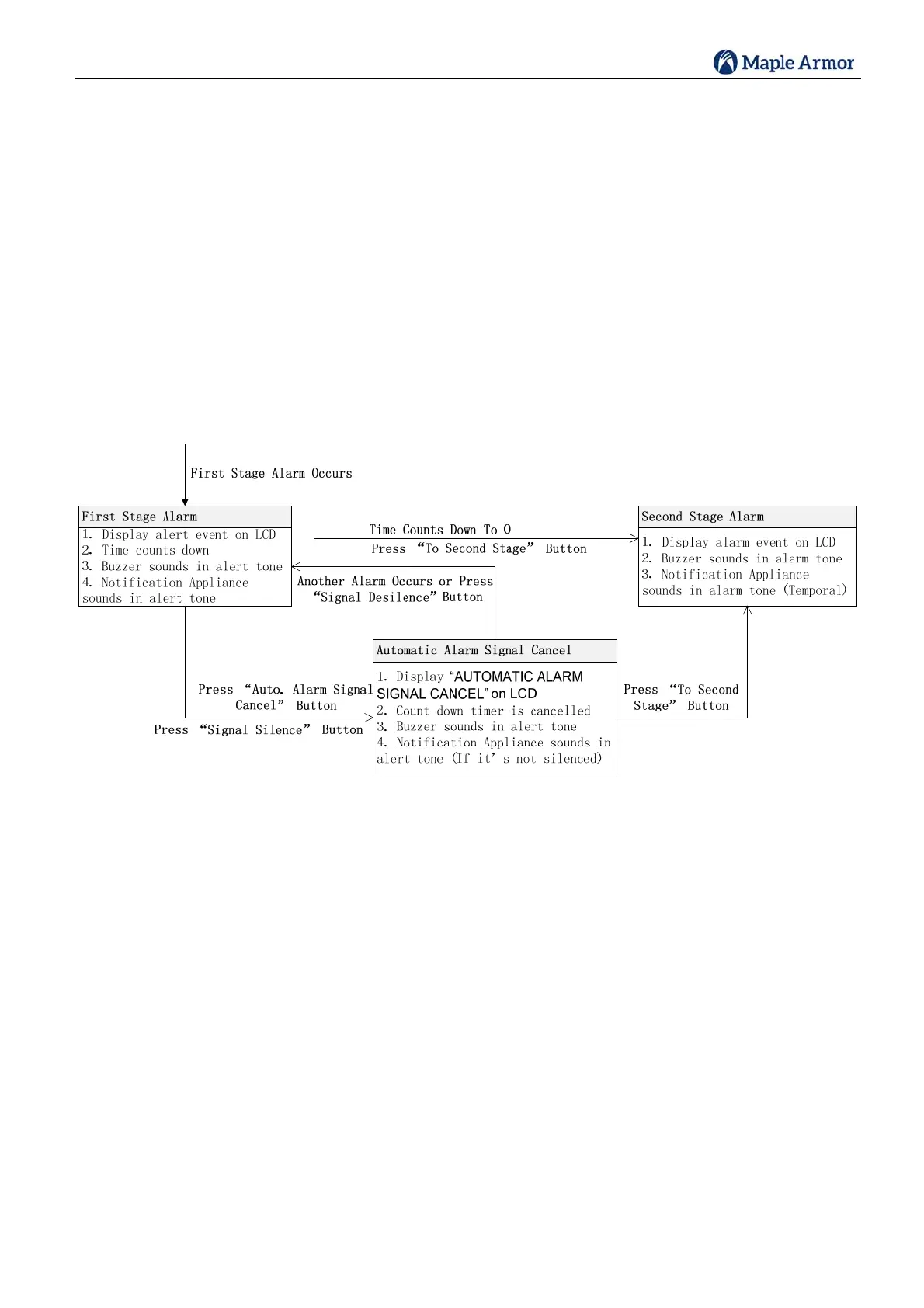

Figure34Two‐StageAlarm
By‐pass
Theby‐passfunctionisprovidedforuseriftheydon’twanttoreceivemessagefromspecifieddevices.

Autoaddressing
Autoaddressingmodewhichisappliedtoassignaddressesforfielddevicesbypanel.Whenpanelgoes
intoAuto Addressing mode,devicesinstalled on this  loop willbe automatica lly  assigned addressesin
sequence which is convenient for filed commissioning. Please refer to the programming manual for
details.

