Marantz 4300 - Connecting the 4300; Speaker Connections

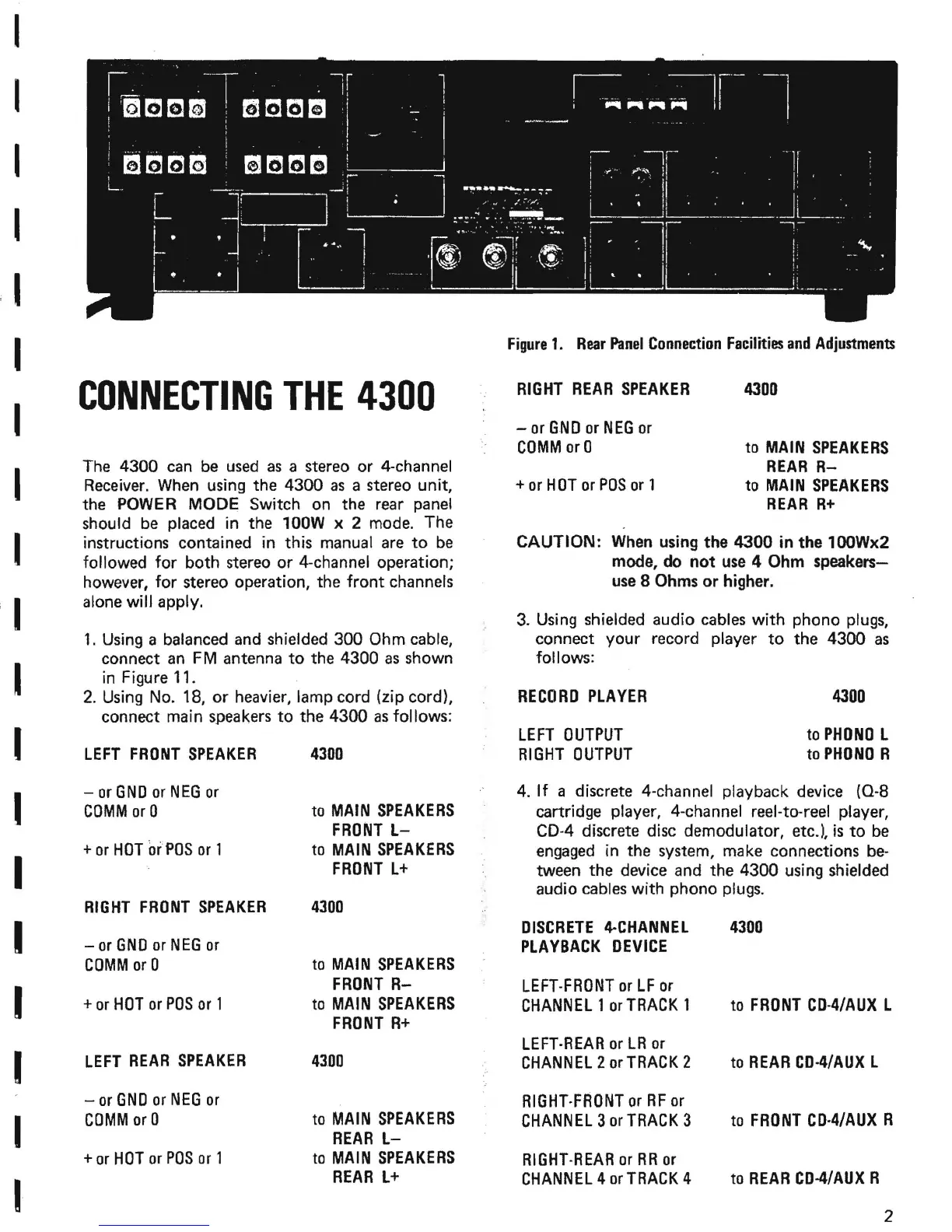

Figure 1. Rear Panel Connection Facilities and Adjustments
3. Using shielded audio cables with phono plugs,
connect your record player
to the 4300 as
follows:
CAUTION: When using the 4300 in the 100Wx2
mode,
do not use 4 Ohm speakers-
use 8 Ohms or higher.
to PHONO L
to PHONO R
4300
to MAIN SPEAKERS
REAR R-
to MAIN SPEAKERS
REAR R+
4300
to FRONT CD·4/AUX R
to REAR CD-4/AUX R
to REAR CD·4/AUX l
2
to FRONT CD-4/AUX L
4300
RIGHT-REAR or RR or
CHANNEL 4 orTRACK 4
lEFT·REAR
or lR or
CHANNEL 2 orTRACK 2
RIGHT·FRONT or RF or
CHANNEL 3 or TRACK 3
lEFT-FRONT or LF or
CHANNEL 1orTRACK 1
DISCRETE 4-CHANNEl
PLAYBACK DEVICE
lEFT OUTPUT
RIGHT OUTPUT
RECORD PLAYER
4. If a discrete 4-channel playback device {Q-8
cartridge player, 4-channel reel-to-reel player,
CD-4 discrete disc demodulator, etc.l,
is to be
engaged in the system, make connections be-
tween the device and the 4300 using shielded
audio cables with phono plugs.
RIGHT REAR SPEAKER
- or GND or NEG or
COMM orO
+ or HOT or POS or 1
lEFT FRONT SPEAKER 4300
- or GND or NEG or
COMM or 0
to MAIN SPEAKERS
FRONT l-
+ or HOT or pas or 1
to MAIN SPEAKERS
FRONT l+
RIGHT FRONT SPEAKER
4300
- or GND or NEG or
COMM or 0
to MAIN SPEAKERS
FRONT R-
+ or HOT or pas or 1 to MAIN SPEAKERS
FRONT R+
lEFT REAR SPEAKER
4300
- or GND or NEG or
COMM or 0
to MAIN SPEAKERS
REAR L-
+ or HOT or pas or 1 to MAIN SPEAKERS
REAR L+
1. Using a balanced and shielded 300 Ohm cable,
connect
an FM antenna to the 4300 as shown
in Figure 11.
2. Using No. 18, or heavier, lamp cord (zip cord),
connect main
speakers to the 4300 as follows:
The 4300
can be used as a stereo or 4-channel
Receiver. When using the 4300 as a stereo unit,
the
POWER MODE Switch on the rear panel
should be placed in the 100W x 2 mode. The
instructions contained in this manual
are to be
followed for both stereo or 4-channel operation;
however,
for stereo operation, the front channels
alone will apply.
CONNECTING THE 4300
