Marantz 4300 - Loudspeaker System Connections

MAil SI(AI(8l SYSTEM
Ilff'£AT WIIHG
AS FOR FfOIIY ~ SYSTtM

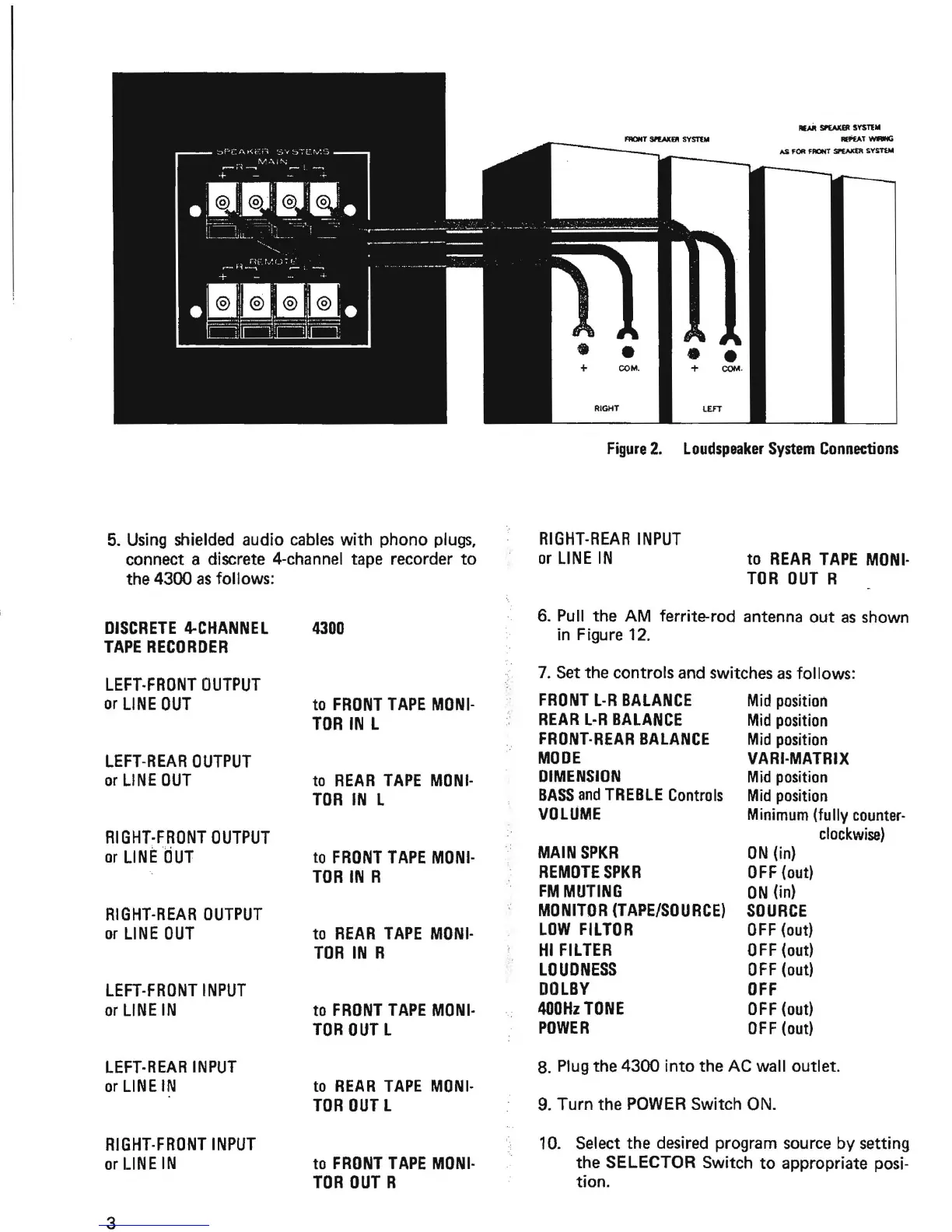

Figure 2. Loudspeaker System Connections
5. Using shielded audio cables with phono plugs,
connect
a discrete 4-channel tape recorder to
the 4300 as follows:
RIGHT-REAR INPUT
or LINE IN
to REAR TAPE MONI·
TOR OUT R
DISCRETE 4-CHANNEL
TAPE RECORDER
4300
6. Pull the AM ferrite-rod antenna out as shown
in Figure 12.
7. Set the controls and switches as f.ollows:
FRONT L·R BALANCE Mid position
REAR L-R BALANCE Mid position
FRONT·REAR BALANCE Mid position
MODE VARI·MATRIX
DIMENSION Mid position
BASS and TREBLE Controls Mid position
VOLUME Minimum (fully counter·
clockwise)
LEFT·FRONT OUTPUT
or LINE OUT
lEFT-REAR OUTPUT
or LINE OUT
RIGHT-FRONT OUTPUT
or LINE OUT
RIGHT-REAR OUTPUT
or LINE OUT
lEFT·FRONT INPUT
or LINE IN
to FRONT TAPE MONI-
TOR IN L
to REAR TAPE MONI·
TOR IN L
to FRONT TAPE MONI·
TOR IN R
to REAR TAPE MONI-
TOR IN R
to FRONT TAPE MONI·
TOR OUT L
MAIN SPKR
REMOTE SPKR
FM MUTING
MONITOR (TAPE/SOURCE)
LOW FILTOR
HI FILTER
LOUDNESS
DOLBY
400Hz TONE
POWER
ON (in)
OFF (out)
ON (in)
SOURCE
OFF (out)
OFF (out)
OFF (out)
OFF
OFF (out)
OFF (out)
LEFT·REAR INPUT
or LINE IN
RIGHT·FRONT INPUT
or LINE IN
3
to REAR TAPE MONI·
TOR OUT L
to FRONT TAPE MONI·
TOR OUT R
8. Plug the 4300 into the AC wall outlet.
9. Turn the POWER Switch ON.
10. Select the desired program source
by setting
the SELECTOR Switch
to appropriate posi-
tion.
