Marantz PM-10 Service Manual

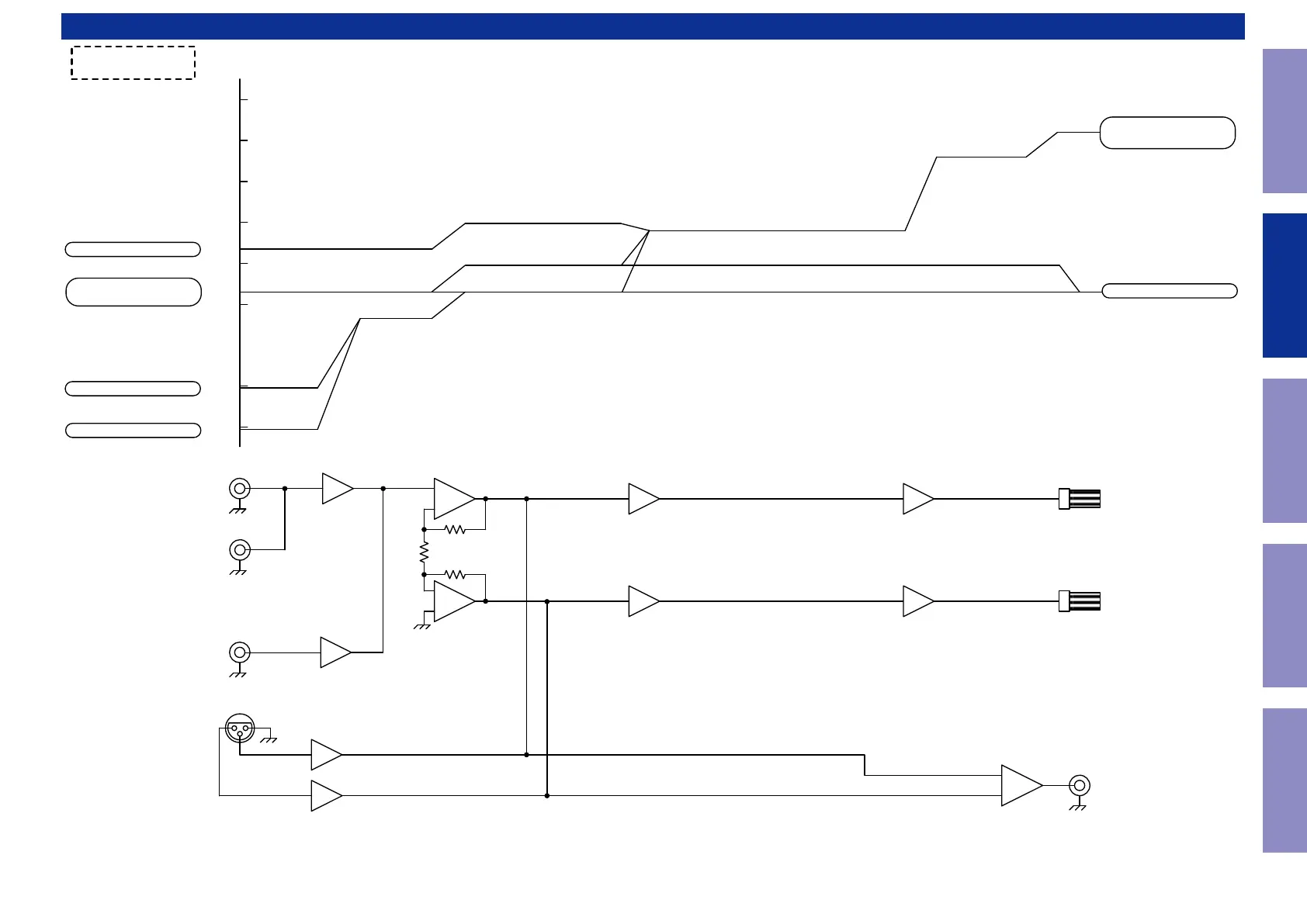

LEVEL DIAGRAM
REC OUT 440mV
Volume Setting
0dB (MAX)
CD, LINE, REC
0dB
Input Buffer
POWER AMP IN
+
-
+
-
Unbal-Bal amp
+6dB
PHONO
PHONO AMP
BALANCED Input Buffer
0dB
Volume amp
CD,LINE,REC : +9.5dB
BALANCED,PHONO:+15.5dB
POWER AMP IN : -1.5dB
REC OUT
Rec Out Buffer
+
-
Class D
Power Buffer
+18.4dB
SPK OUT
(BTL)
CD,LINE,PHONO : -6.0dB
BALANCED: 0dB
+40dB
+30dB
+20dB
+10dB
0dB
-10dB
-50dB
-70dB
PHONO MC 0.28mV
PHONO MM 2.6mV
P.DIRECT IN 1.5V
+38.6dB (MM)
+58.0dB ( MC)
+6.0dB(CD, LINE , REC)
+6.0dB
CD, LINE, REC 440mV
BALANCE 880mV
-1.5dB P.AMP IN
+18.4dB
+6.0dB
SPK OUT 40V
(8ohms, 200W)
+6.0dB
CD,LINE,REC : +9.5dB
BALANCED,PHONO:+15.5dB
+38.6dB (MM)
+58.0dB (MC)
+6.0dB(PHONO)
PM-10S1 LEVEL DIAGRAM
CD,LINE,PHONO : -6.0dB
BALANCED: 0dB
